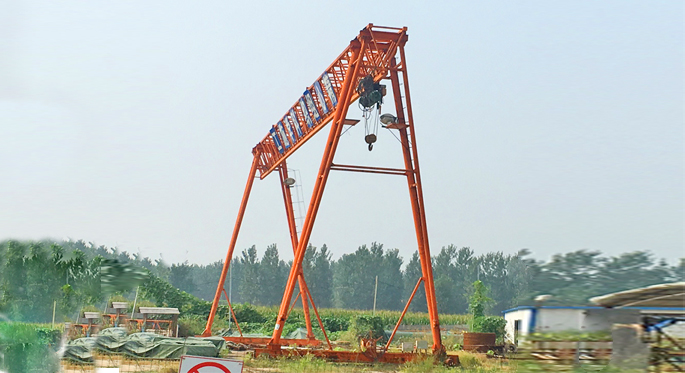

Bridge girder gantry crane

The capacity:

5-320ton

The span:

18-35m

The working grade：

launching gantry is widely used in plants, warehouses, material stocks to lift goods.

Send email Get Quote Now

Product description

Technical Parameters

Company Introduction

Product description

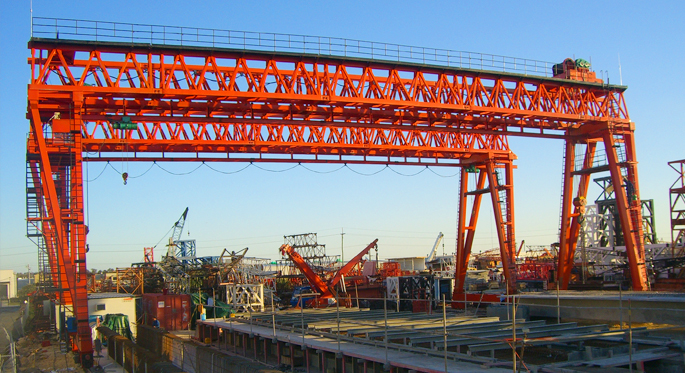

Launcher girder gantry crane is widely used in plants, warehouses, material stocks to lift goods.
Launcher girder gantry crane are made up of bridge, trolley, crane traveling mechanism and electric system.All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work. Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations.

Construction Process:

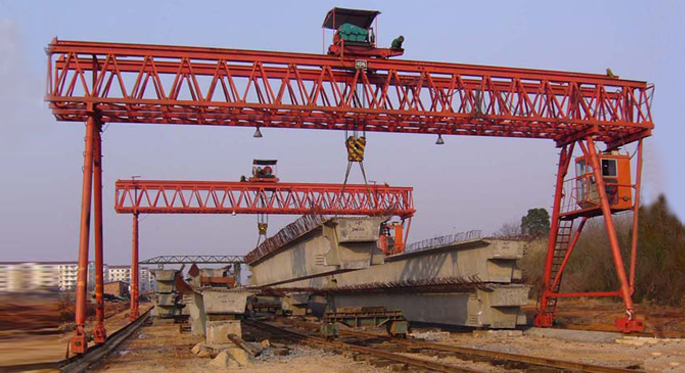

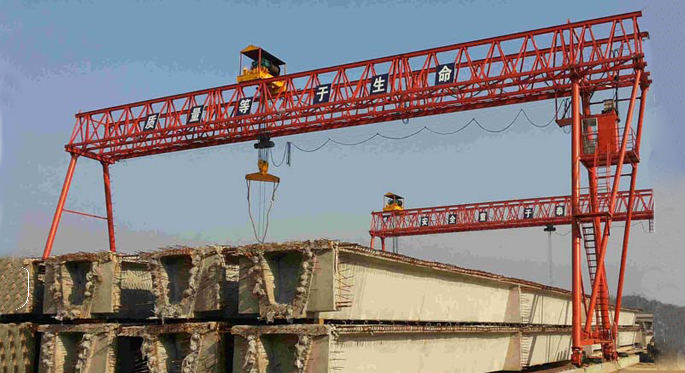

1.U beam precast yard Do U type beam in the beam yard		2.U beam precast yard The precast u beam placed in the beam yard

3.Lifting beam Put precast beam to the transporting girder car		4.Transport The transport car is transporting precast beam to the construction site

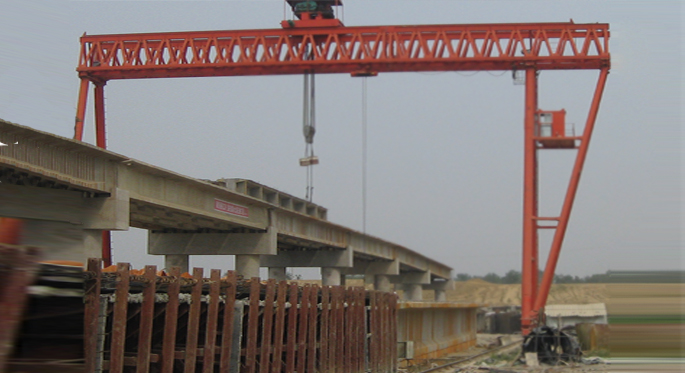

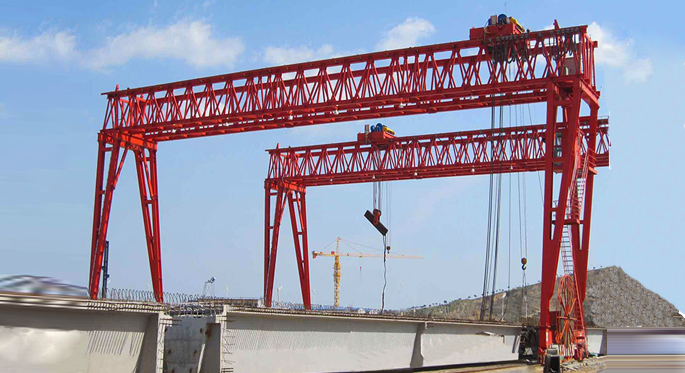

5.Girder erection Using gantry crane lifting beam to pier		6.Beam feeding The car transport beam to beam launcher

7.Beam launcher Trolley lifting the precast beam		8.Beam launcher The beam launcher setting on the beam

Technical Parameters

Item	Unit	Result
Lifting capacity	ton	5-320
Lifting height	m	10-13
Span	m	18-35
Working environment temperture	°C	-20~40
Lifting Speed	m/min	5-17
Trolley Speed	m/min	34-44.6
Cab Speed	m/min	34.5-47.1
Working system		A5
Power source		three-Phase A C 50HZ 380V

Advantages

The trust of more than 1 million enterprises in the world covers dozens of countries such as the United States, Russia, South Korea, Saudi Arabia, The United Arab Emirates, Ukraine, Poland, Vietnam and Indonesia.

Factory inspection

Third party testing

Company Introduction


Integrity and innovation		Quality and service
HY Crane always adhere to the concept of integrity and innovation. Integrity makes the company lay a solid foundation and earn good reputation. Innovation is the inspiration that drives us to develop better and be a world class company.		HY Crane owns its own technology and expertised engineer with abundant experience. We are also equipped with advanced automated machines to improve the quality of our product. Quality and service is always our core competence.

Five years warranty

Free distribution of wearing parts

Provide assemble videos before shipment

Techincal support and field installation
