crane-hook

Hook type:
single or double
Application:
Heavy Industry, General Industry, Automotive Industry
Material:
steel, Steel, Carbon/Alloy steel
The Crane hook is divided into single hook and double hook according to the shape.
Product description
Technical Parameters
Certifications
Product description
Crane hook is simple to manufacture and easy to use, but the load is not good. Most of them are used in working places with a lifting capacity of less than 80 tons; when the lifting capacity is large, double hooks with symmetrical forces are often used. The lamination hook is formed by riveting several steel plates cut and formed. Quality safety factor, static load reaches 3 times. The lifting capacity is from 5 tons to 150 tons.

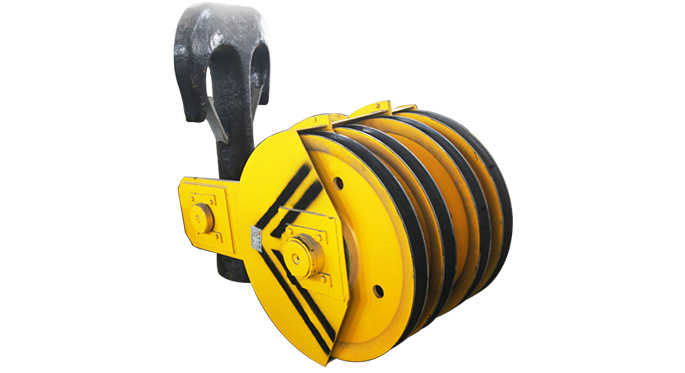

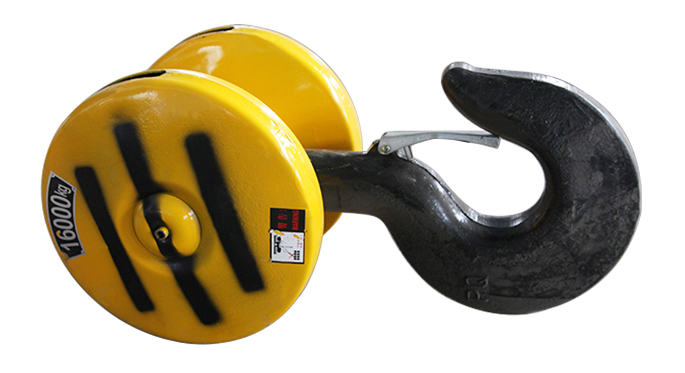

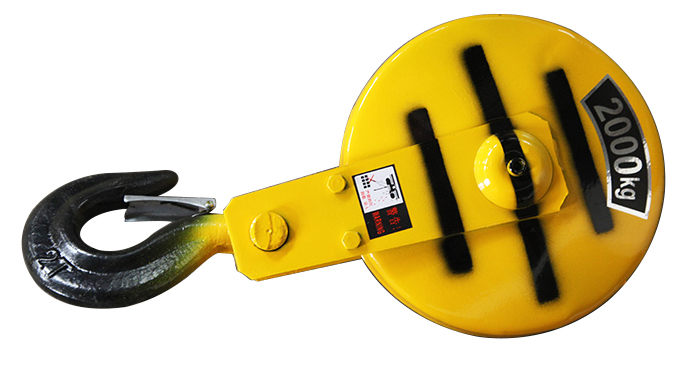

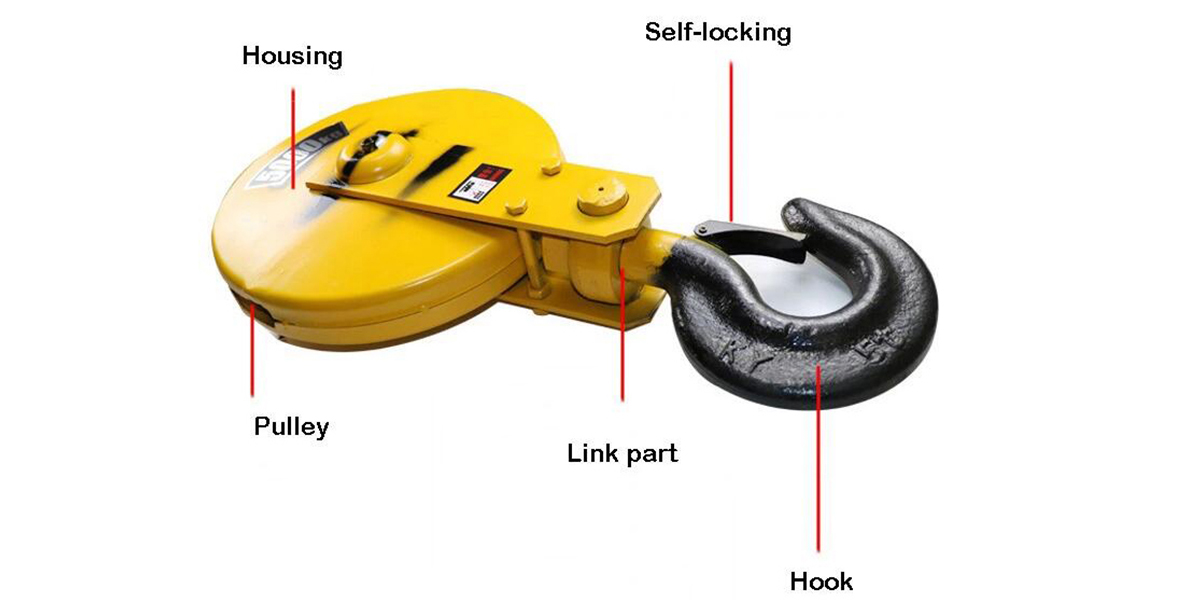

crane hook product details
Technical Parameters
model load(t) hook body pulley pulley dia ratio weight(kg)
G 3.2 20#
16Mn
DG20

HTQTQ235 300/350 2 70
5 430/450 2 128
10 430/450 3 230
16 565 3 377
20 565 4 489
32 680 4 835
50 785 5 1346
75 920 5 2500
80 920 5 3265
100 920/1120 5 4964
100 double 890 6 4425
160 double 822/1010 8 5629
200 double 1180 8 8500

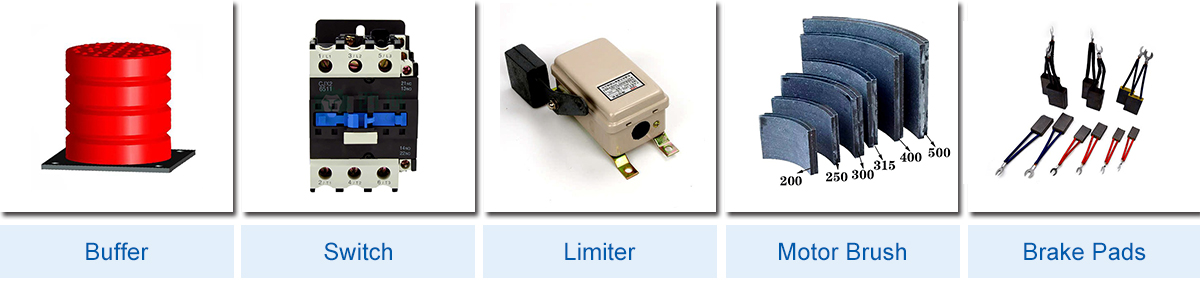

Free Spare Parts
crane hook parts
