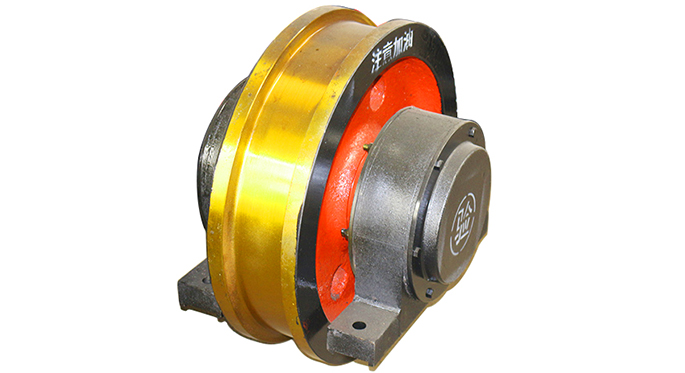

crane wheel

Quenching Depth:
no less than 20mm
Material:
4140/SCM440/42CrMo,ssw-QIR/65#steel,65Mn,50SiMn,QT800
Dimension:
φ250, φ350, φ400, φ500, φ600, φ700, φ800, φ 1000, φ 1200 or as your require
Product description
Technical Parameters
Certifications
Product description

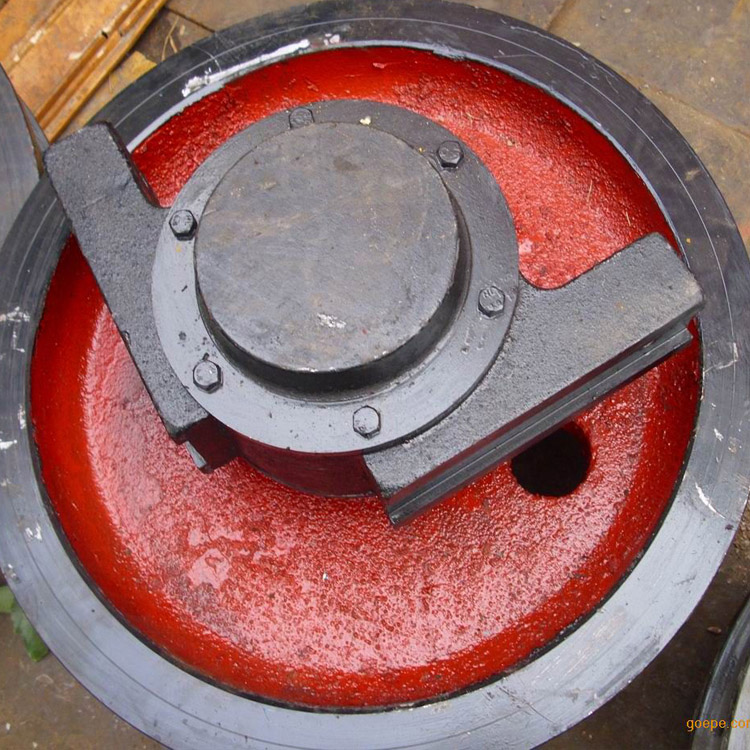

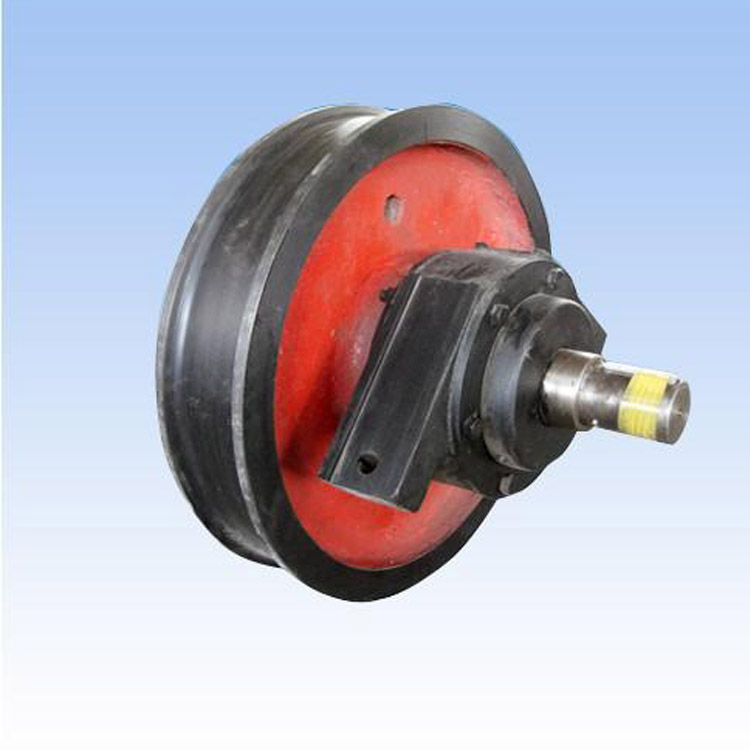

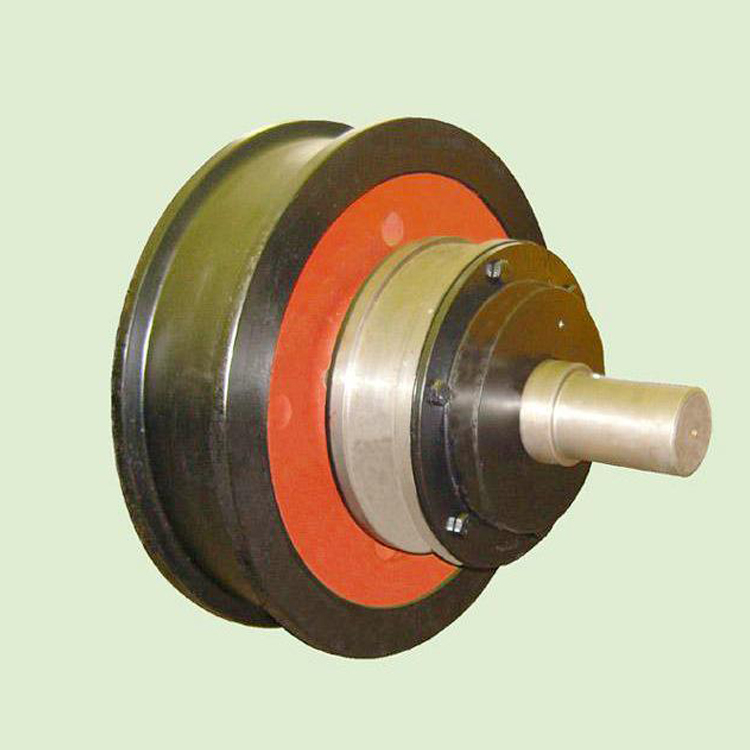

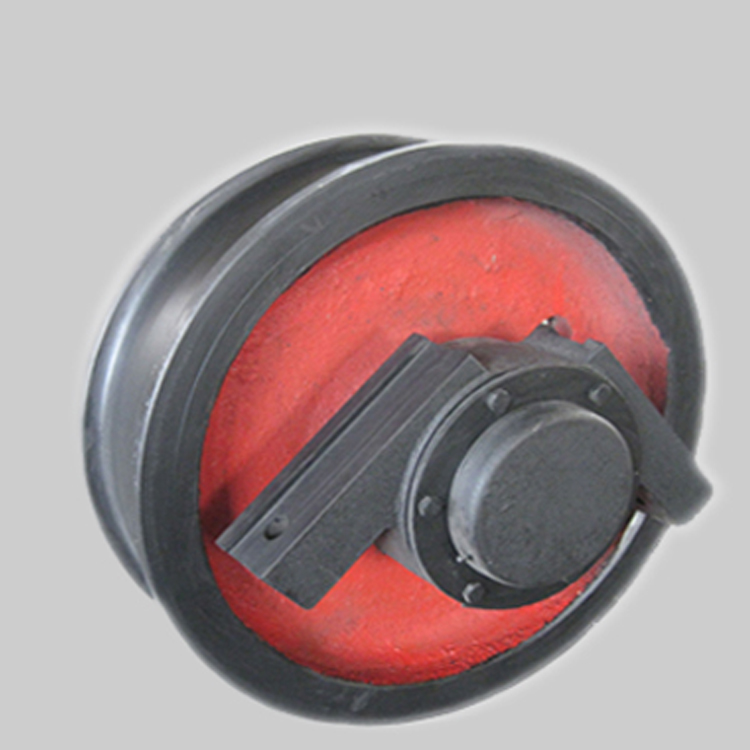

Casting Wheel

1. Material: cast steel or cast iron;

2. Constitute: two wheels, one axle, four bearings, and other parts;

3. Loading capacity: 1-300 tons, can be customized.

4. The type of the wheels: single flange wheel, double flange wheel, hollow wheel sets and solid wheel sets;

5. The diameter of the wheels: 300mm, 350mm, 400mm, 450mm;500mm; 900mm, 1200mm, etc. Or as your demands.

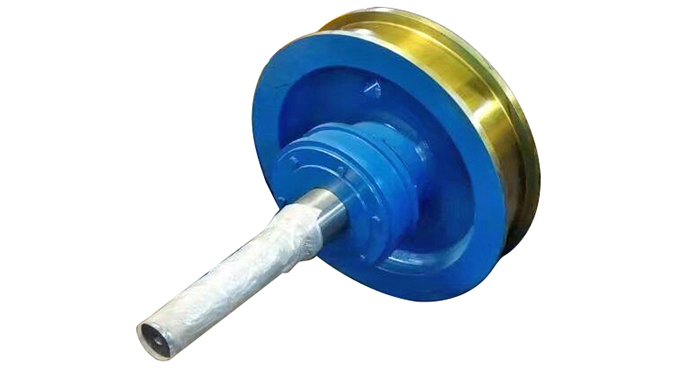

Forged wheel

1. The material generally is 50SiMn and 42CrMo.

2. The processing method is Casting or Forging.

3. The heattreatment is quenching or hardening and tempering.

4. UT certificate available.

5. Hardness test is available.

5. Customized crane wheels meet differrent requirements.



Brief introduction:
These wheel assembly are technically advanced and successfully

used in different industries like (Steel Plant, Rolling Mill, Cement Plant, Fertilizer Plant, Paper Mill, Chemical Industries etc.)

Forged Crane Wheels are available in Crane potation hardness up to 40 HRc including our standard heat treatments.

Application:
Wheel is used to support cranes and load, and in orbit to make crane moving back and forth to run the device.
Major damage in the form of wheel wear and pitting crushed hardened layer.
The material:
ZG430-640 cast steel, 60#,65 #, 65Mn, 42CrMo or according to your demand.
Processing technic:
In order to improve strength and wear-resistant surface of the wheel life, tread surface heat treatment should be to require the surface hardness of HB300-380.
Technical Parameters
OOUHU-: FLANGtil) WMt:f:L R.ATWHHhL 1) 1)1 d B H2
EBN200A EBN200B 200 240 50-80 80 50
l;BN250A l; 250B 250 300 50-100 100 75
KBN300A HBN300B 300 350 80-110 US 80
I-BN350A l;UN350B 350 400 100-125 125 100
F.BN400A BBN400B 400 450 110-130 125 100
l;liN450A [ N450B 450 500 120-150 150 no
EBN500A KBN500B 500 550 130-160 170 115
I-BN560A [:[iN560B 560 610 140-170 200 125
EBN630A RBX630B 630 680 150-180 200 125
I:BN710A HUN710B 710 760 160-230 200 140
EBNSOOA KBN800B 800 850 170-250 210 145
l:IJNS50A HUN850B 850 900 180-250 210 145
UBN900A EBN900B 900 950 190-250 210 145
1-BN950A KUN950B 950 1000 200-250 210 145
KBNIOOOA EBNMOOOB 1000 1050 200-280 220 145
