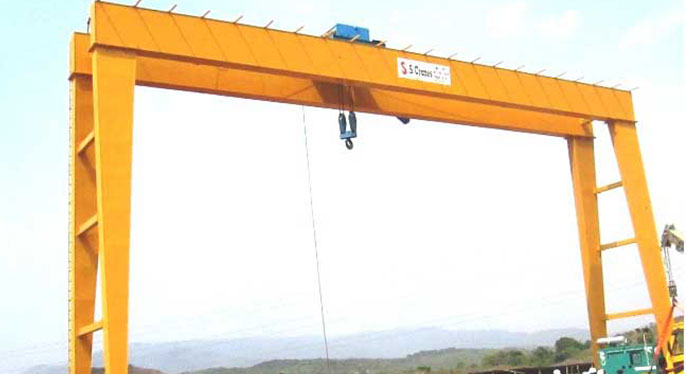

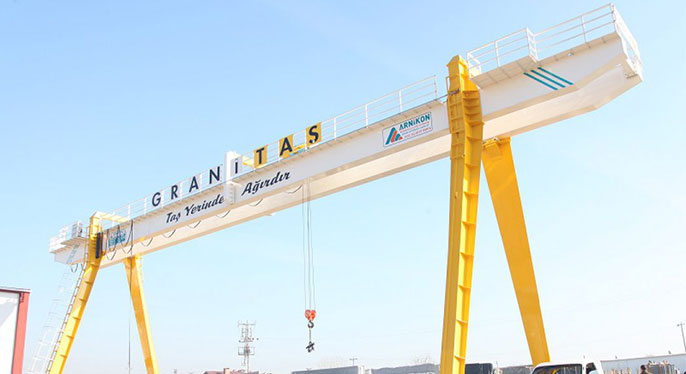

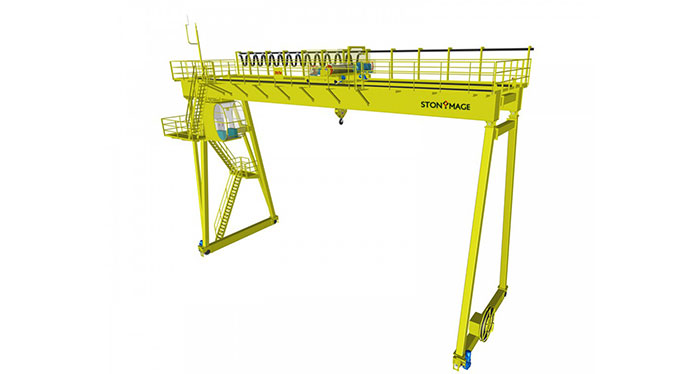

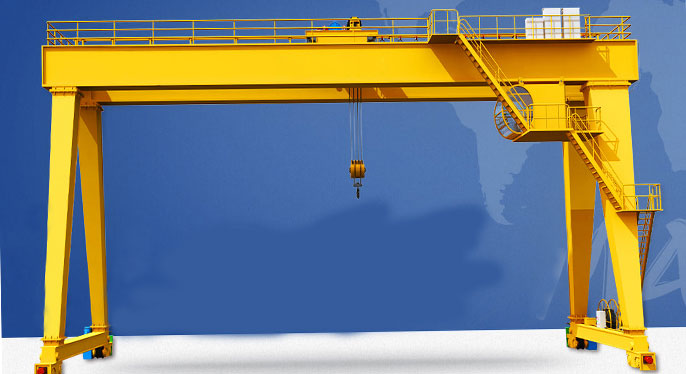

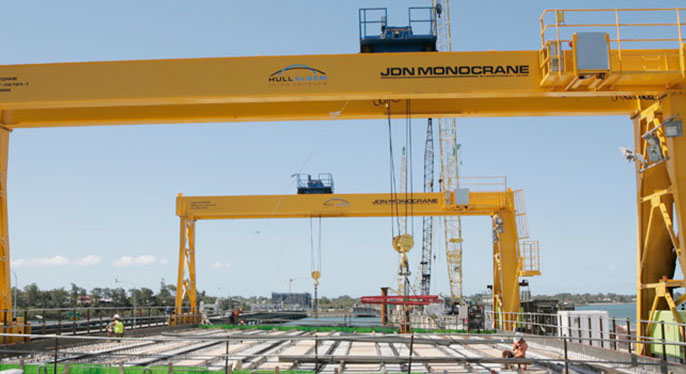

Europe type double girder gantry crane
Europe type double girder gantry crane
Europe type double girder gantry crane
Europe type double girder gantry crane
Europe type double girder gantry crane
Europe type double girder gantry crane
Europe type double girder gantry crane
Europe type double girder gantry crane
Europe type double girder gantry crane
Europe type double girder gantry crane

Europe type double girder gantry crane

The capacity:
5-320ton
The span:
18-35m
The working grade:
A5
Europe type double girder gantry crane is made up of beam, trolley, crane traveling mechanism and electric system. Europe type double girder gantry crane utilized for medium to heavy fabrication.
Product description
Technical Parameters
Certifications
Product description
Europe type double girder gantry crane is made up of beam, trolley, crane traveling mechanism and electric system. Europe type double girder gantry crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required. All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work. Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations.

Europe type double girder gantry crane is widely used in plants, warehouses, material stocks to lift goods, and also can work with various special-purpose hoist in special operations.
The capacity: 5-320ton
The span : 18-35m
The working grade : A5
The working temperature: -20℃ to 40℃

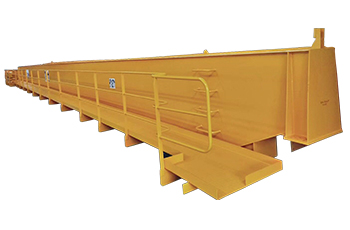

main beam

main beam

1.with strong box type and standard camber     2.there will have reinforcement plate inside the main girder

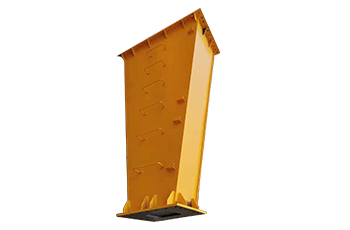

crane leg

1.supporting effect    2.ensure safety and stability    3.improve the lifting characteristics

crane leg

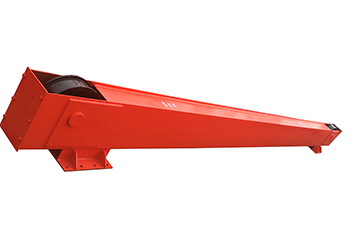

ground beam

ground beam

1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

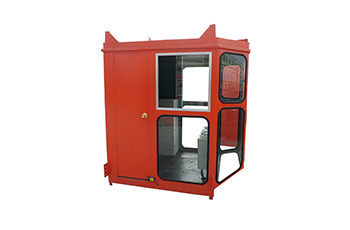

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

crane cabin

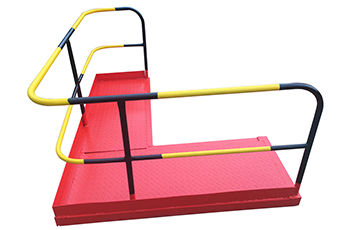

ladder platform

ladder platform

1.Integrated welding ladder    2.mainly used for product repair

crane trolley

1.high working duty hoist mechanism      2.working duty:A5      3.capacity:5-320t

crane trolley
Technical Parameters
Item Unit Result
Lifting capacity ton 5-320
Lifting height m 10-13
Span m 18-35
Working environment temperature °C -20~40
Lifting Speed m/min 5-17
Trolley Speed m/min 34-44.6
Cab Speed m/min 34.5-47.1
Working system   A5
Power source   three-Phase A C 50HZ 380V
Free Spare Parts
europe type double girder gantry crane partsWe can supply all these crane spare parts freely for five years!
