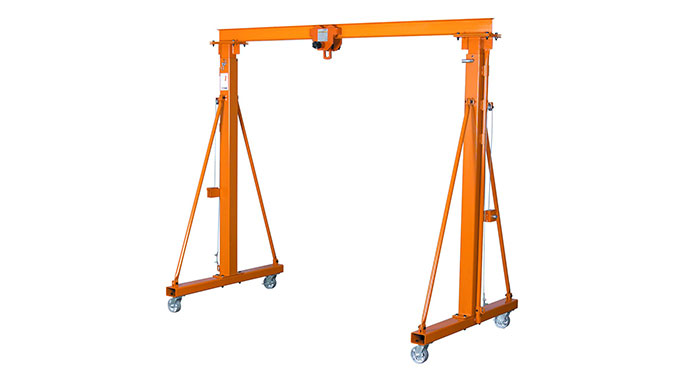

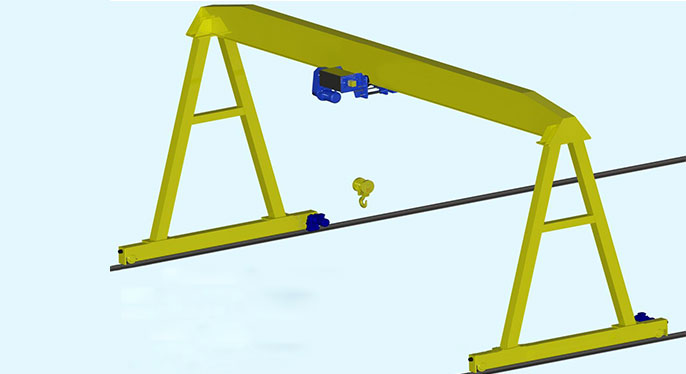

Europe type single girder gantry crane
Europe type single girder gantry crane
Europe type single girder gantry crane
Europe type single girder gantry crane
Europe type single girder gantry crane
Europe type single girder gantry crane
Europe type single girder gantry crane
Europe type single girder gantry crane
Europe type single girder gantry crane
Europe type single girder gantry crane

Europe type single girder gantry crane

The capacity:
3.2-32ton
The span:
12-30m
The working grade:
A5
Europe type single girder gantry crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required. Europe type single girder gantry crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
Product description
Technical Parameters
Certifications
Product description
Europe type single girder gantry crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required. Europe type single girder gantry crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.

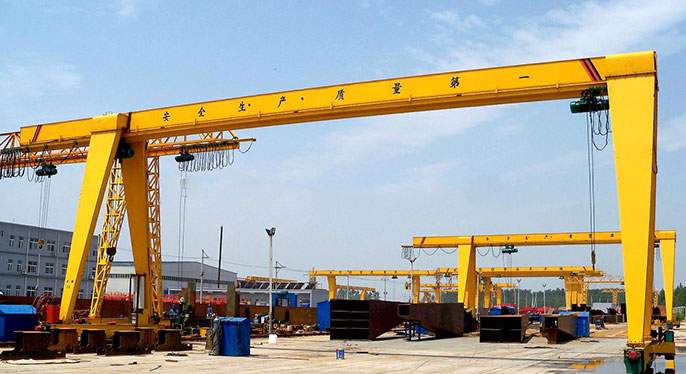

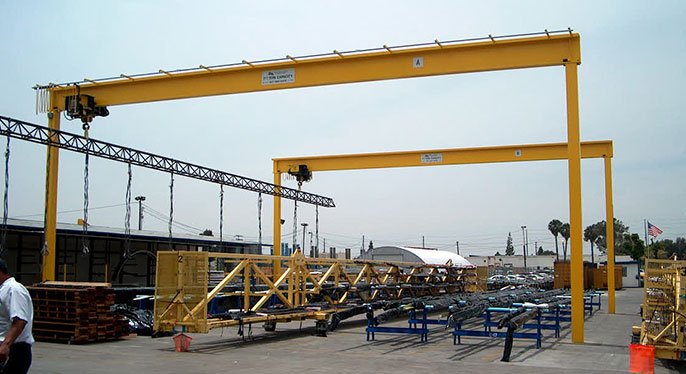

Europe type single girder gantry crane is a regular crane widely used at open ground and warehouses to load. unload or grab materials.
The capacity:3.2-32ton
The span : 12-30m
The working grade : A5
The working temperature:-20℃ to 40℃


ground beam

1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

crane leg

1.supporting effect    2.ensure safety and stability    3.improve the lifting characteristics

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

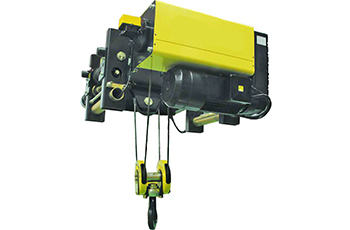

crane hoist

1.Can be single lifting speed or dual lifting speed model    2.realize lifting and cross travel functions.

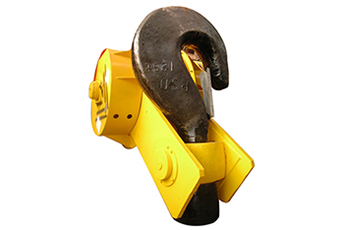

crane hook

1.material:DG20,16Mn,20MnSi,30MnSi    2.grade:m,p,t    3.capacity:3.2-32t

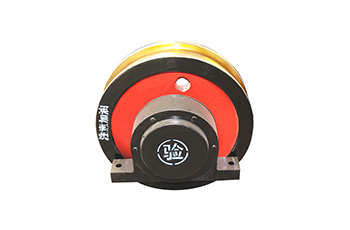

crane wheel

1.Material: ZG55,ZG65,ZG50SiMn or on request    2.wheel diameter: Φ250mm-Φ800mm.

Technical Parameters
Item Unit Result
Lifting capacity ton 3.2-32
Lifting height m 6   9
Span m 12-30m
Working environment temperature °C -20~40
Travelling speed m/min 20
lifting speed m/min 8   0.8/8       7  0.7/7       3.5       3
Lifting crossing speed m/min 20
working system   A5
power source   three-phase 380V 50HZ

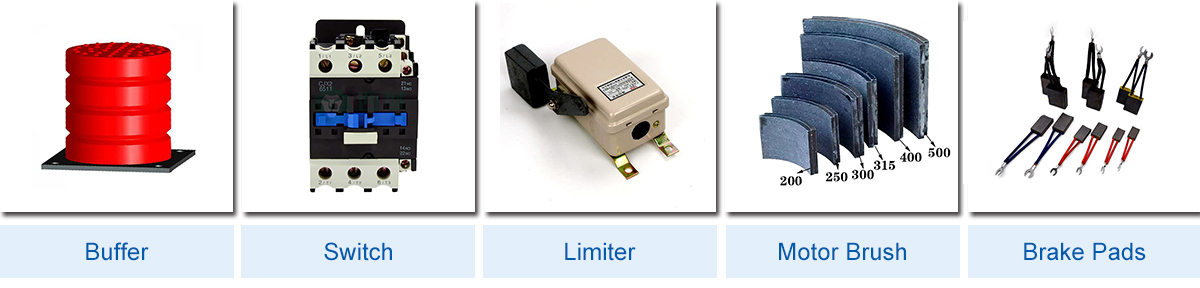

Free Spare Parts
We can supply all these crane spare parts freely for five years!
