Double girder semi-gantry crane
Double girder semi-gantry crane
Double girder semi-gantry crane
Double girder semi-gantry crane
Double girder semi-gantry crane
Double girder semi-gantry crane
Double girder semi-gantry crane
Double girder semi-gantry crane

Double girder semi-gantry crane

The capacity:
5-50ton
Span length:
10-20mtrs
Working grade :
A5

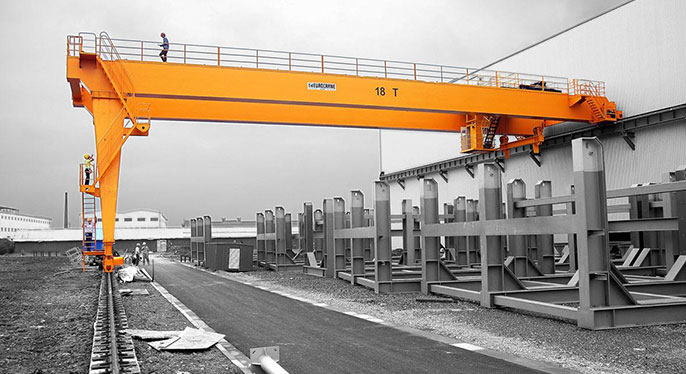

BMG type double beam semi gantry crane is used together with Trolley. It is track travelling small and medium sized crane. Its proper lifting capacity is 5 to 50 tons. proper span is 10 to 20 meters, Its proper working temperature is -20℃to 40℃.
Product description
Technical Parameters
Certifications
Product description
BMG type double beam semi gantry crane is used together with Trolley. It is track travelling small and medium sized crane. Its proper lifting capacity is 5 to 50 tons. proper span is 10 to 20 meters, Its proper working temperature is -20℃to 40℃.

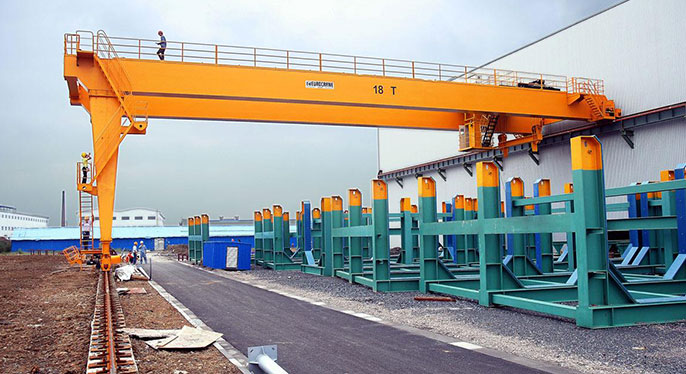

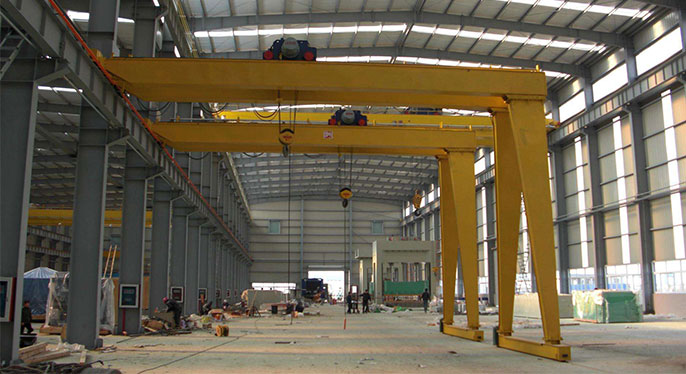

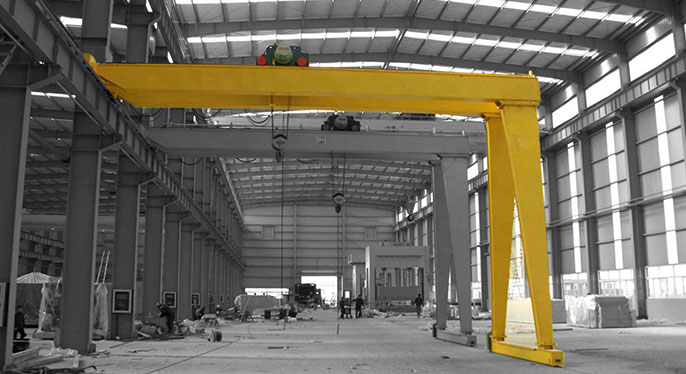

Semi gantry crane has wide range of application, which is mainly used for loading and unloading in open space and warehouses, and it basically has two operation forms that are ground handling and cab operation. It is called as semi gantry crane because one side of the main girder is mounted on the tracks of the edge of workshop rather than supported by general supporting legs.

Compared with other semi gantry crane manufacturers, Haoyu Group has many advantages in the production and manufacturing of semi gantry crane, such as long production history, rich manufacturing experience and favorable semi gantry crane price. Except for semi gantry crane, we also offer single girder overhead crane, jib crane, electric winches for sale, scissor lifting platform, tower crane, gantry crane, electric transfer cart etc.



  • It is ideal for outdoor applications where lifting facilities are provided, without the cost of a building or any supporting steelwork.
  • Lifting capacity: 5-50ton
  • Span length: 10-20mtrs
  • Lifting height: 6/9mtrs
  • Working duty: A3
  • Power: AC 3Ph 380V 50Hz or according to client's requirement
  • Control mode: Cabin control/remote control/control panel with pendant line

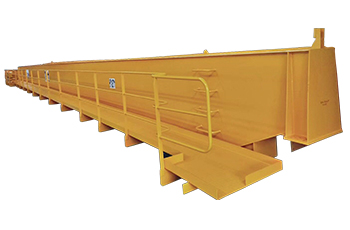

main beam

1.with strong box type and standard camber     2.there will have reinforcement plate inside the main girder

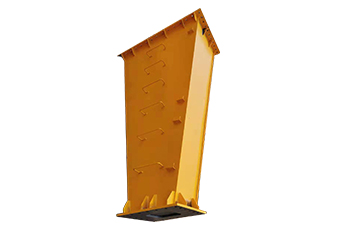

crane leg

1.supporting effect    2.ensure safety and stability    3.improve the lifting characteristics

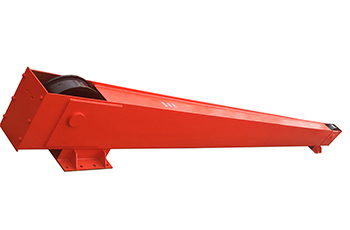

ground beam

1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

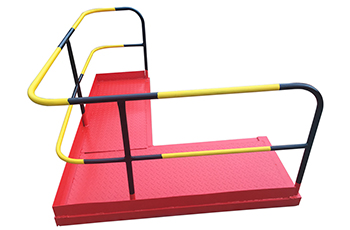

ladder platform

1.Integrated welding ladder    2.mainly used for product repair

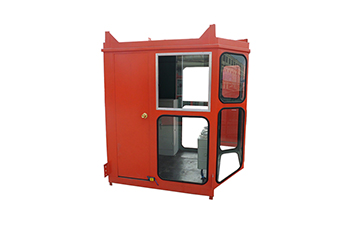

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

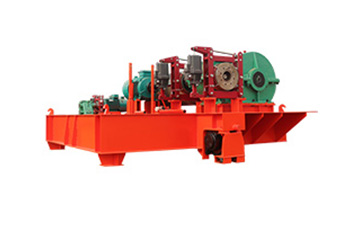

crane trolley

1.high working duty hoist mechanism    2.working duty:A3    3.capacity:5-50t

Technical Parameters
Item Unit Result
Lifting capacity ton 5-50
Lifting height m 6   9
Span m 10-20
Working environment temperture °C -20~40
Travelling speed m/min 20      30      40
lifting speed m/min 8   0.8/8          7  0.7/7
working system   A3
power source   three-phase 380V 50HZ
Free Spare Parts
We can supply all these crane spare parts freely for five years!
