Hydropower gantry crane
Hydropower gantry crane
Hydropower gantry crane
Hydropower gantry crane

Hydropower gantry crane

The capacity:
5-63t
Span length:
18-35m
Lifting height:
3-30m
The Hydro-power gantry crane is the crane which use the A-frame to support and keep it standing on the rail track of ground and bases.It could travel along the rail track and train and cars could through under the A-frame.
Product description
Technical Parameters
Certifications
Product description

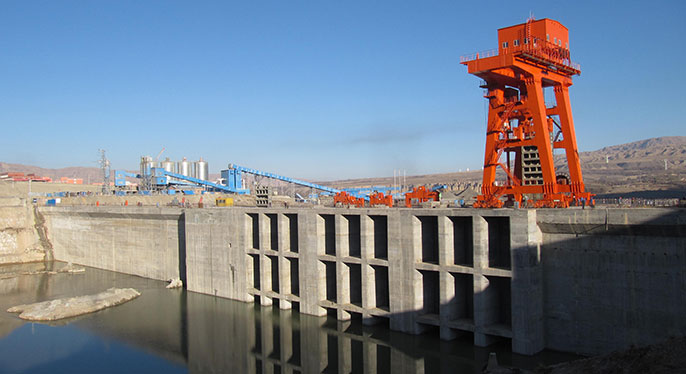

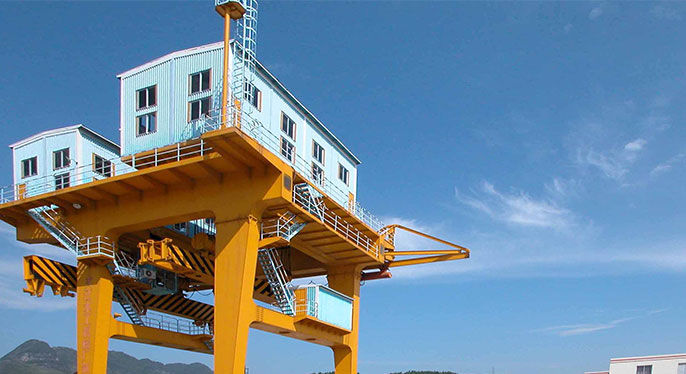

Hydropower station gantry crane is the crane which use the A-frame to support and keep it standing on the rail track of ground and bases.It could travel along the rail track and train and cars could through under the A-frame.Portal crane have hoisting,slewing,luffing traveling mechanism,there are lift and
tilt frame beam or combination beam and control room on the spiral parts.The Hydro-power gantry crane has some additional device:belt conveyor to improve the working capacity rate of the crane. There are also motor protection device,overload stopper device and crane rail clamp etc.safety device.
Features:
1.Widly used in hydropower station, river and water conservancy facilities.
2.Especially for FLAT/SLUICE GATE hoisting and lowering.
3.Single or double lifting points on optional.
4.Hoisting slings is wire rope, pulley block falling from drums;
5.Electric motorized, Centralized drive or individual drive.
6.Manual drive assemblied when electric fail.
7.Overload limiter, height indicator are all included. etc.



crane motor

1.YZR,YZP are all provided   2.power:1.8-280Kw   3.number of pole-pairs:4,6,8,10

reducer

1.type:250,350,400,500,650,750,850,1000         2.ratio:8.23-317.28

ground beam

1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

ladder platform

1.Integrated welding ladder    2.mainly used for product repair

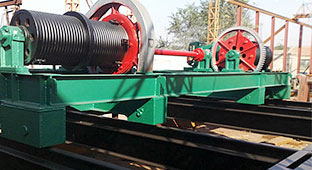

crane trolley

1.high working duty hoist mechanism    2.working duty:A3-A7    3.capacity:5-63t

Technical Parameters
Item Unit Specification
Lifting Capacity t 5-63
Span m 18-35
Lifting height m 3-30
lifting speed m/min 1-20
Total Power kw 64
Steel Track Recommended kw Qu80
Max. Wheel Load KN 577
Power Service   3-Phase A.C.50HZ 380V
Working class   A3-A7
Lifting machanism   winch trolley or hoist trolley
Free Spare Parts
We can supply all these crane spare parts freely for five years!
