Deck crane

SWL:

1-100T

Length of jib:

10-100m

Hoisting height:

1-140m

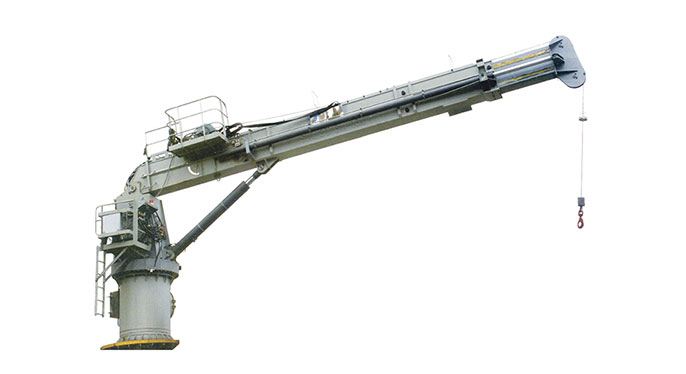

The Marine series is a crane that is fitted with a special base for an easy and fixed installation on any kind of vessel, central controls and distributor disjoint from the structure.

Send email Get Quote Now

Product description

Technical Parameters

Company strength

Product description

The Marine series is a crane that is fitted with a special base for an easy and fixed installation on any kind of vessel, central controls and distributor disjoint from the structure.
There is a procedure that is included in a twocomponent epoxy base coat 40,50 micron thick. It also has two coats of enamel and finish with a 60/80/ micron layer of two component polyurethane. The unit has a base and secondary jack rods that has a tempered chemical nickel plating of 50 micron and chrome plating of 100 c. There is a double chrome plating on its extension jack rods and rotation cylinders.Marine Ship Deck Hydraulic Jib Crane introduction

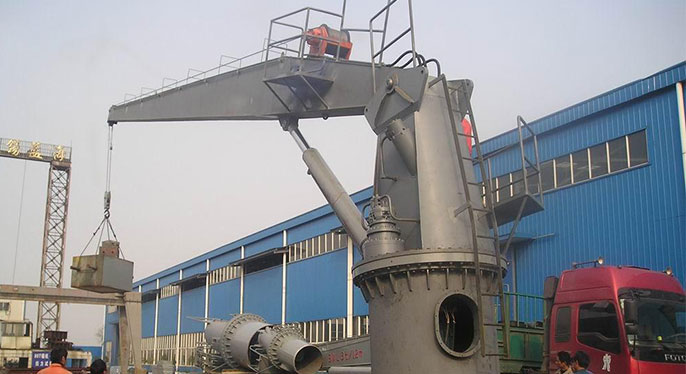

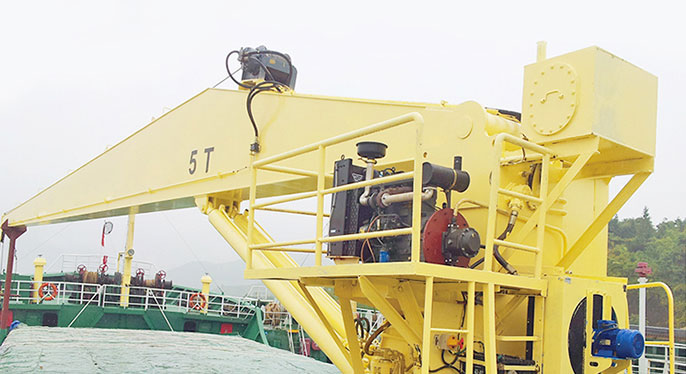

The crane is a hydraulic slewing and luffing crane ,for lifting a variety of marine debris and marine life,loading and unloading cargo or other special purposes.
Marine Hydraulic Slewing crane is composed by the cylinder , the fuel tank,crane hoisting mechanism and jib luffing mechanism . And lifting ,rotating,jib luffing are driven by hydraulic system.

production process:


Cut	Welding	Jib	Column

Sandblasting	Anti-corrosive primer	Painting	CCS certification

Product type:

Technical Parameters

Item	Unit	Result
Rated load	t	0.5-20
Lifting speed	m/min	10-15
swing speed	m/min	0.6-1
lifting height	m	30-40
rotary range	º	360
working radius		5-25
amplitude time	m	60-120
allowing inclination	trim.heel	2°/5°
power	kw	7.5-125
