travel lift

The capacity:

100~900t

Lifting speed:

0~5m/min

Working temperature:

-20 ℃~+50 ℃

Send email Get Quote Now

Product description

Technical Parameters

Company Introduction

Product description

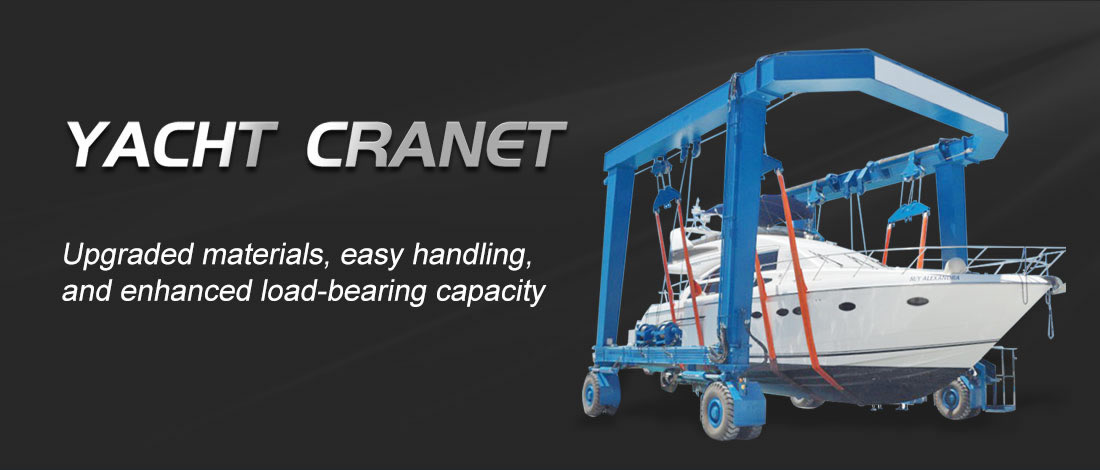

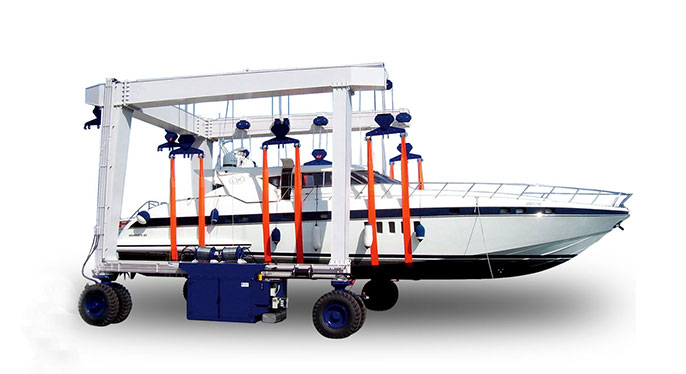

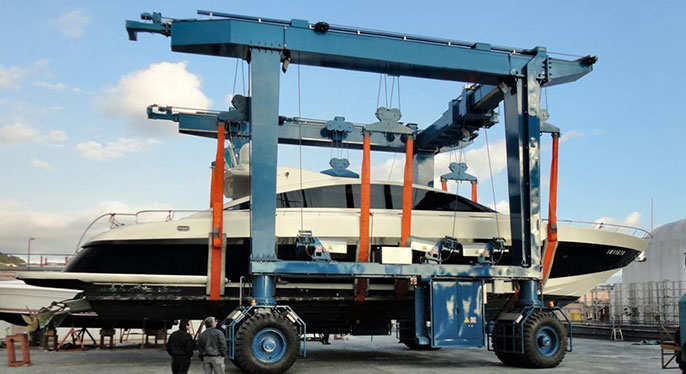

Travel Lift includes the following items: main structure, traveling wheel block, hoisting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type ,it can transfer the boat which the height surpass its height.

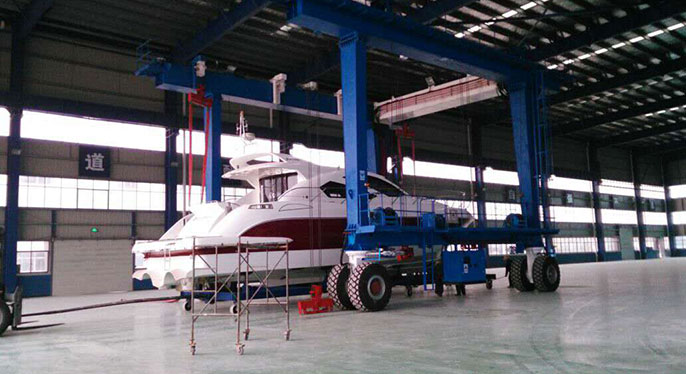

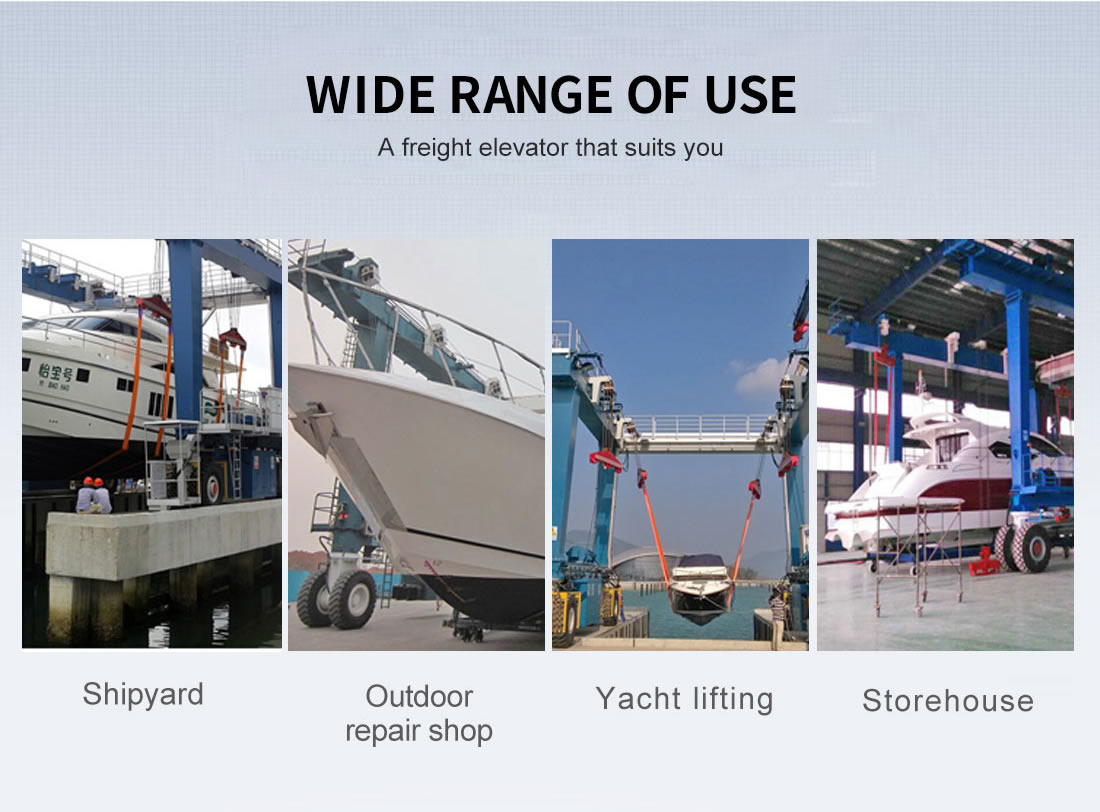

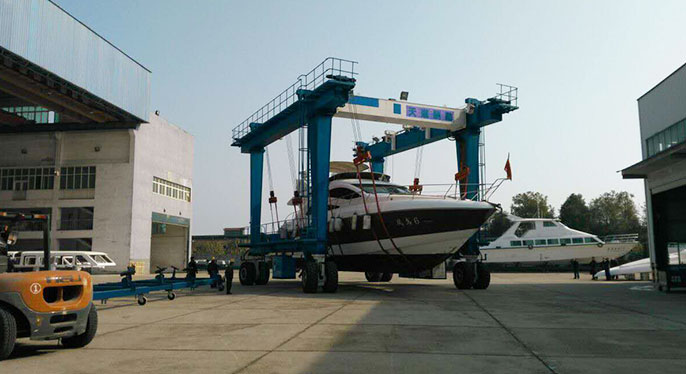

According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-500T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.
It also can put the boat in sequence quickly with small gap between each two boats.Electrical system uses PLC frequency adjustment which can easily control every mechanism.Control Methods: Cabin control / remote control or Cabin control + remote control.

Specifications :

1. Capacity: 100~900t

2. Ground specific pressure: 6.5~11.5kg/cm²

3. Grading ability: 2%~4%

4. Lifting speed: Full load: 0~2m/min; Non-load: 0~5m/min

5. Running speed: Full load: 0~20m/min; Non-load: 0~35m/min

6.Working ambient temperature: -20 ℃~+50 ℃

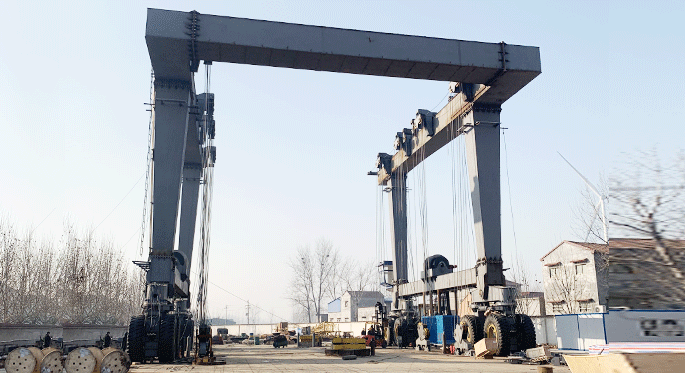

The door frame have single main type and double girder type two kinds of for reasonable use of material,the main variable cress-section of the optimization		Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.
	It can realize12 walking funcyions as straight line,transverse line, in-place rotayion and Ackerman turning ect.		The high-strength frame is by high-quality profile,and the high- quality cold rolling plate is finished by the CNC machine.
Lifting mechanism adopts the load-sensitive hydraulic system, the lifting point distance can be adjusted to keep the simultaneous lifting of multi-lift points and output.		Electrical system uses PLC frequency adjustment which can easily control every mechanism.

Technical Parameters

SWL(Kg)	Span (m)	Lifting Height (m)	Crab Travel(m/min)	Lifting Speed (m/min)	Steering mode	Steering angle
5000+5000 (2m)	12	6/9	10/15/20m/min	8, 8/0.8 Standard Speed	Hydraulic-2 Hydraulic-4	0-20° 0-30° 0-90°
	16
	20
10000+10000 (2m)	12	6/9		7, 7/0.7 Standard Speed
	16
	20
20000+20000 (2m)	12	6/9		3.5, 3.5/0.35 Standard Speed
	16
	20
32000+32000 (1Am)	12	6/9		3.5, 3.5/0.35 Standard Speed
	16
	20
50000+50000 (1Am)	12	6/9		4 Standard Speed
	16
	20

Advantages

The trust of more than 1 million enterprises in the world covers dozens of countries such as the United States, Russia, South Korea, Saudi Arabia, The United Arab Emirates, Ukraine, Poland, Vietnam and Indonesia.

Factory inspection

Third party testing

Company Introduction


Integrity and innovation		Quality and service
HY Crane always adhere to the concept of integrity and innovation. Integrity makes the company lay a solid foundation and earn good reputation. Innovation is the inspiration that drives us to develop better and be a world class company.		HY Crane owns its own technology and expertised engineer with abundant experience. We are also equipped with advanced automated machines to improve the quality of our product. Quality and service is always our core competence.

Five years warranty

Free distribution of wearing parts

Provide assemble videos before shipment

Techincal support and field installation
