Electromagnetic overhead crane

The capacity:

3.2-32ton

The span :

10.5-31.5m

Working grade :

Send email Get Quote Now

Product description

Technical Parameters

Company Introduction

Product description

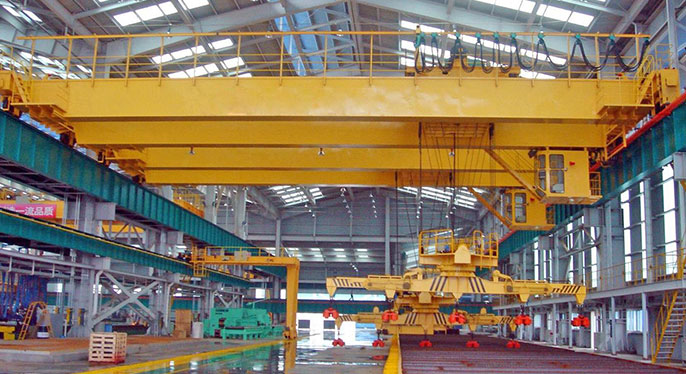

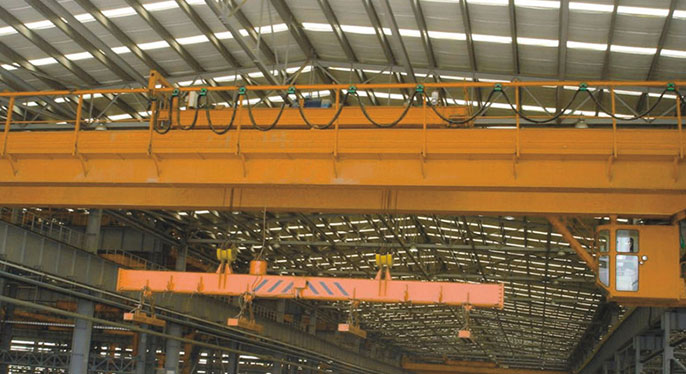

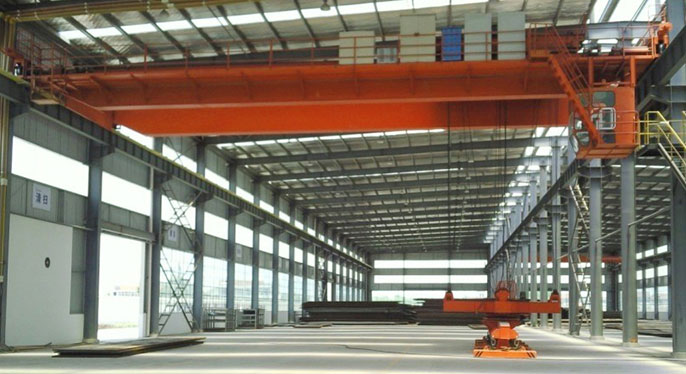

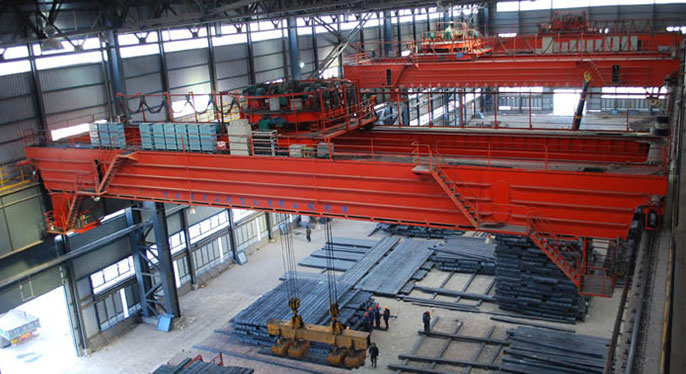

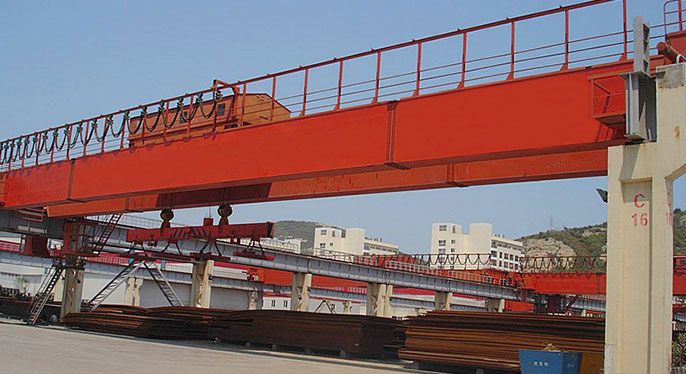

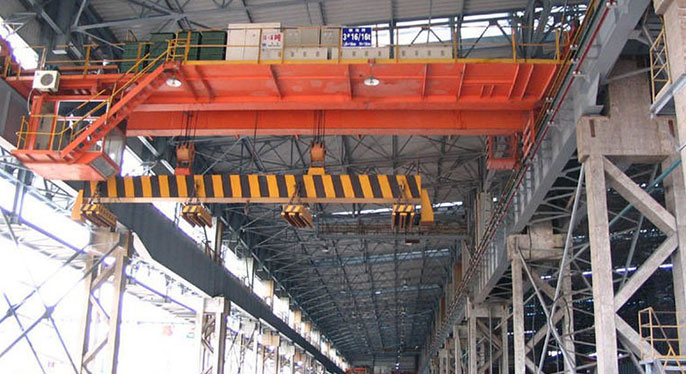

Electromagnetic overhead crane is often equipped with removable electromagnetic disk, which is suitable for the loading and unloading of heavy duty magnetic properties, such as steel ingot, steel, iron etc. It can work well in all kinds of indoor or outdoor machinery factory, warehouse and workshops, which basically belongs to heavy duty lifting equipment.

Electromagnetic overhead crane mainly consists of five parts, which are the bridge frame, trolley traveling mechanism, small car, electrical equipment and electromagnetic disk. All the lifting works are finished in the operation cabin, and it is also equipped with rain-proof equipment to guarantee the smooth operation and protect double girder magnetic crane from getting damaged in rainy days.

Electromagnetic overhead crane basically has the same structure with grab bridge crane except that there is a electromagnetic sucker suspended on the hook, which caters to metal and magnetic property goods transferring works. It is usually used to lift black metal and its generated goods by the control of high voltage and high current circuit with low-voltage and low current, which has small electric shock risk coefficient.

It has convenient operation and control cabin, and it is easy for users to accomplish the whole lifting works. The main advantages of electromagnetic crane are high efficiency, high safety standard and easy operation.

The capacity:3.2-32ton
The span : 10.5-31.5m
The working grade : A6
The working temperature:-25℃ to 40℃

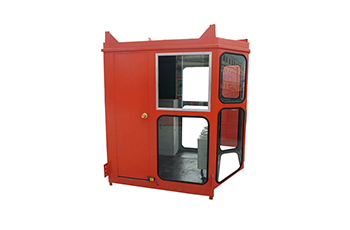

	crane cabin 1.close and open type 2.air-conditioning provided 3.interlocked circuit breaker provided

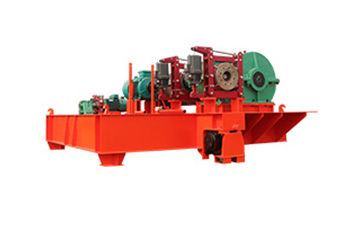

crane trolley 1.high working duty hoist mechanism 2.working duty:A3-A8 3.capacity:3.2-32t

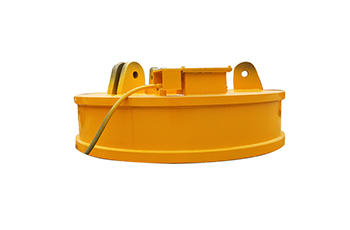

	crane magnet 1.For lifting steel scrap ,billet&slab,high speed wire&coiled bar,,bundled rebar&profiled steel,rebar&steel pipe 3.capacity:3.2-32t

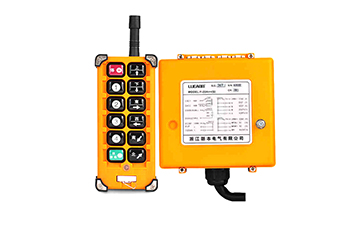

remote controller 1.apollo,HBC,WICONTEK,telecrane 2.2/4/6/8/10/12keys for choosing 3.voltage:as required

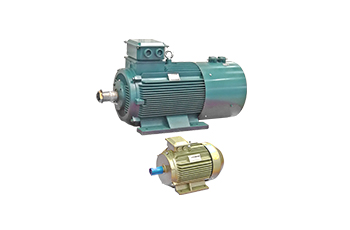

	crane motor 1.YZR,YZP are all provided 2.power:1.8-280Kw 3.number of pole-pairs:4,6,8,10

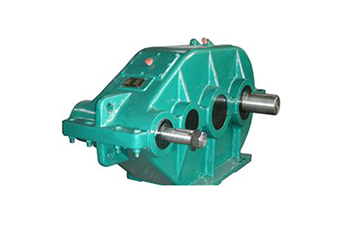

reducer 1.type:250,350,400,500,650,750,850,1000 2.ratio:8.23-317.28

Technical Parameters

Item	Unit	Result
Lifting capacity	ton	3.2-32
Lifting height	m	1-20
Span	m	10.5-31.5
Working environment temperature	°C	-25~40
Hoisting Speed	m/min	20
Trolley Speed	m/min	112.5
Working system		A6
Power source		three-Phase A C 50HZ 380V

Advantages

The trust of more than 1 million enterprises in the world covers dozens of countries such as the United States, Russia, South Korea, Saudi Arabia, The United Arab Emirates, Ukraine, Poland, Vietnam and Indonesia.

Factory inspection

Third party testing

Company Introduction


Integrity and innovation		Quality and service
HY Crane always adhere to the concept of integrity and innovation. Integrity makes the company lay a solid foundation and earn good reputation. Innovation is the inspiration that drives us to develop better and be a world class company.		HY Crane owns its own technology and expertised engineer with abundant experience. We are also equipped with advanced automated machines to improve the quality of our product. Quality and service is always our core competence.
