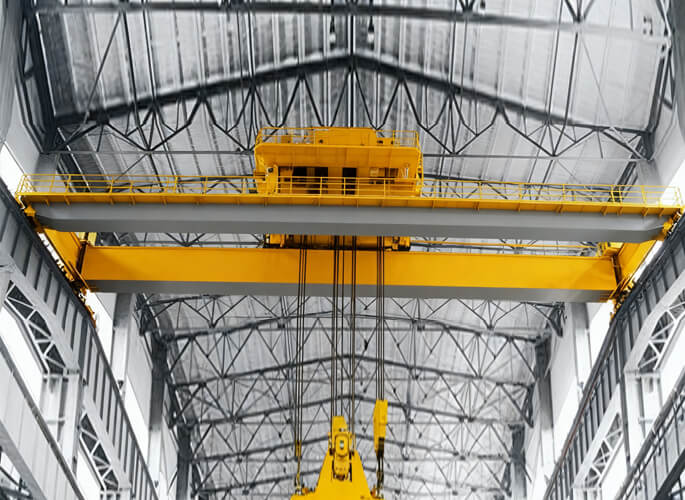

Foundry crane

The capacity:
5-320ton
Span length:
10.5-31.5m
Working grade :
A7
The foundry crane is designed to be operated efficiently, uninterruptedly and safely in continuous use.The design conforms to the requirements of international standards.
Product description
Technical Parameters
Company Introduction
Product description
The foundry crane is designed to be operated efficiently, uninterruptedly and safely in continuous use.The design conforms to the requirements of international standards.
Because of a higher risk level, special safety features are designed for the foundry crane that transport molten metal. The main hoist mechanism includes four independent rope reevings, double service brakes on primary shafts, and backup brake acting on the rope drum. Rope equalizer beams are provided with a dampening unit to slow down equalizer beam tilting in case of wire rope failure. An upper emergency stop limit switch is also used in the main hoist. In addition to this overload protection, the ‘emergency stop’ system bypassed from PLC, derailment supports, main hoist over speed supervision, and end limit switches are automatically standard features of the equipment.

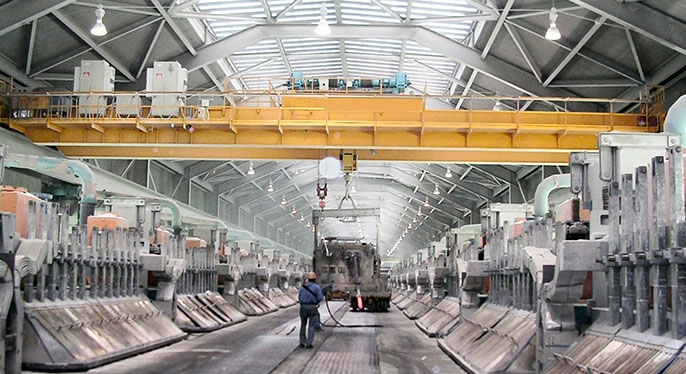

The foundry crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to casting factory.The Foundry crane is the main equipment for steel smelting production.

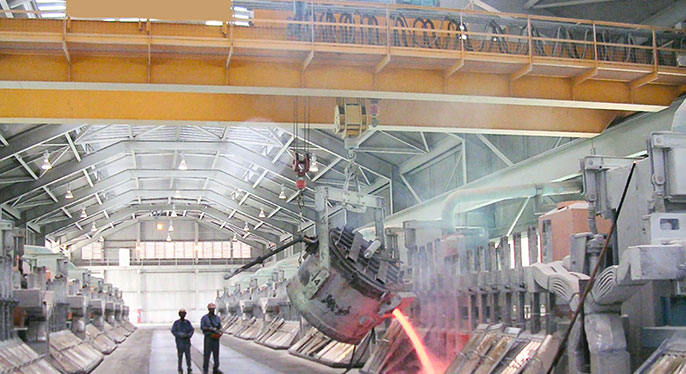

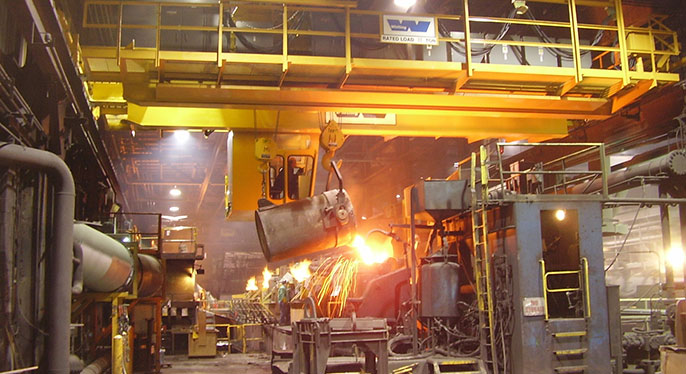

It is used to move steel or iron ladles in steel smelting workshop with high temperature and a lot of dust. Conventional scheme:using the closed cab.

Each organ is H class. And the insulating YZR type motor. working in the highest ambient temperature is 60°C,collocate with the advanced electric the winch is made with the welding's steel board ,the gear box with the detent and the ratchet wheel.
Power: AC 3Ph 380V 50Hz or according to client's requirement.
Control mode: Cabin control/remote control/control panel with pendant line

The capacity:5-320ton
The span : 10.5-31.5m
The working grade : A7
The working temperature:-25℃ to 40℃

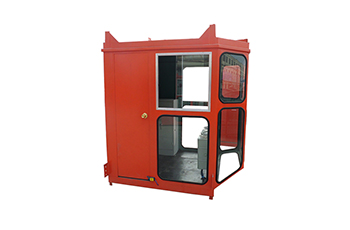

Foundry crane cabin

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

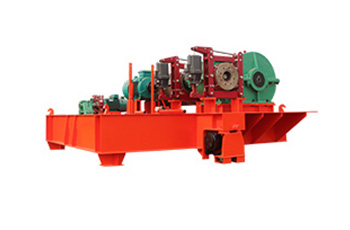

crane trolley

1.high working duty hoist mechanism    2.working duty:A3-A8    3.capacity:5-320t

Foundry crane trolley

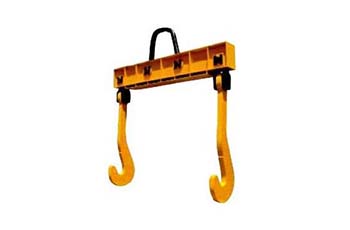

Foundry crane hook

crane hook

1.material:DG20,16Mn,20MnSi,30MnSi    2.grade:m,p,t    3.capacity:5-320t

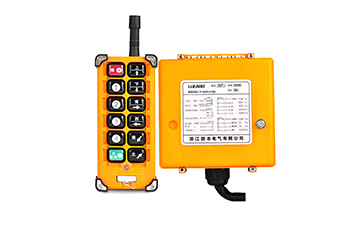

remote controller

1.apollo,HBC,WICONTEK,telecrane    2.2/4/6/8/10/12keys for choosing    3.voltage:as required

Foundry crane remote controller

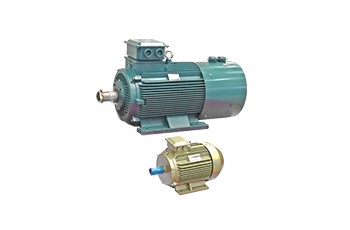

Foundry crane motor

crane motor

1.YZR,YZP are all provided    2.power:1.8-280Kw    3.number of pole-pairs:4,6,8,10

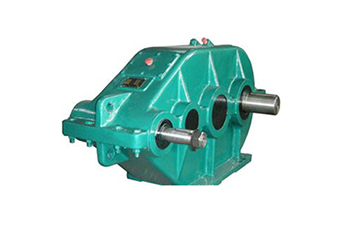

reducer

1.type:250,350,400,500,650,750,850,1000    2.ratio:8.23-317.28

Foundry crane reducer
Technical Parameters
Item Unit Result
Lifting capacity ton 5-320
Lifting height(main/aux) m 18-24/20-26
Span m 10.5-31.5
Working environment temperature °C -25~40
Hook Speed(main) m/min 6.8-10.5
Trolley Speed m/min 67-101.8
Working system   A7
Power source   three-Phase A C 50HZ 380V
