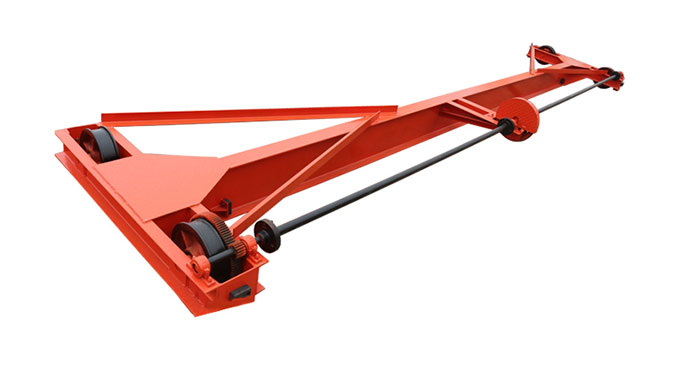

Manual overhead crane

Lifting capacity:
13T
Span length:
7M
Lifting height:
10M
Manual operational single girder crane used for carrying quantity does not greatly and not very efficient and velocity of power, workshop or warehouse equipment maintenance.
Product description
Technical Parameters
Company Introduction
Product description
Manual operational single girder crane used for carrying quantity does not greatly and not very efficient and velocity of power, workshop or warehouse equipment maintenance .
Advantage: Lightly small scaled model.Don't need the power control. Applicability good, cost cheap and so on. Because of the advantages, it has been widely used in no power of workplaces.

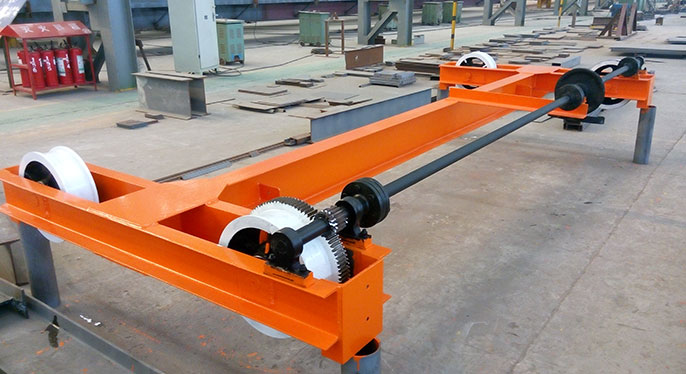

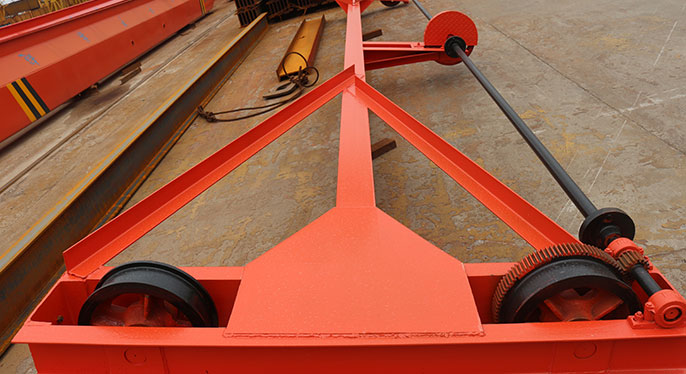

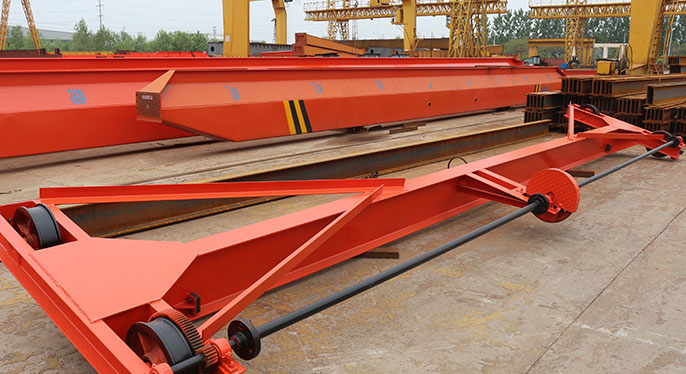

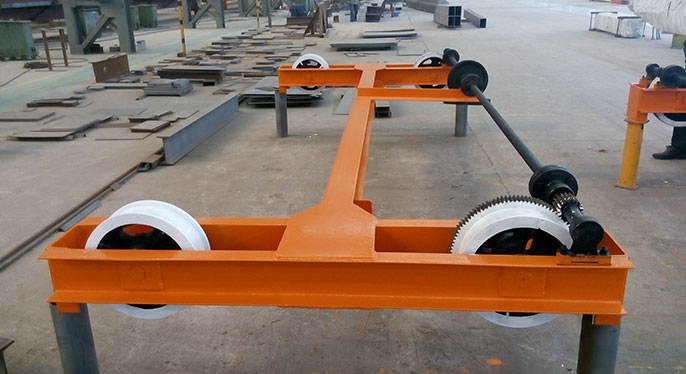

manual operational single girder crane is mainly composed of the bridge, cart driving device and manual monorail car and other major parts, car, driving and goods in lifting chain drive, the manual monorail car with a set with low cost. If there is any need,
The manual monorail car with a set with low cost. If there is any need, on behalf of my company can design and manufacture.

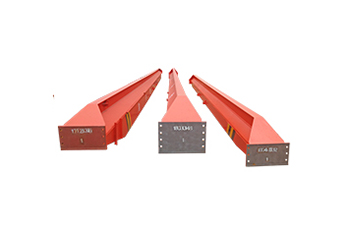

main girder

main girder

1.with strong box type and standard camber    2.there will have reinforcement plate inside the main girder

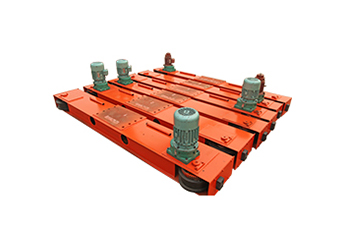

crane end beam

1.uses rectangular tube manufacturing module 2.buffer motor drive 3.with roller bearings and permanent  iubrication

crane end beam

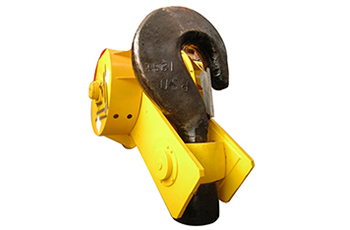

crane hook

crane hook

1.material:DG20,16Mn,20MnSi,30MnSi   2.grade:m,p,t   3.capacity:13t

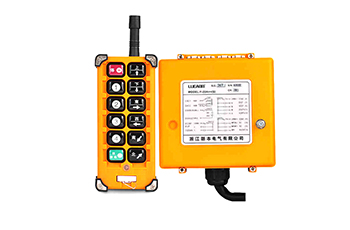

remote controller

1.apollo,HBC,WICONTEK,telecrane   2.2/4/6/8/10/12keys for choosing   3.voltage:as required

remote controller

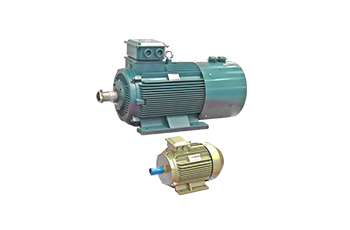

crane motor

crane motor

1.YZR,YZP are all provided   2.power:1.8-280Kw   3.number of pole-pairs:4,6,8,10

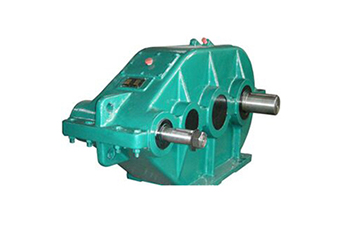

reducer

1.type:250,350,400,500,650,750,850,1000         2.ratio:8.23-317.28

reducer
Technical Parameters
Item Description
Crane material Q235B
Installation, commissioning and training Could supply in charge if you need
Surrounding temperature -25 ~ 40 Centigrade
Control method Manual control
Bridge construction Strong box type
Wheel Vacuum casting by our group, by top technique machinery
Main beam Top technique one-time-forming by machinery, no welding on
the main beam box, more strong, and more pretty to look!
Our Group Scored No.1 on single beam EOT crane for continuous 9 years

Technical parameters of manual overhead crane:

Item DESCRIPTION
Model SDQ
Capacity 13t
Span 7m
Lifting height 10m
Control type Manual control
Lifting speed Manual
Cross traveling speed Manual
Long traveling speed Manual
Working duty A1
Rail recommend Rail or square steel width 37~51mm


Advantages
Famous Brand Powerful Strength
The trust of more than 1 million enterprises in the world covers dozens of countries such as the United States, Russia, South Korea, Saudi Arabia, The United Arab Emirates, Ukraine, Poland, Vietnam and Indonesia.

certificate 1 certificate 2 certificate 3 certificate 4 certificate 5

Factory inspection Factory inspection Third party testing Third party testing



Foreign Partners


Foreign Partners Brand
Company Introduction
30 years experience uphold high quality
Integrity and innovation

  Quality and service


Integrity and innovation


Quality and service


HY Crane always adhere to the concept of integrity and
innovation. Integrity makes the company lay a solid foundation and earn good reputation. Innovation is the inspiration that drives us to develop better and be a world class company.


HY Crane owns its own technology and expertised engineer with abundant experience. We are also equipped with advanced automated machines to improve the quality of our product. Quality and service is always our core competence.


our factory
Five years warranty Five years warranty Free distribution of wearing parts Free distribution of wearing parts
Provide assemble videos before shipment Provide assemble videos before shipment Techincal support and field installation Techincal support and field installation
