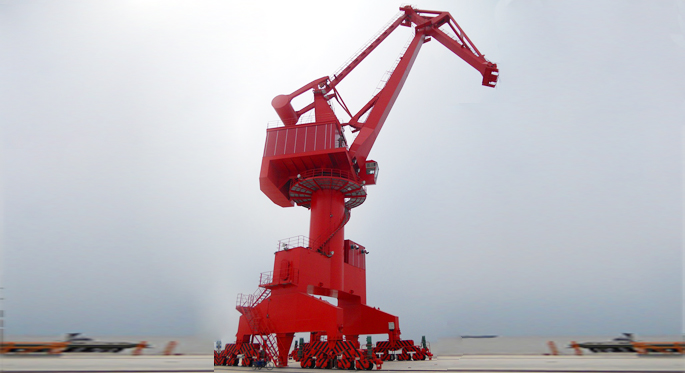

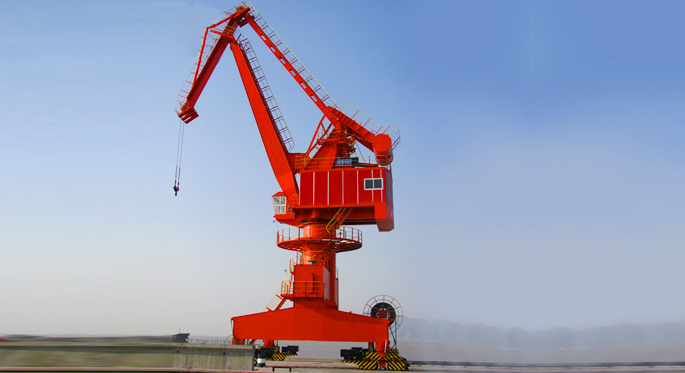

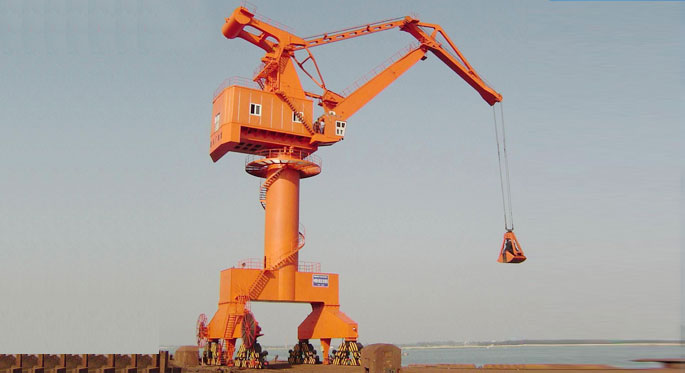

Portal crane
Portal crane
Portal crane
Portal crane
Portal crane
Portal crane
Portal crane
Portal crane
Portal crane
Portal crane

Portal crane

The capacity:
16-40t
Lifting speed:
50-60m
luffing speed:
45-50m

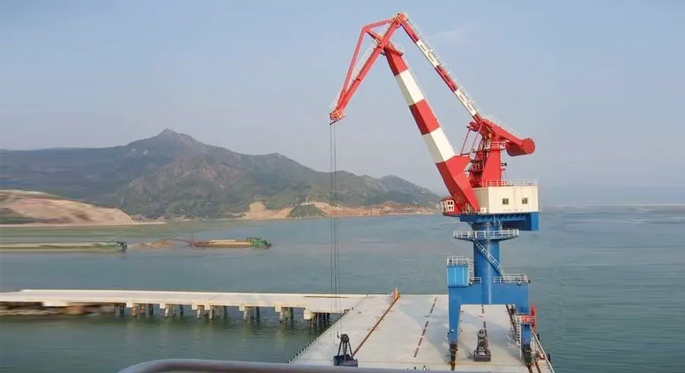

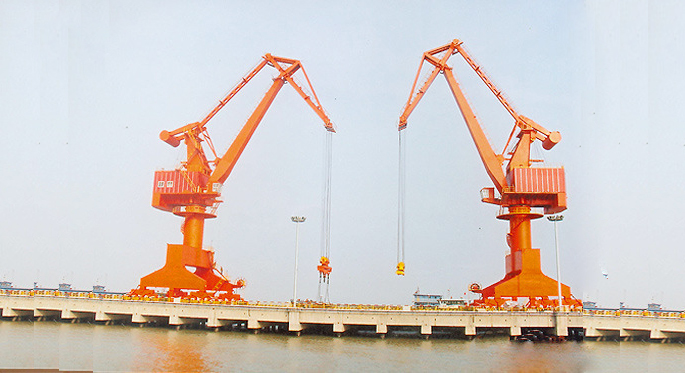

Portal crane for port are state-of-the-art, economical and flexible handling machines on rails. They are based on the well proven mobile harbour crane technology and can be easily integrated into existing or planned terminal infrastructures.
Product description
Technical Parameters
Certifications
Product description
Portal crane for port are state-of-the-art, economical and flexible handling machines on rails. They are based on the well proven mobile harbour crane technology and can be easily integrated into existing or planned terminal infrastructures. Their strengths:Use on special-purpose quays for tough continuous-duty bulk handling Possibility of providing specific portal solutions in line with terminal requirements Modular construction Comparatively low total weight.

Single Boom Shipyard Crane ensures safety for operators even in harsh weather
HYCranes Single Boom Shipyard Cranes are the right choice for general ship outfitting. They can be used in small and large shipbuilding and repair. With the latest design enhancements from HYCranes, they can be made rigid for heavier loads.

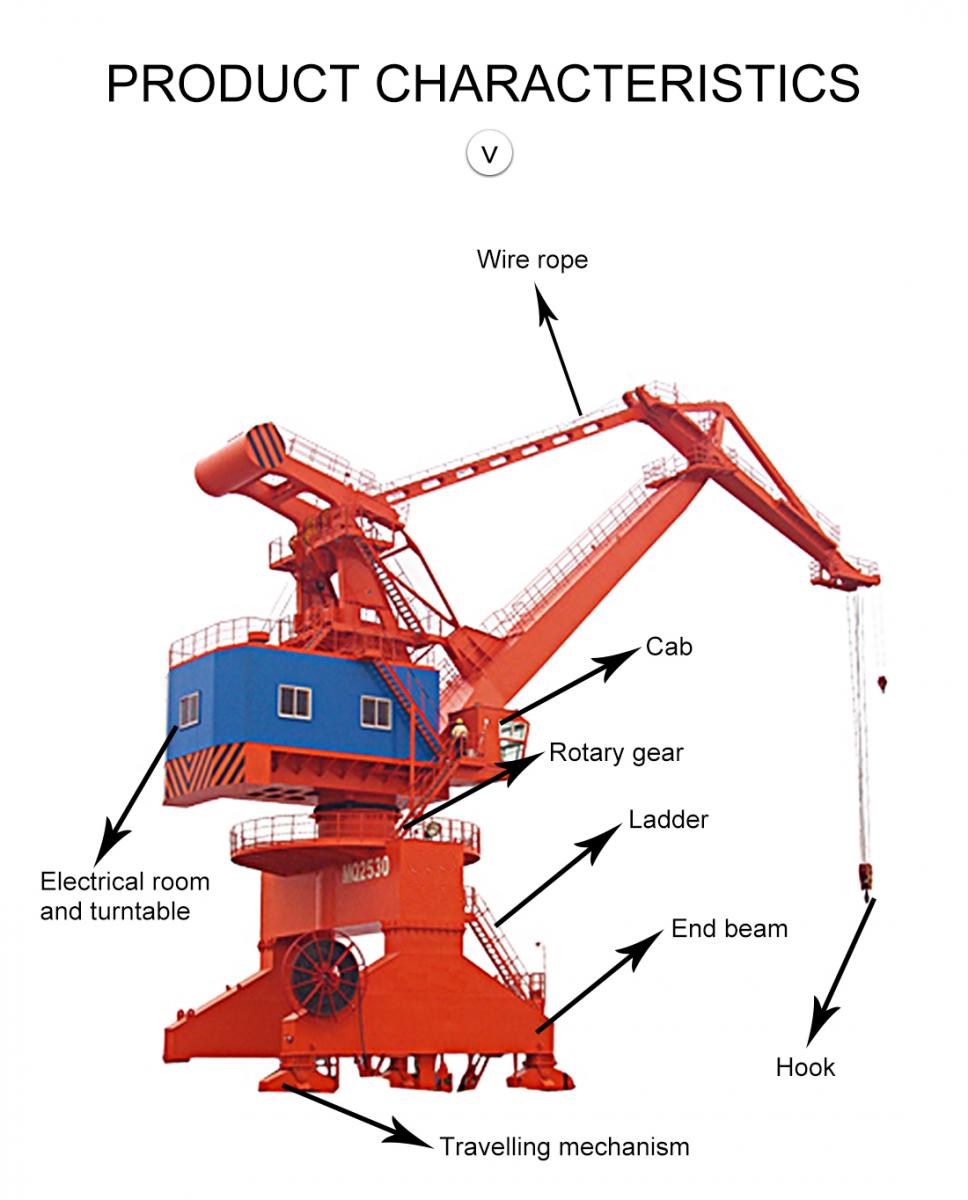

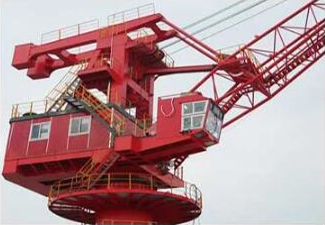

Electrical room

optimizated electrical room's decoration, and spacious access channel embodies the designer's pursuit of ergonomics. enginners can simply conveniently maintenance for motor, reducer, cable drum facilities

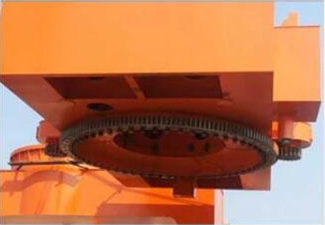

Slewing mechanism

slewing mechanism running stable and reliable, with electric interlocking rotation anchor device between rotating parts and door frame. mast anchor pins installed inside the cylinder of the door frame, anchor detection device can automatically detect berth

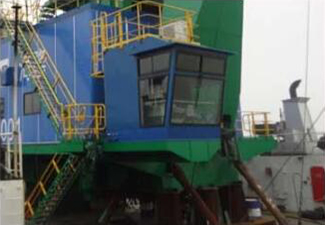

Cabin

cabin with beautiful design, wide vision. humanization of interior design can reduce operater's tension and fatigue and improve the working efficiency

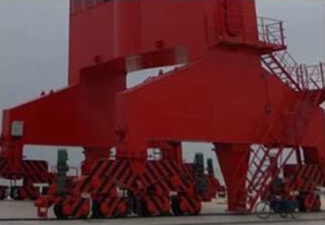

Operating mechanism

the operation mechanism consists of three parts: operation support device, operation drive device and safety device. its characteristics are sufficient wind resistance, anti skid safety and anti overturning
Technical Parameters
Item Unit Data
Capacity t 16-40
Working range m 30-43
Wheel dis m 10.5-16
lifting speed m/min 50-60
Luffing speed m/min 45-50m
Rotating speed r/min 1-1.5
Travelling speed m/min 26
Power source   as your demands
Other   According to your specific usage, specific model and design will offer
Free Spare Parts
We can supply all these crane spare parts freely for five years!
