Rail mounted container gantry crane

The capacity:

30.5-320ton

The span:

35m

The working grade:

Send email Get Quote Now

Product description

Technical Parameters

Company strength

Product description

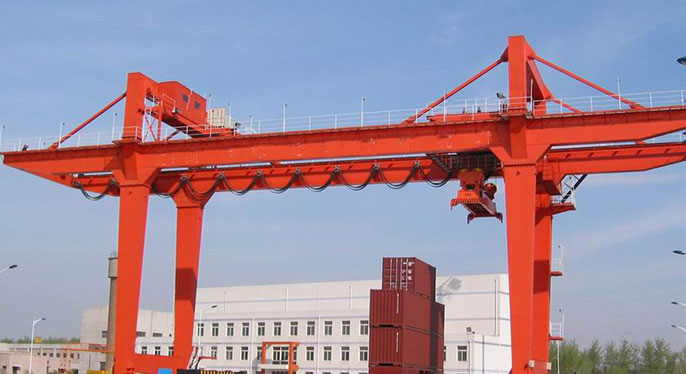

Rail mounted container gantry crane banner

Rail mounted gantry crane is a type of large dockside gantry crane found at container terminals for loading and unloading inter modal containers from container ship
rail mounted gantry crane is specialized yard container handling machines. Its travels on rails to lift and stack 20, 40 and other containers on the yard area of the container terminal, The container is lifted by a spreader attached to cables. These cranes are specifically designed for intensive container stack due to its automation and less need for human handing.

Rail mounted gantry crane has the advantage of being driven by electrical power, cleaner, bigger lifting capacity, and higher gantry travelling speed with cargo.

The capacity:30.5-320ton
The span : 35m
The working grade : A6
The working temperature:-20℃ to 40℃

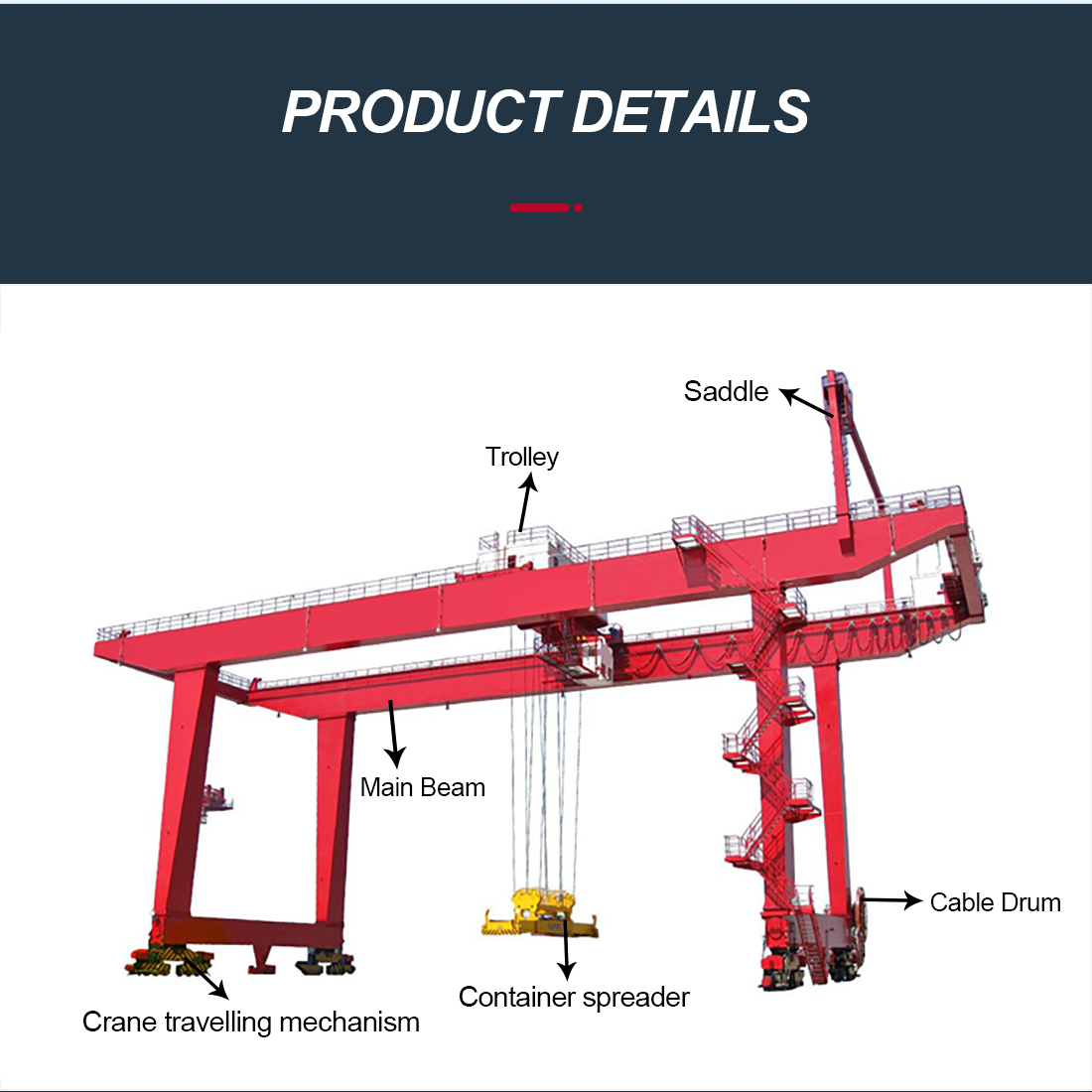

Rail mounted container gantry crane product details

Rail mounted container gantry crane product details

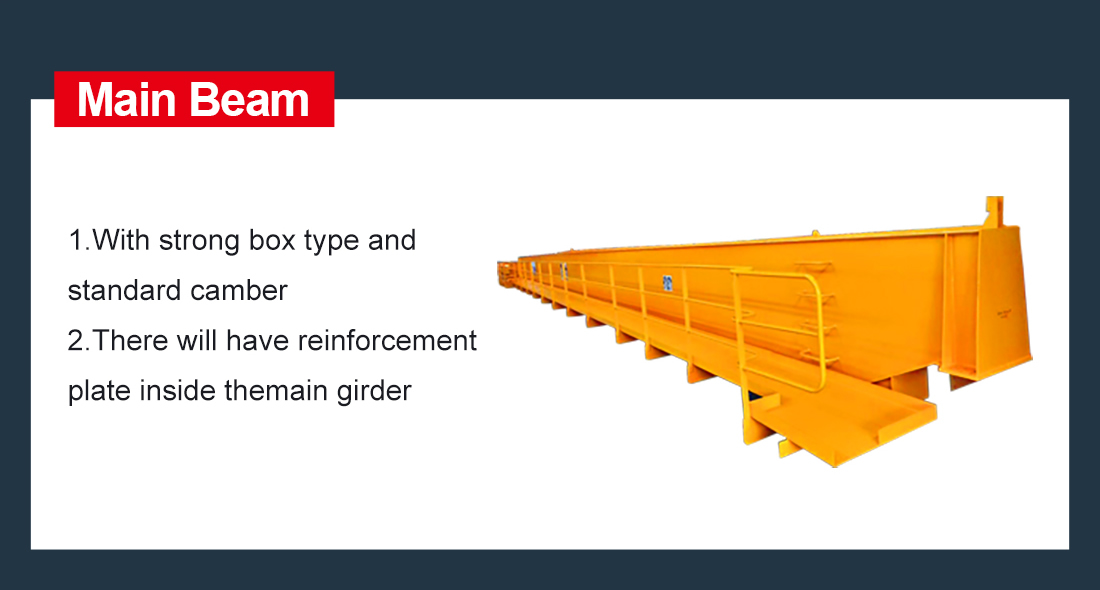

Rail mounted container gantry crane main beam

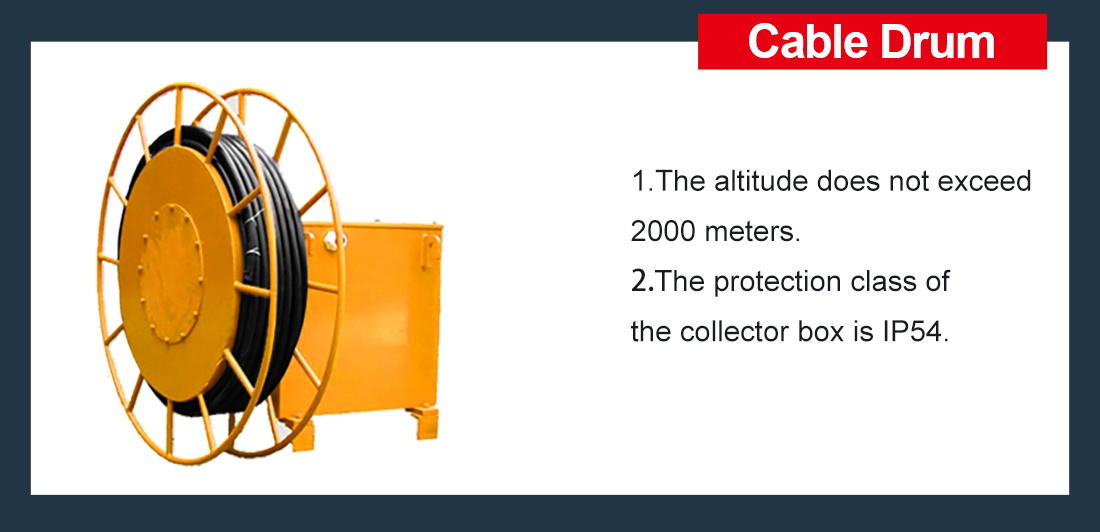

Rail mounted container gantry crane cable drum

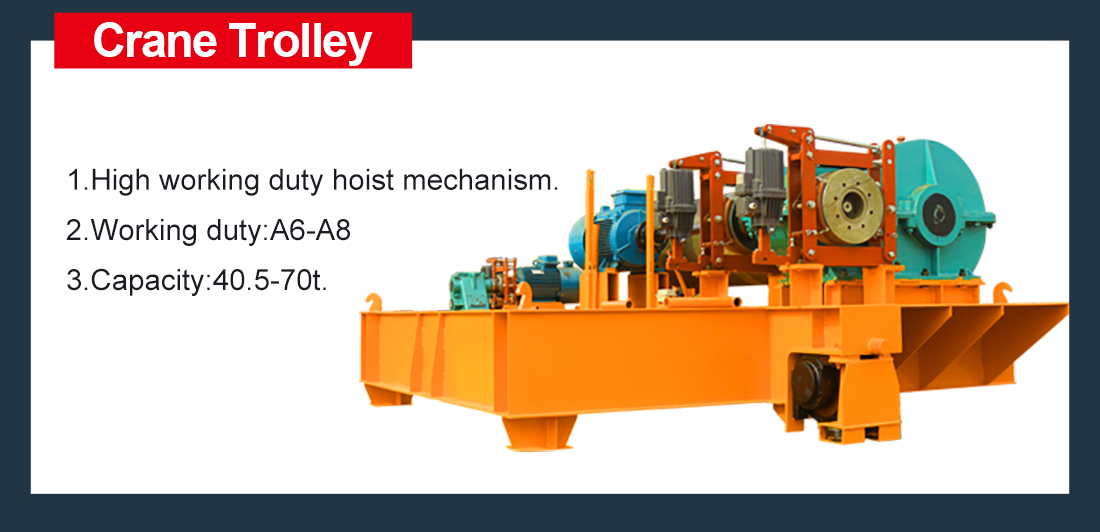

Rail mounted container gantry crane trolley

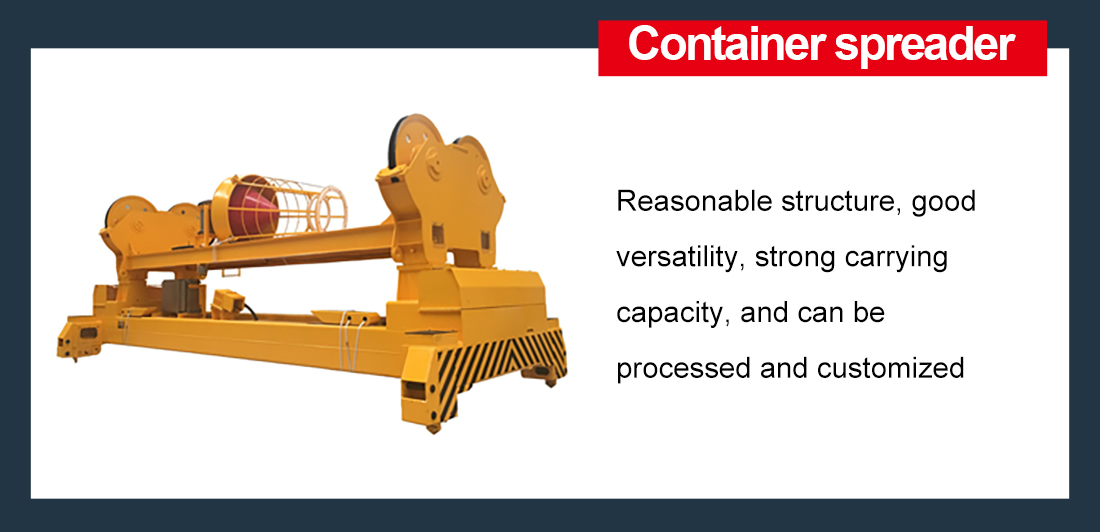

Rail mounted container gantry crane spreader

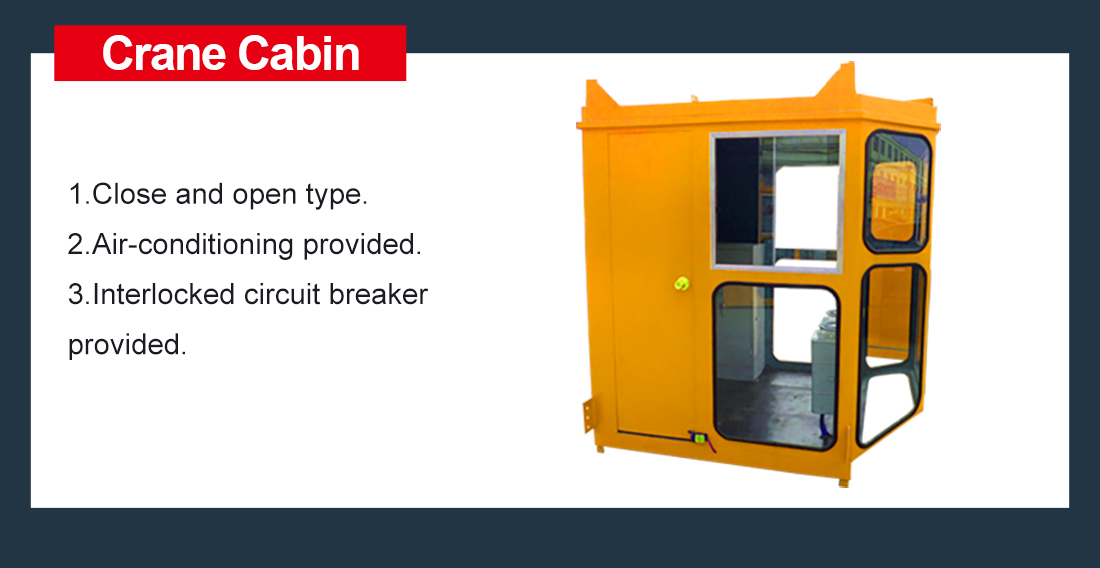

Rail mounted container gantry crane cabin

Technical Parameters

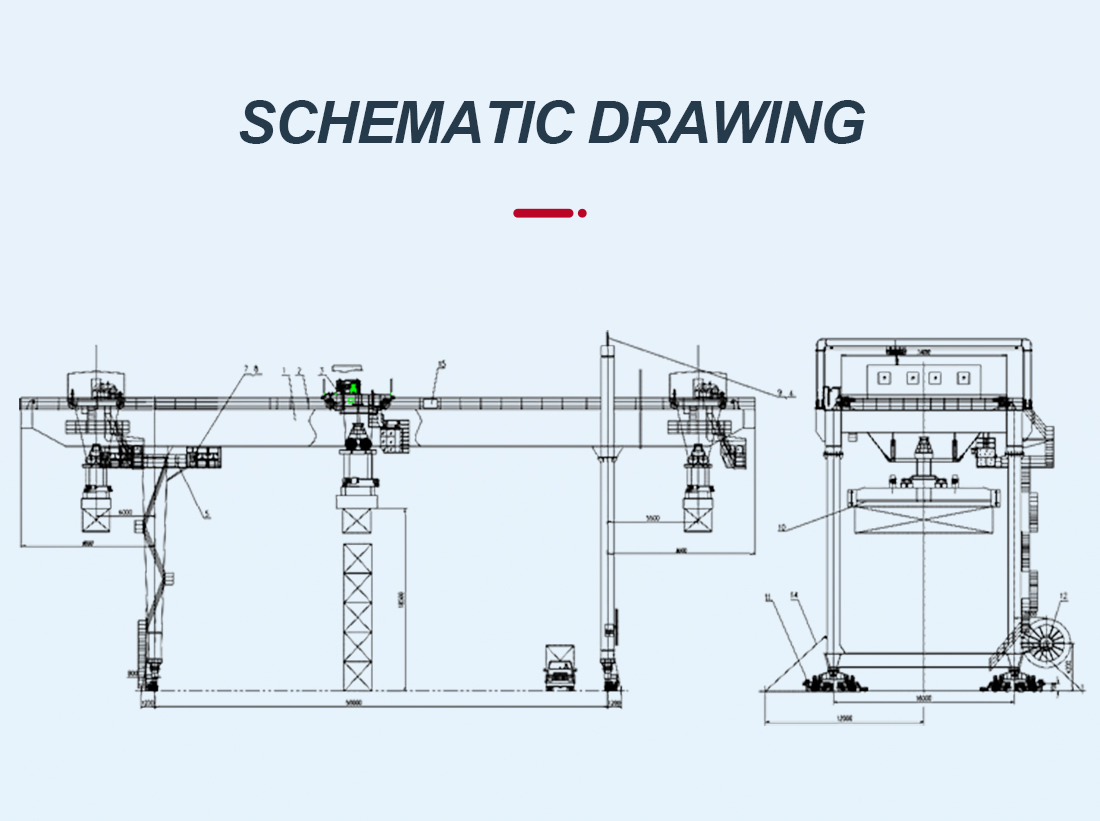

Rail mounted container gantry crane schematic drawing

Item	Unit	Result
Lifting capacity	ton	30.5-320
Lifting height	m	15.4-18.2
Span	m	35
Working environment temperature	°C	-20~40
Hoisting Speed	m/min	12-36
Crane Speed	m/min	45
Trolley Speed	m/min	60-70
Working system		A6
Power source		three-Phase A C 50HZ 380V

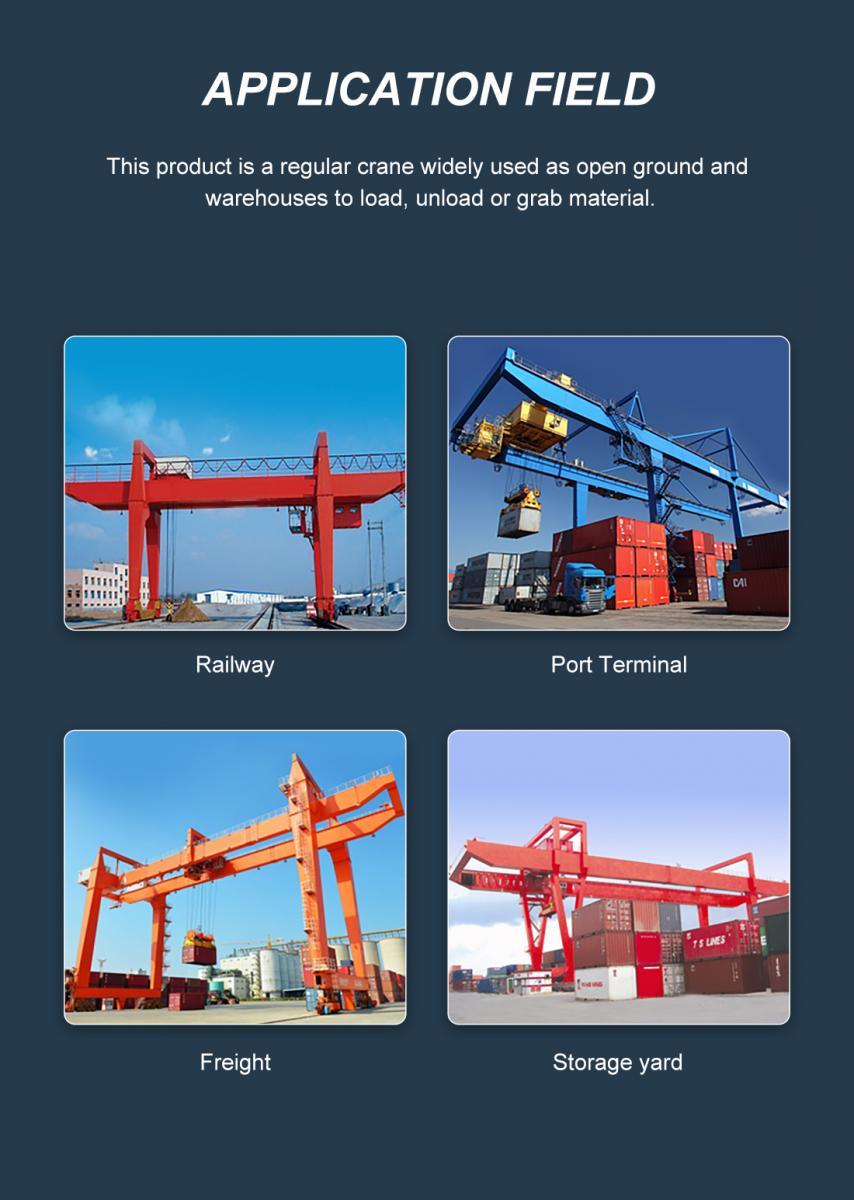

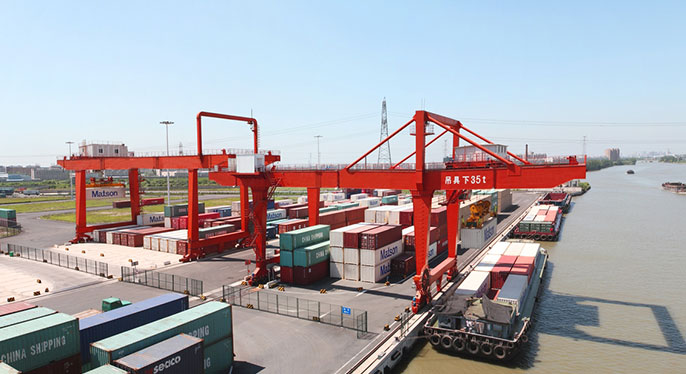

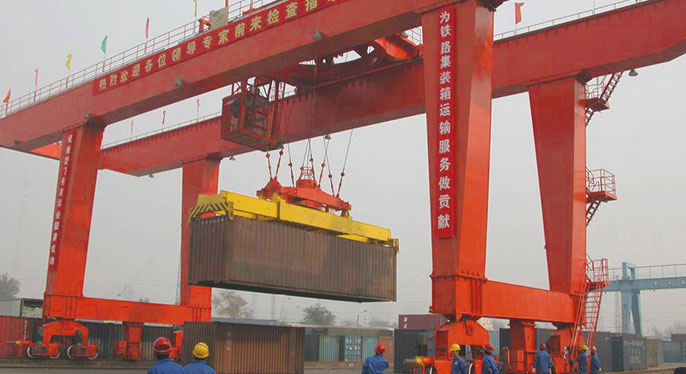

Rail mounted container gantry crane application field
