The capacity:
10-150t
Running Speed:
0-20m/min
Motor Power:
1.6-15kw

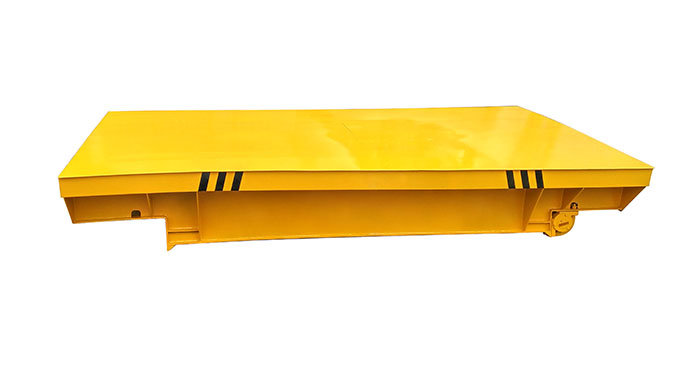

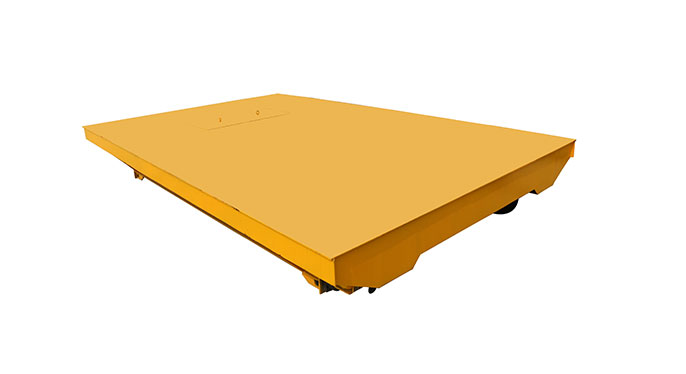

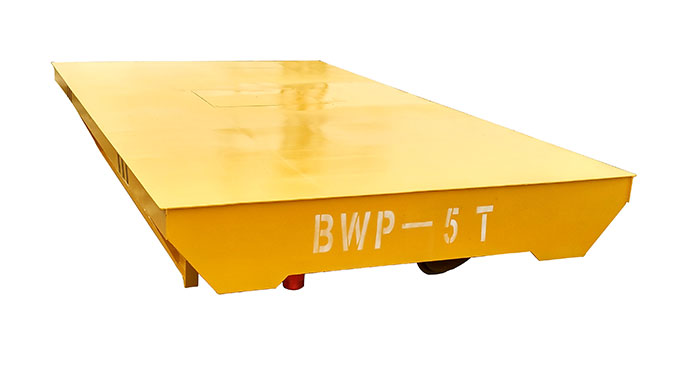

Large table motorized transfer cart 5 ton design is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on.
Product description
Technical Parameters
Certifications
Product description
Transfer cart is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on.  With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.

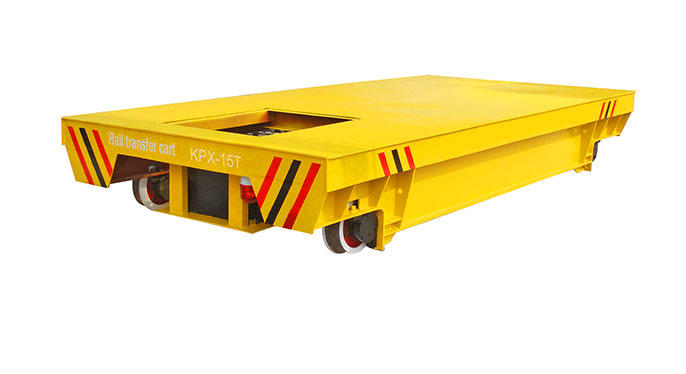

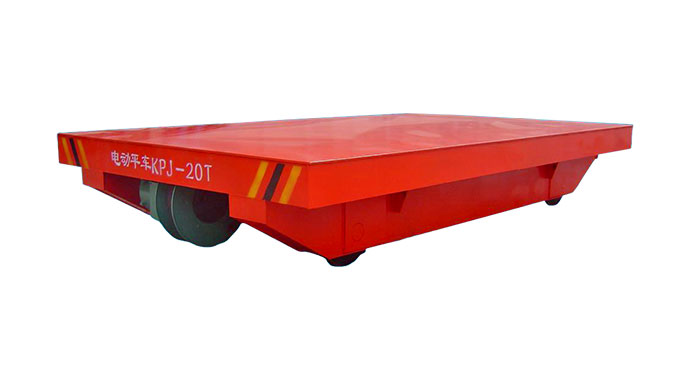

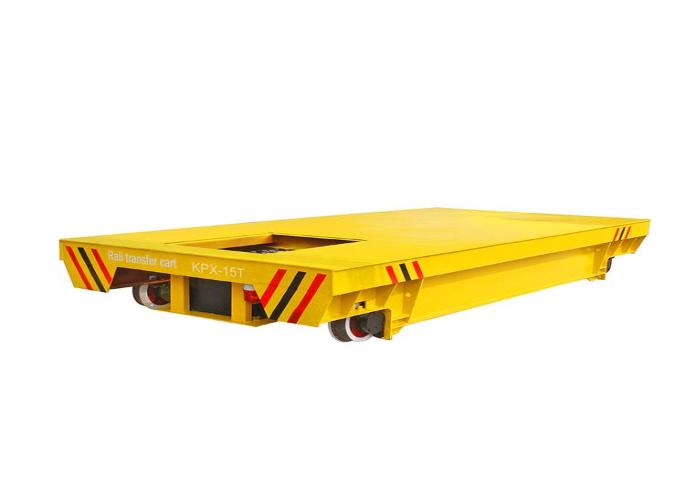

Large table motorized transfer cart 5 ton design main contains KPD, KPJ, KPTand KPX, If you are unsure as to what type of transfer cart will best serve your needs. Spending a few minutes  now discussing the needs of your application could save you dollars in the future. According to your business needs, we will provides you with the most professional products ,our products are found in all sectors, with excellent craftsmanship and technical team, so we produce transfer cart applications in various industries have been widely used.

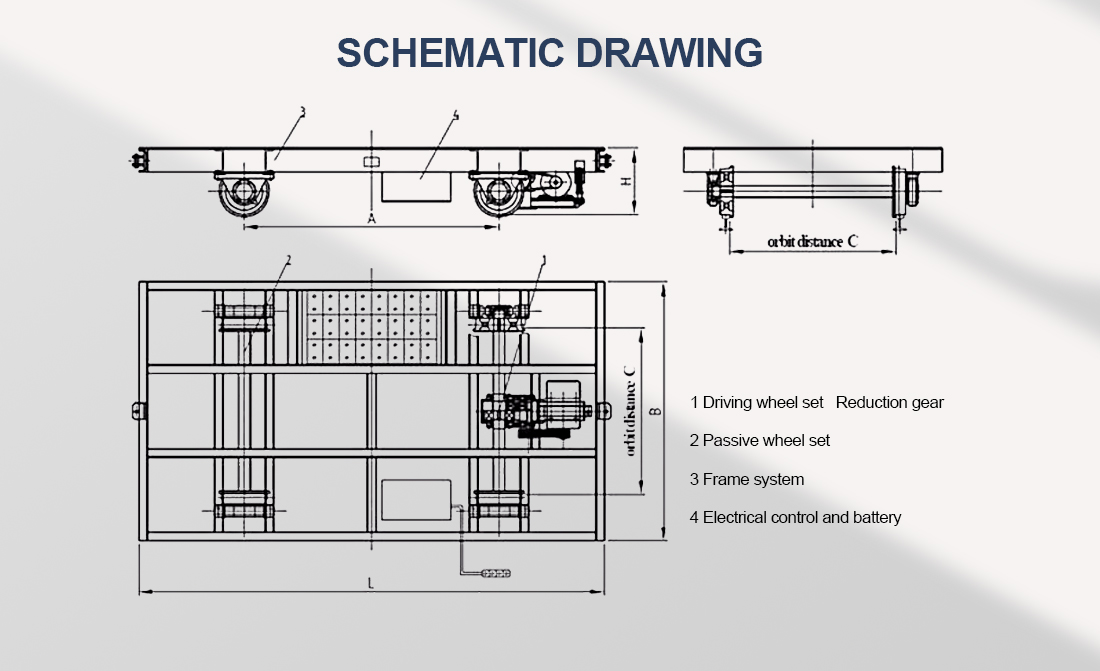

Cart frame

the frame is a frame structure welded by two longitudinal beams, several cross beams and bench panels. under the bench plate, all the steel plate are welded into meshes, so that the force on the frame is uniform. it can also be customized according as per demands

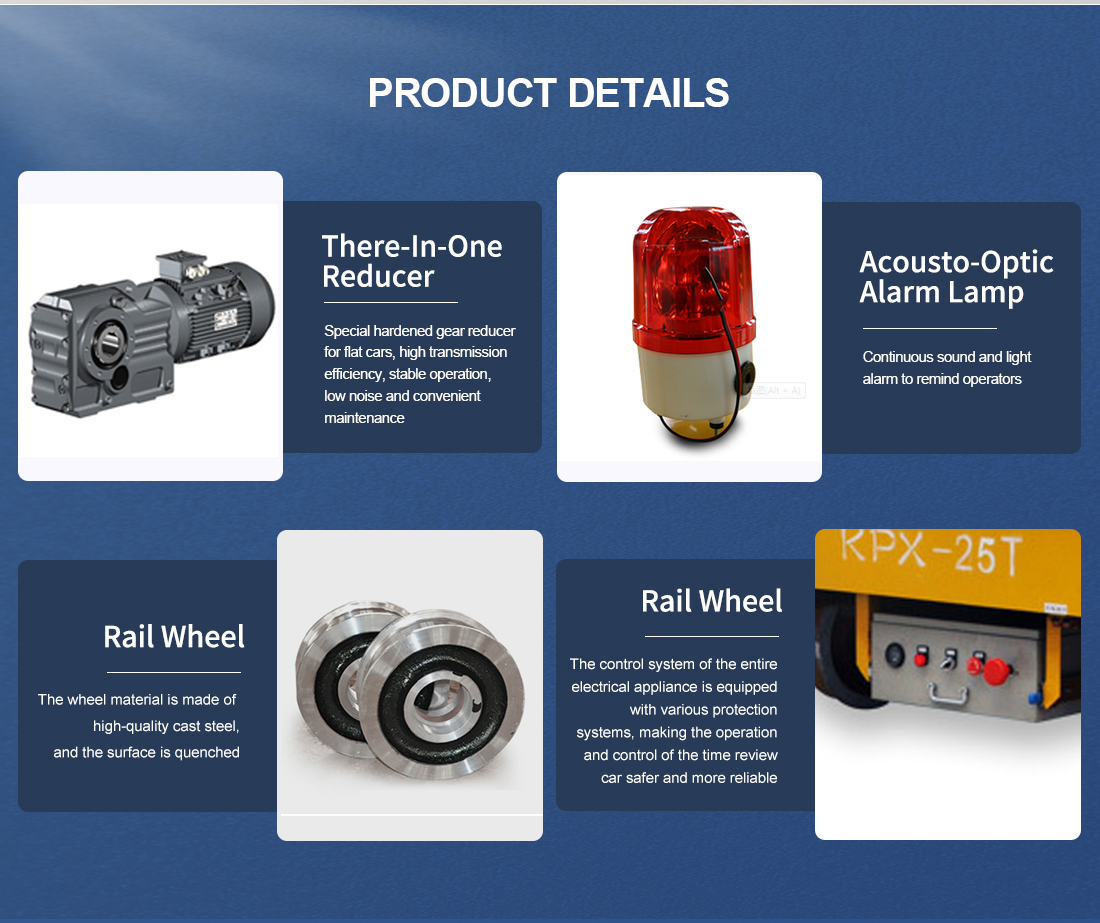

Three-in-one reducer

the reducer adopts euro-standard three-in one reducer, which has high mechanical transmission efficiency, smooth operation, low noise, convenient installation and maintenance, and flexible rotation of all levels of axles

Rail wheel

the wheel adopts the crane special wheel, the wheel uses ZG55, the whole quenching, the wheel tread and the wheel rim inner hardness hb320-380, the depth 20mm, after the wheel is assembled, the rotation is flexible. it has the features of high strength and long wearing life

Acousto-optic alarm lamp

the shell of alarm lamp is made of high quality imported raw materials. it has bright color and good transmittance. it can be used for a long time without fading or wearing. it is always new
Technical Parameters
Item Unit Spectification
capacity t 10-150
Table Size  3.6*2.0*0.5-10*3.0*1.2
Rail inner Gauge mm 1435-2000
Wheel Dia. mm 350-600
Running Speed m/min 0-20
Motor Power kw 1.6-15
Battery Capacity Ah 180-600
Battery Volatge v 48-72
Max Wheel Load Kn 42.6-343.8
Reference weight t 4.2-26.8
Power / Maintenance Free Battery
Free Spare Parts
We can supply all these crane spare parts freely for five years!
