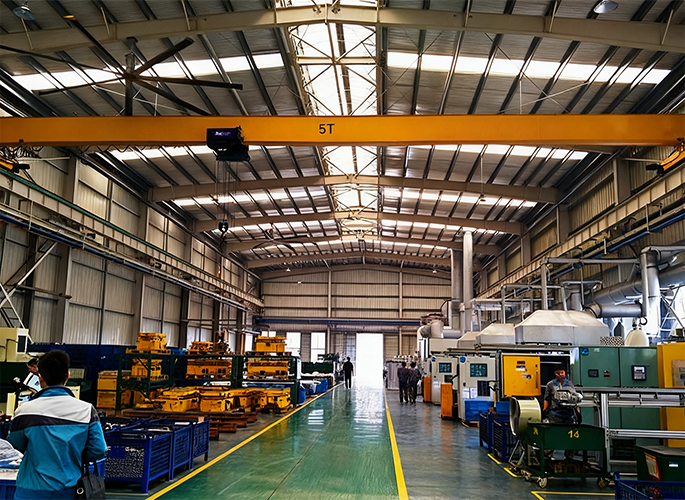

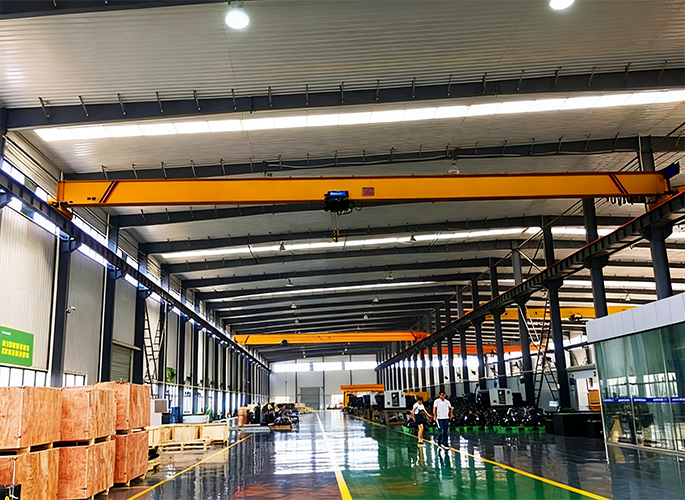

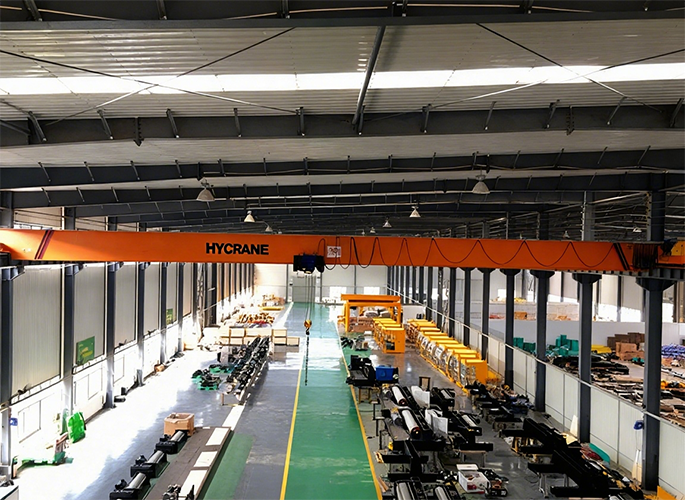

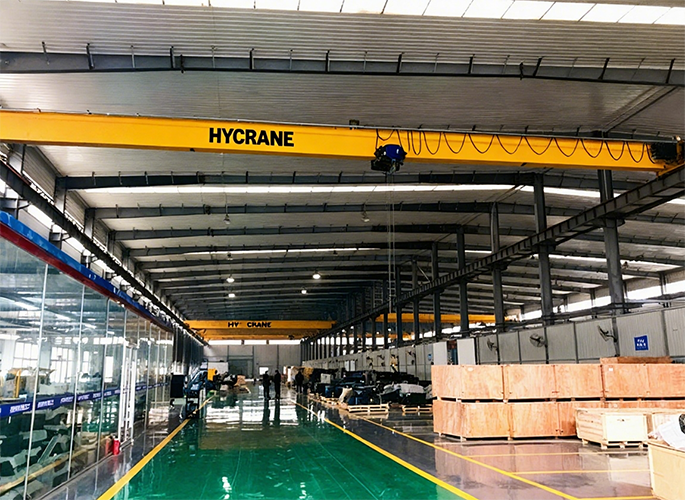

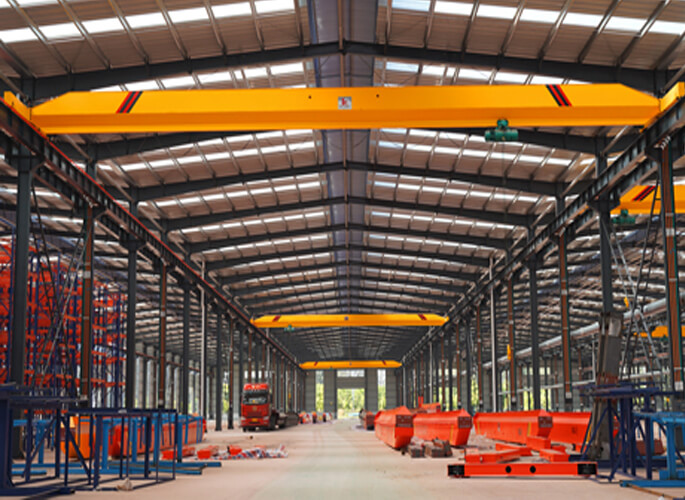

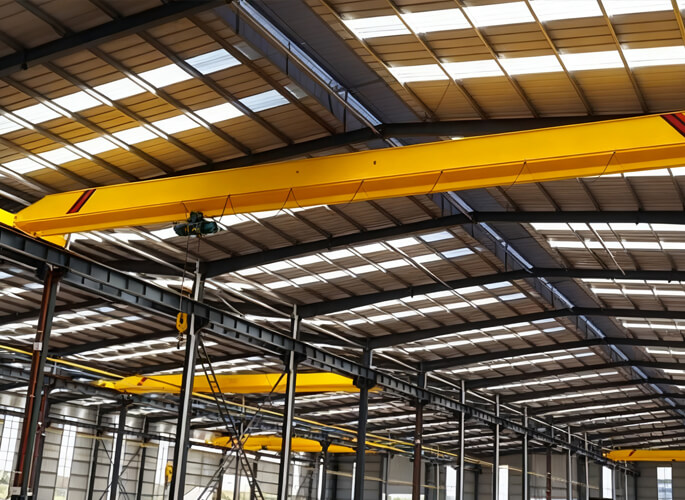

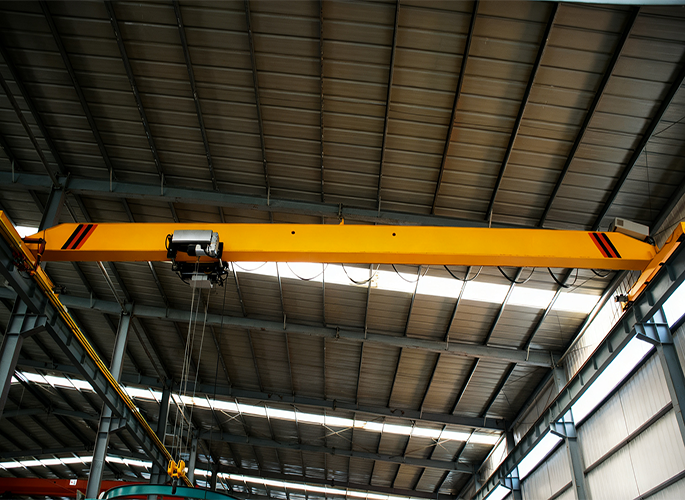

Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane
Europe type single girder overhead crane

Europe type single girder overhead crane

The capacity:
0.25-30ton
The span:
7.5-32mtrs
Lifting height:
6-30mtrs

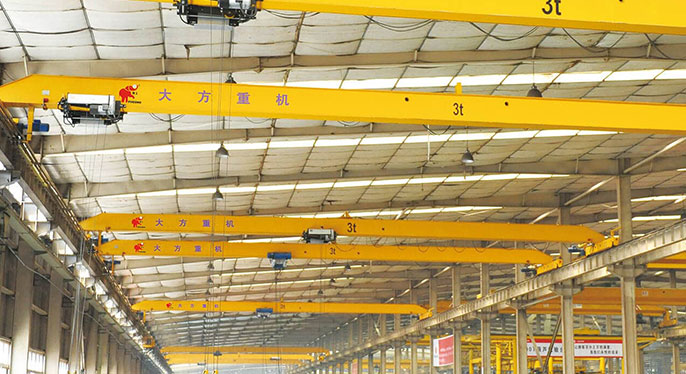

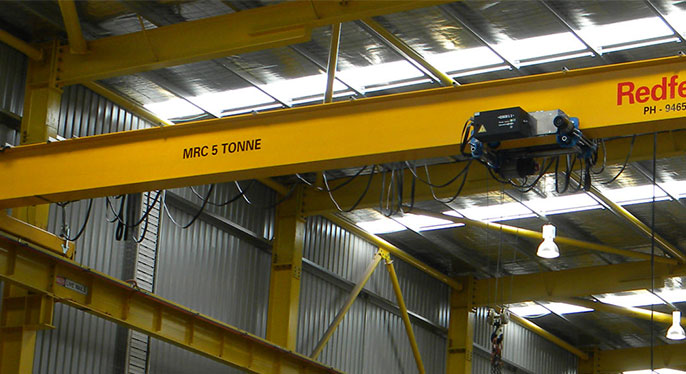

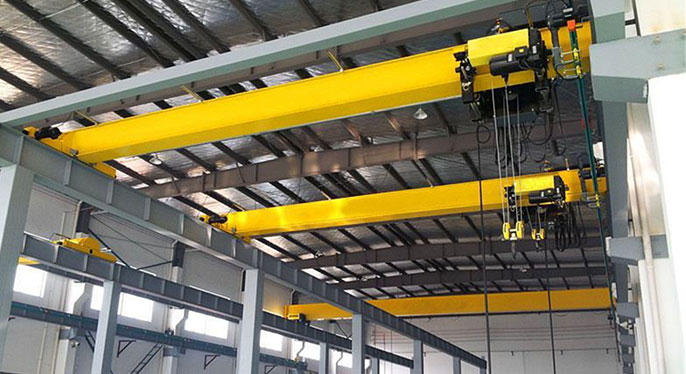

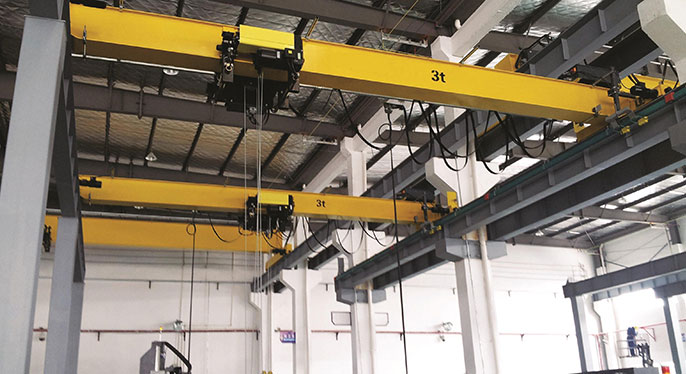

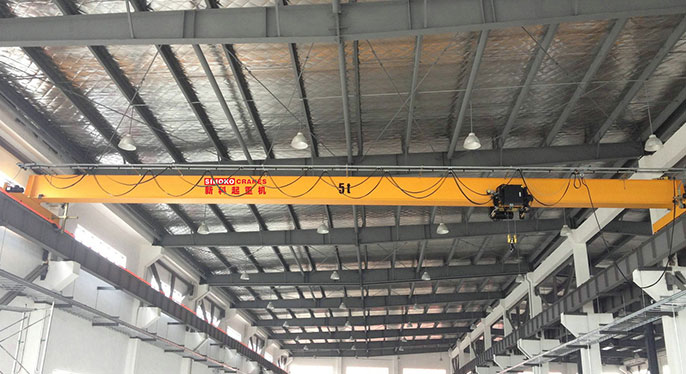

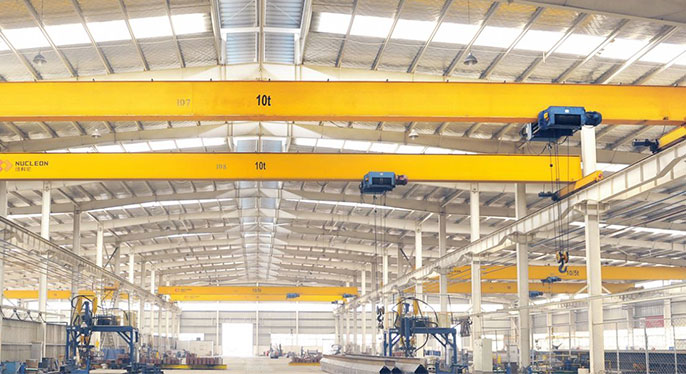

Europe type single girder overhead crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.
Product description
Technical Parameters
Certifications

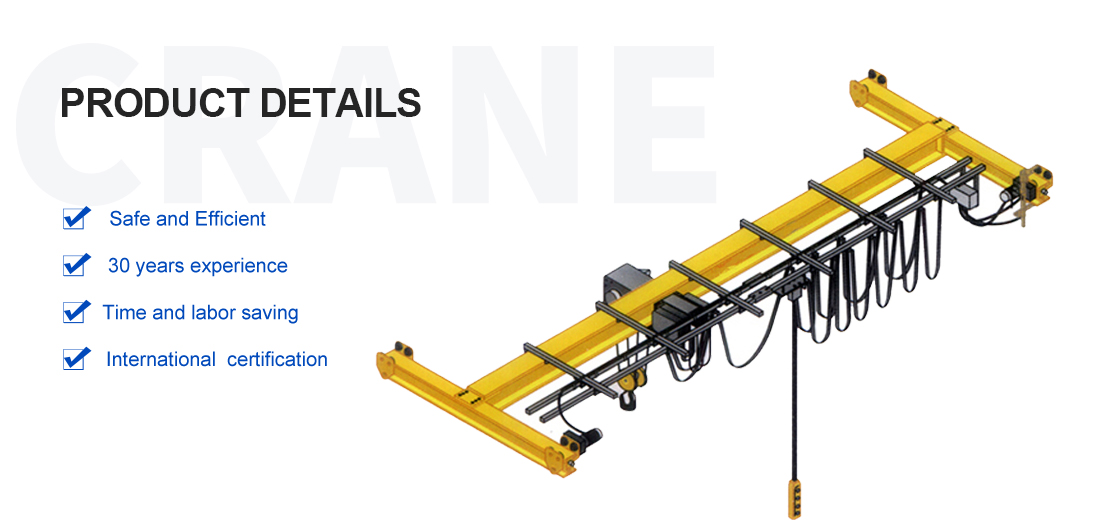

Product description

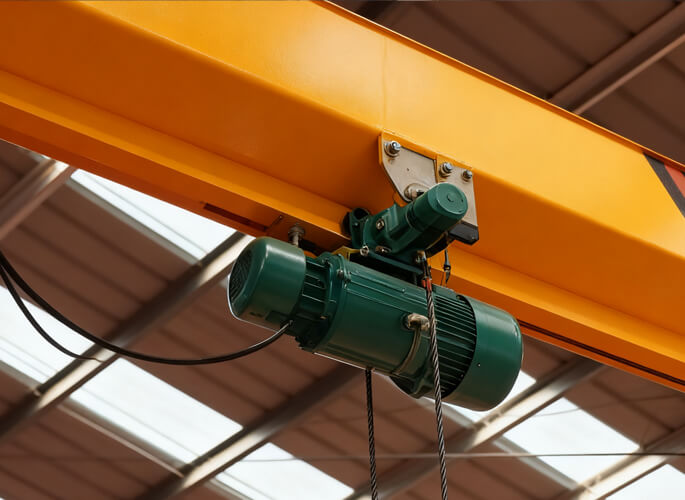

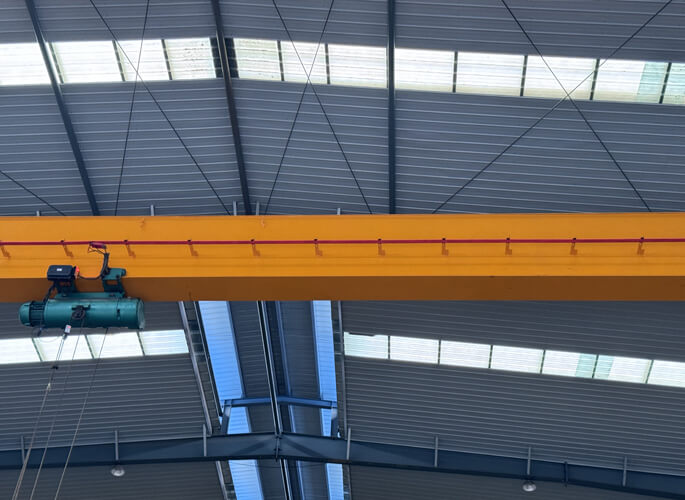

Europe type single girder overhead crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required. Europe type single girder overhead crane’s lifting mechanism is Europe type hoist, the advantages of Europe type hoist are the compact structure, light and safe,big lift capacity, easy to maintain, and efficient high lifting speed, smooth low lifting speed, precise positioning, it also has the humanization design of control pendant, novel design, good-looking appearance.

The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.
Lifting capacity: 0.25-30ton
Span length: 7.5-32mtrs
Lifting height: 6-30mtrs
Working duty: Class C or D
Power: AC 3Ph 380V 50Hz or according to client's requirement

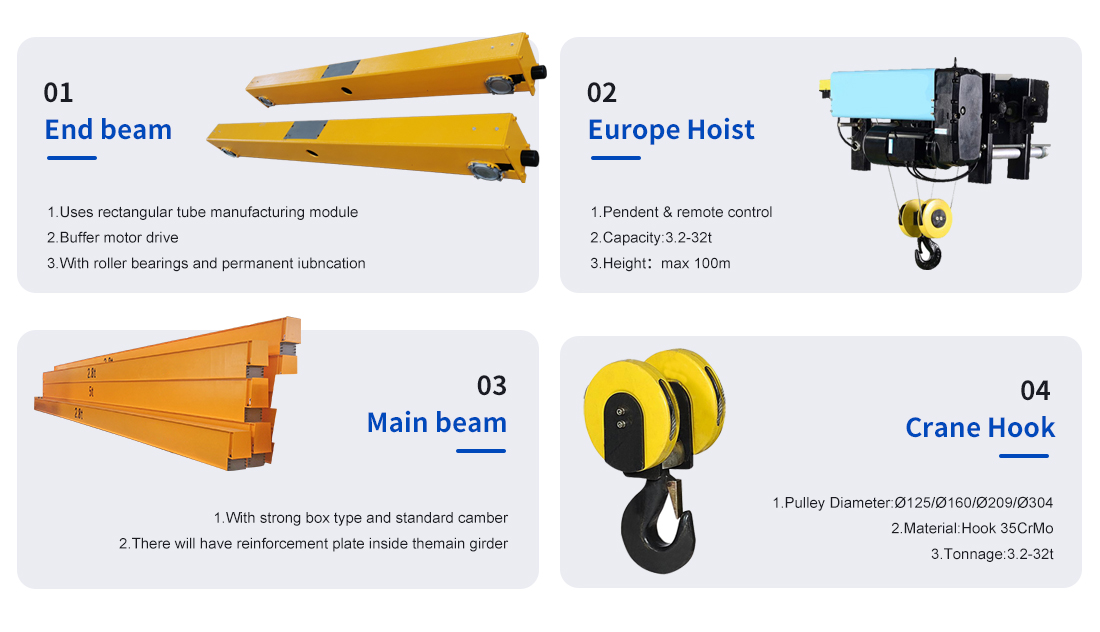

main girder

1.with strong box type and standard camber    2.there will have reinforcement plate inside the main girder

crane end beam

1.uses rectangular tube manufacturing module    2.buffer motor drive    3.with roller bearings and permanent iubrication

crane hook

1.material:DG20,16Mn,20MnSi,30MnSi    2.grade:m,p,t    3.capacity:0.25-30t

crane motor

1.YZR,YZP are all provided    2.power:1.8-280Kw    3.number of pole-pairs:4,6,8,10

remote controller

1.apollo,HBC,WICONTEK,telecrane    2.2/4/6/8/10/12keys for choosing    3.voltage:as required

Reducer

1.type:250,350,400,500,650,750,850,1000      2.ratio:8.23-317.28

Technical Parameters
Item Unit Result
Lifting capacity ton 0.25-20ton
Working grade   Class C or D
Lifting Height m 6-30m
Span m 7.5-32m
Working environment temperature °C -25~40
Control mode   cabin control/remote control
power source   three-phase 380V 50HZ
Free Spare Parts
We can supply all these crane spare parts freely for five years!
Certifications
