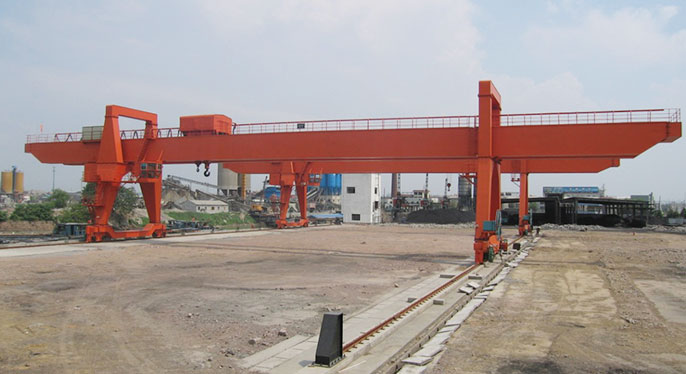

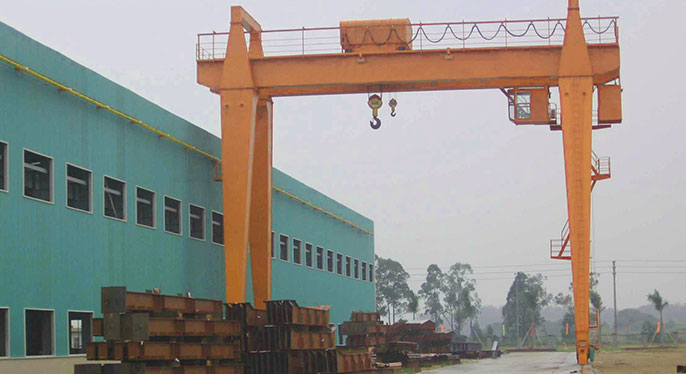

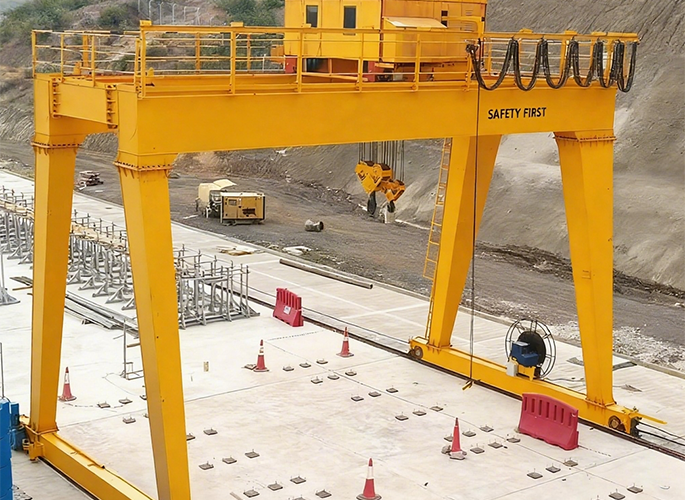

Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane
Double girder gantry crane

Double girder gantry crane

The capacity:
5-320ton
The span:
18-35m
The working grade:
A5
Double girder Gantry Crane are made up of bridge, trolley, crane traveling mechanism and electric system. All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work. According to the structure of the leg can be divided into A type, U type, L type, ect.
Product description
Technical Parameters
Certifications
Product description
Double girder Gantry Crane are made up of bridge, trolley, crane traveling mechanism and electric system. All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work. According to the structure of the leg can be divided into A type, U type, L type, ect.

Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations. we could be customized according different working situation or client's request.

The capacity:5-320ton
The span : 18-35m
The working grade : A5
The working temperature:-20℃ to 40℃

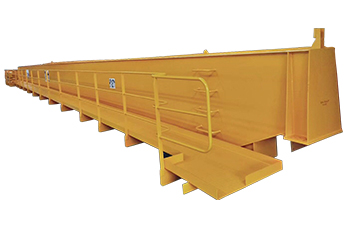

main beam

1.with strong box type and standard camber     2.there will have reinforcement plate inside the main girder

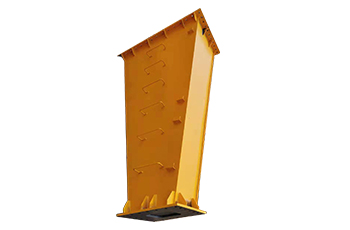

crane leg

1.supporting effect    2.ensure safety and stability    3.improve the lifting characteristics

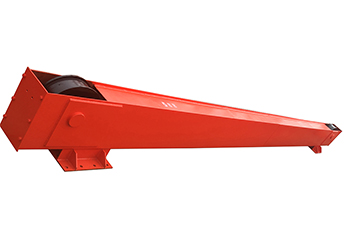

ground beam

1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

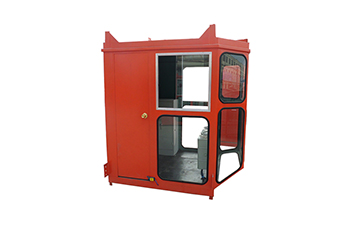

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

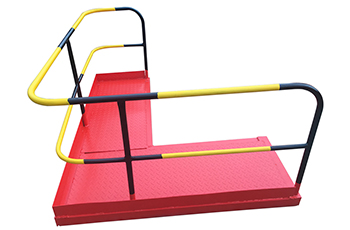

ladder platform

1.Integrated welding ladder    2.mainly used for product repair

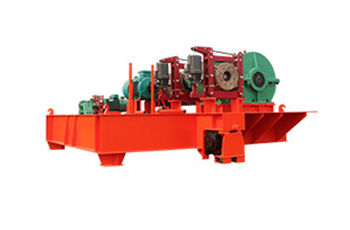

crane trolley

1.high working duty hoist mechanism    2.working duty:A3-A8    3.capacity:5-320t

Technical Parameters
Item Unit Result
Lifting capacity ton 5-320
Lifting height m 3-30
Span m 18-35
Working environment temperature °C -20~40
Lifting Speed m/min 5-17
Trolley Speed m/min 34-44.6
Working system   A5
Power source   three-Phase A C 50HZ 380V
Free Spare Parts
We can supply all these crane spare parts freely for five years!
