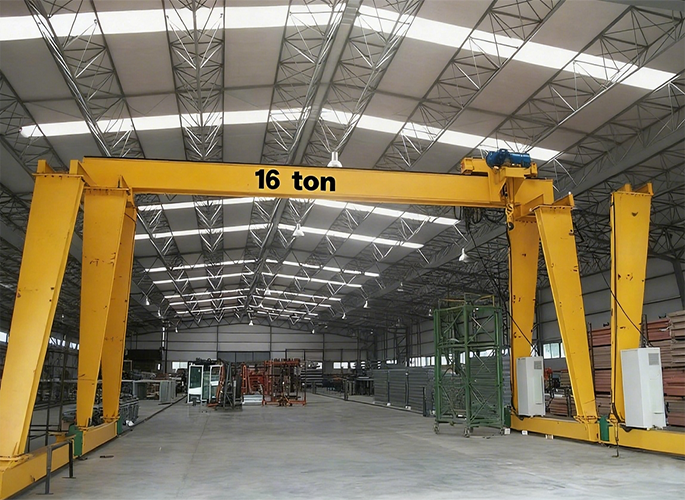

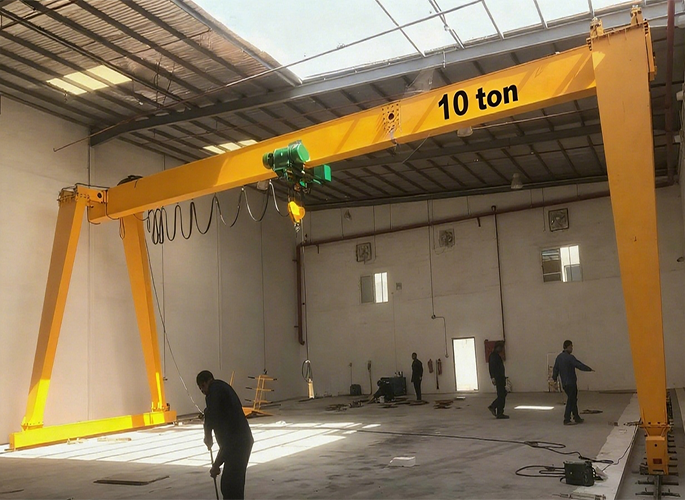

Single girder gantry crane
Single girder gantry crane
Single girder gantry crane
Single girder gantry crane
Single girder gantry crane
Single girder gantry crane
Single girder gantry crane
Single girder gantry crane

Single girder gantry crane

Lifting capacity:
3.2-32ton
Span length:
12-30m
Working grade :
A5

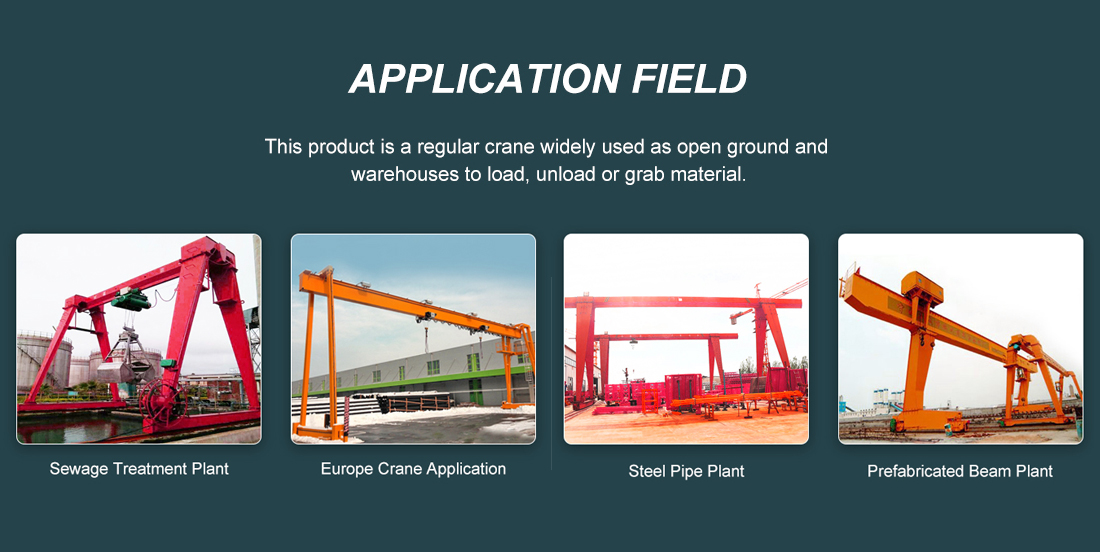

Electric hoist single girder gantry crane is consisted with gantry frame, main girder, legs, slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place.
Product description
Technical Parameters
Certifications
Product description
Electric hoist single girder gantry crane is consisted with gantry frame, main girder, legs, slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place.

Electric hoist single girder gantry crane is used together with CD MD model electric hoist. It is a track travelling small and medium-sized crane. Its proper lifting weight is 3.2 to 32 tons. proper span is 12 to 30 meters its proper working temperature is -20℃to 40℃.

The capacity:3.2-32ton
The span : 12-30m
The working grade : A5
The working temperature:-20℃ to 40℃

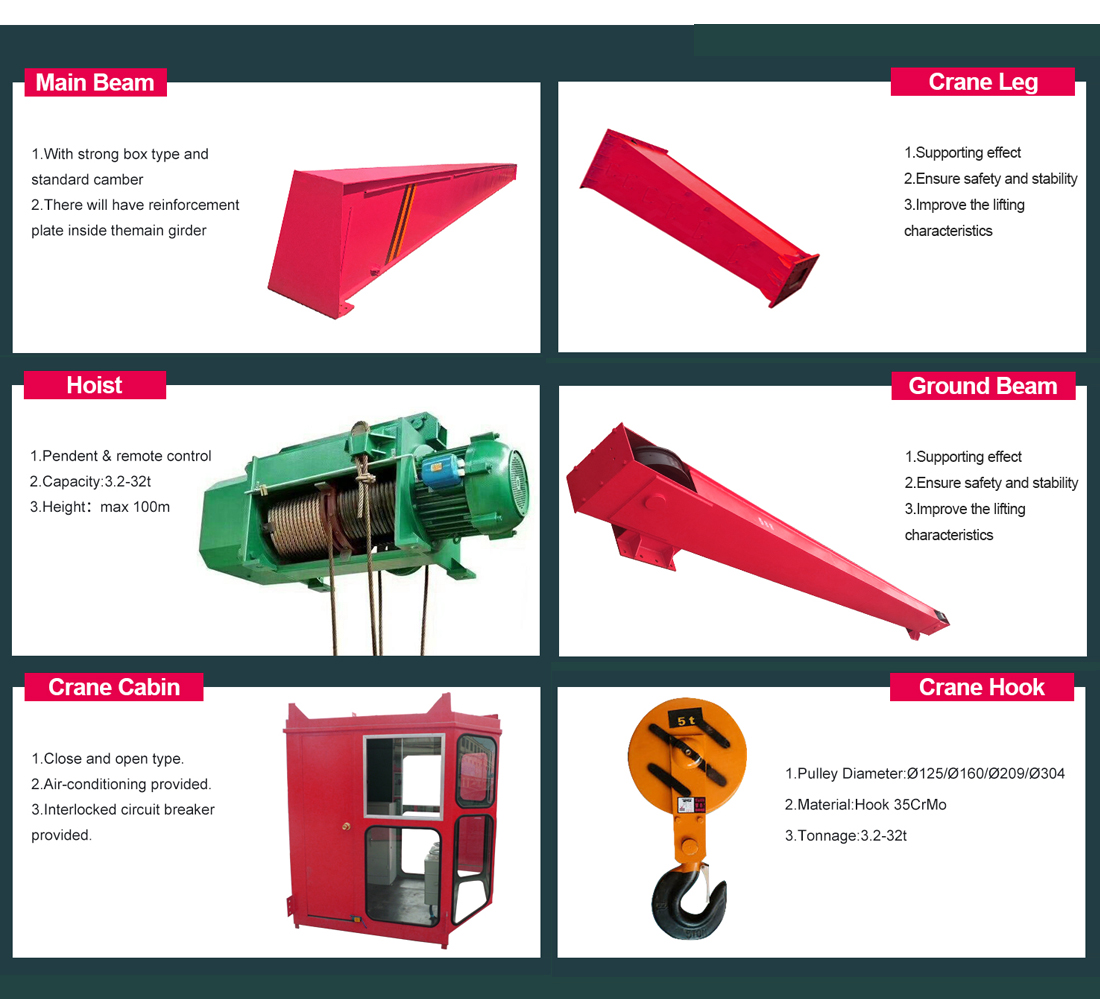

crane leg

1.supporting effect    2.ensure safety and stability    3.improve the lifting characteristics

ground beam

1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

crane hoist

1.Can be CD (single lifting speed) or MD (dual lifting speed) model    2.realize lifting and cross travel functions.

crane hook

1.material:DG20,16Mn,20MnSi,30MnSi    2.grade:m,p,t    3.capacity:3.2-32t

crane wheel

1.Material: ZG55,ZG65,ZG50SiMn or on request    2.wheel diameter: Φ250mm-Φ800mm.

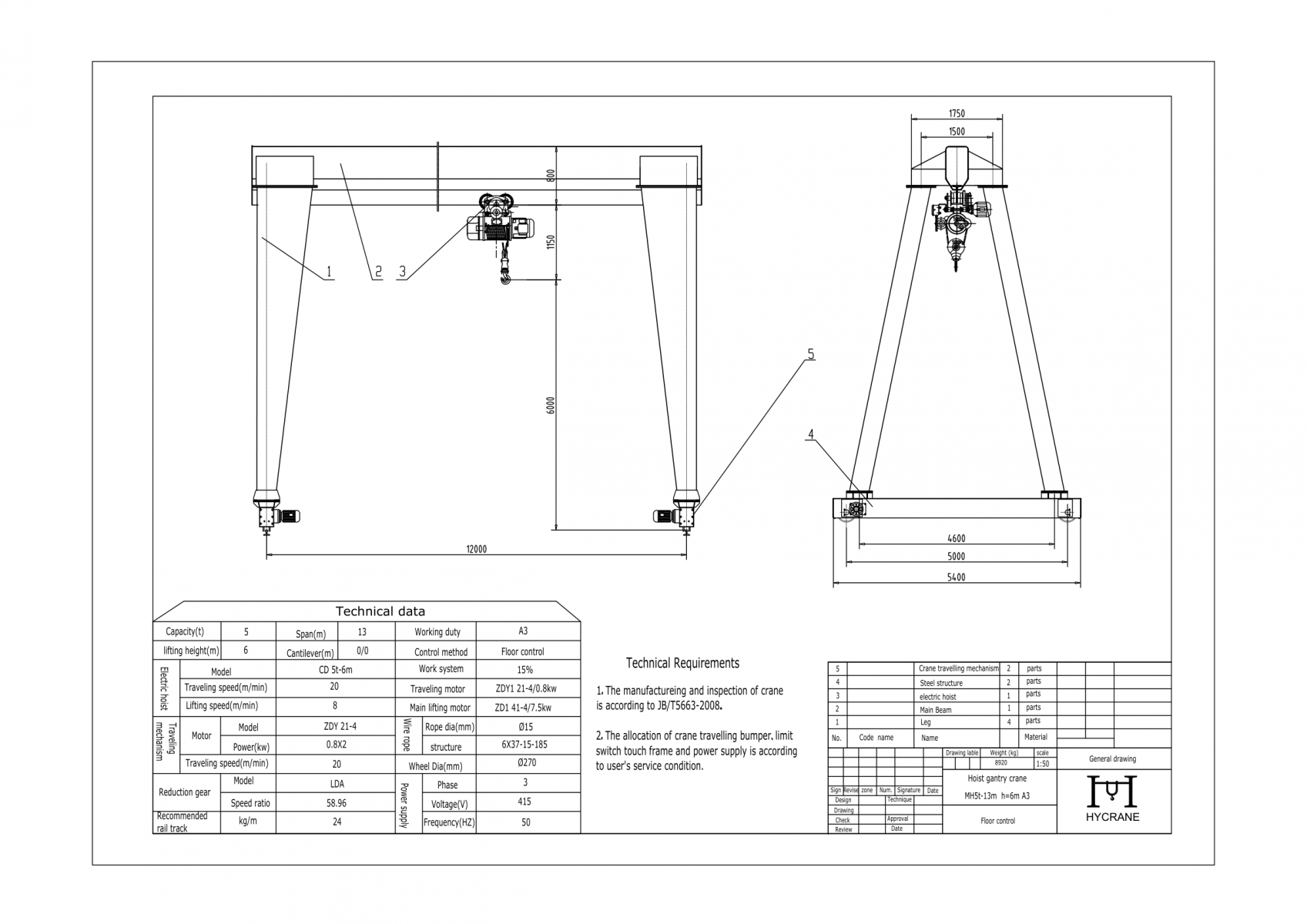

Technical Parameters
Item Unit Result
Lifting capacity ton 3.2-32
Lifting height m 6   9
Span m 12-30m
Working environment temperture °C -20~40
Travelling speed m/min 20
lifting speed m/min 8   0.8/8       7  0.7/7       3.5       3
travelling speed m/min 20
working system   A5
power source   three-phase 380V 50HZ
Free Spare Parts
We can supply all these crane spare parts freely for five years!
