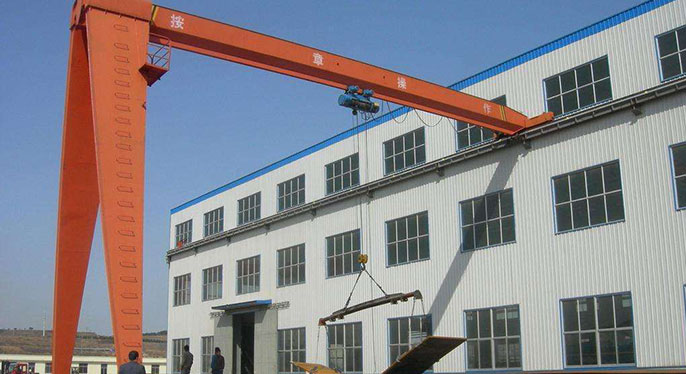

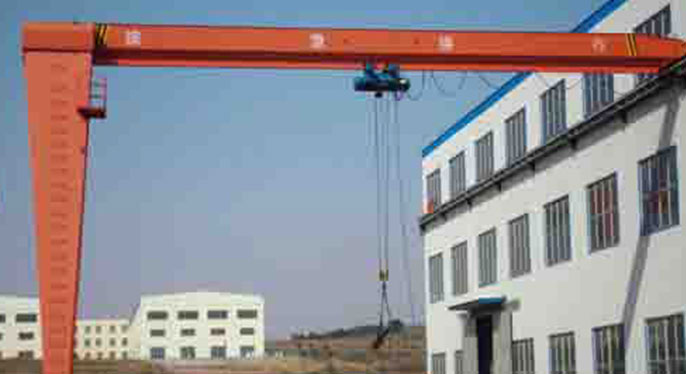

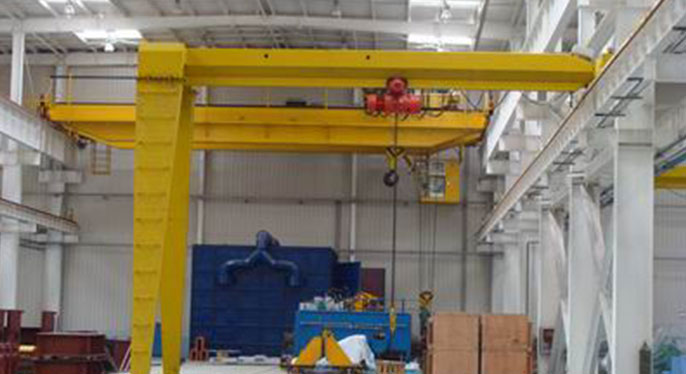

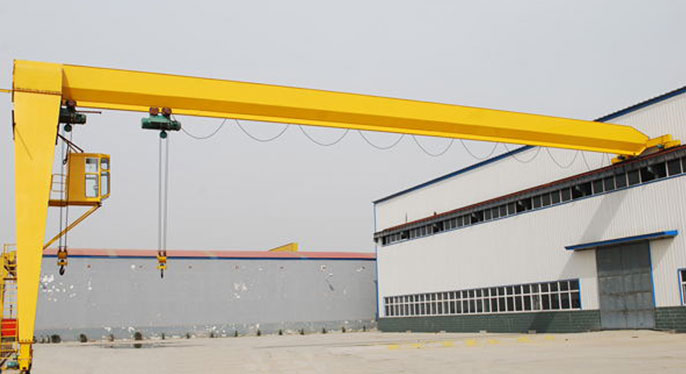

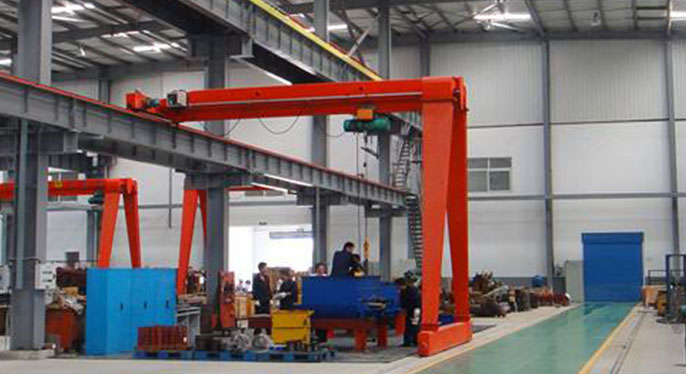

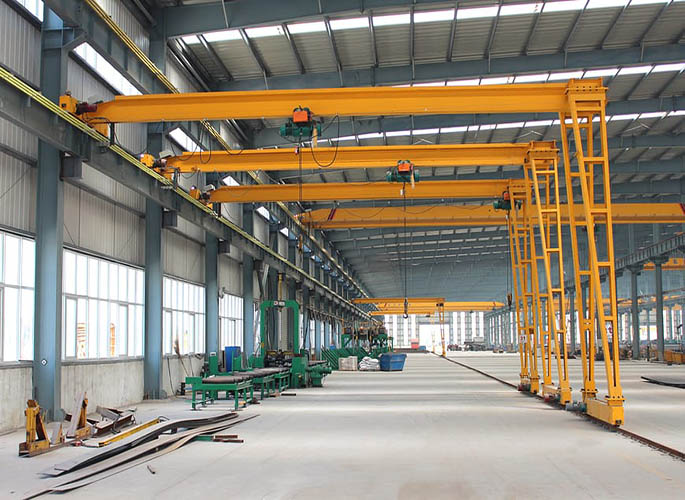

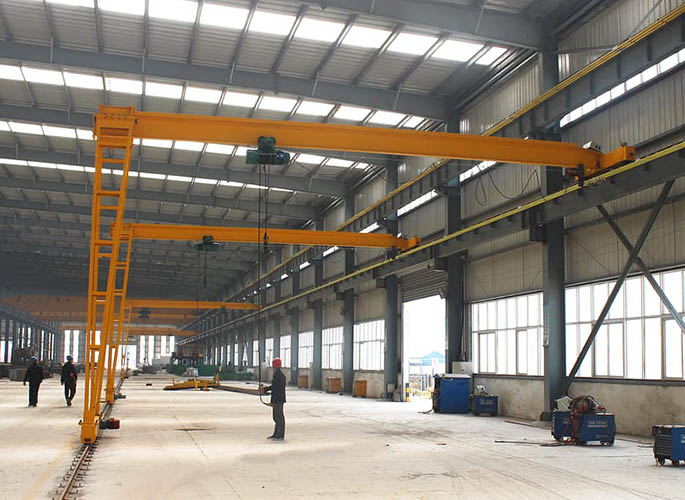

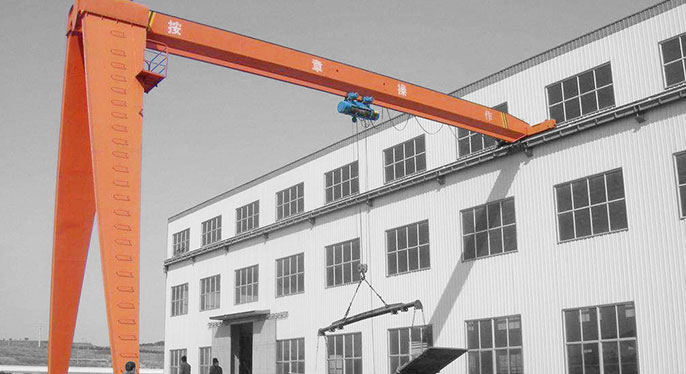

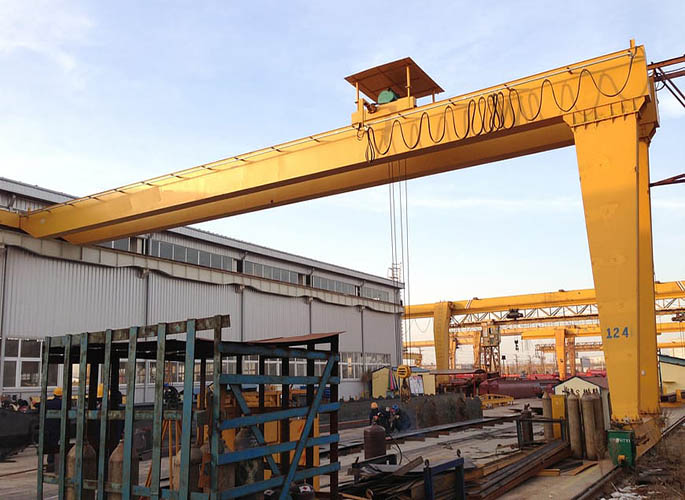

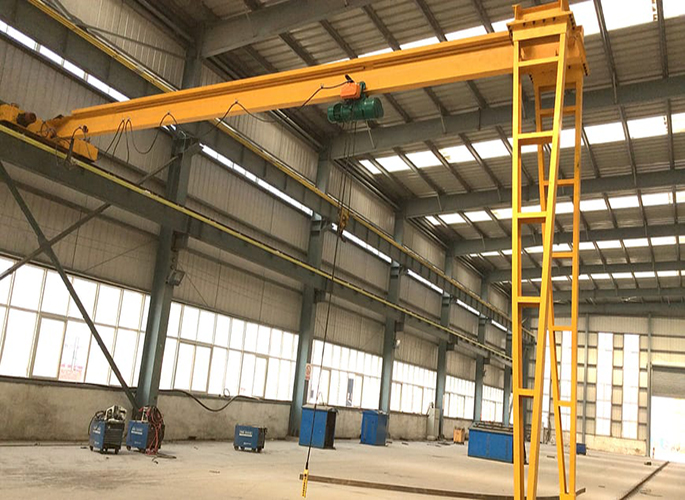

Single girder semi-gantry crane

The capacity:
2-10ton
The span:
10-20m
The working grade:
A5
Semi-gantry crane is a regular crane widely used at open ground and warehouses to load and unload. Electric hoist semi-gantry crane is used together with CD MD model electric hoist. It is track travelling small and medium sized crane. Its proper lifting capacity is 2 to 10 tons. proper span is 10 to 20 meters, Its proper working temperature is -20℃to 40℃.
Product description
Technical Parameters
Company strength
Product description
Semi-gantry crane is a regular crane widely used at open ground and warehouses to load and unload.
Electric hoist semi-gantry crane is used together with CD MD model electric hoist. It is track travelling small and medium sized crane. Its proper lifting capacity is 2 to 10 tons. proper span is 10 to 20 meters, Its proper working temperature is -20℃to 40℃.

The capacity:2-10ton
The span : 10-20m
The working grade : A5
The working temperature:-20℃ to 40℃

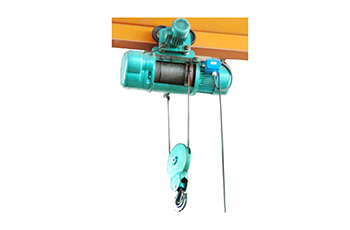

crane hoist

crane hoist

1.Can be CD (single lifting speed) or MD (dual lifting speed) model    2.realize lifting and cross travel functions.

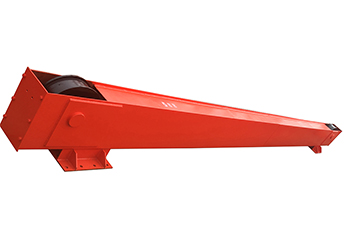

ground beam

1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

ground beam

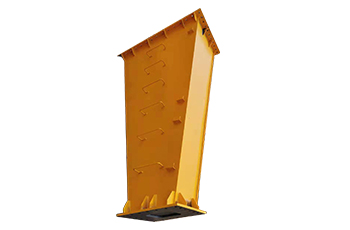

crane leg

crane leg

1.supporting effect    2.ensure safety and stability    3.improve the lifting characteristics

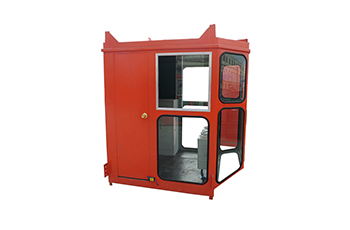

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

crane cabin

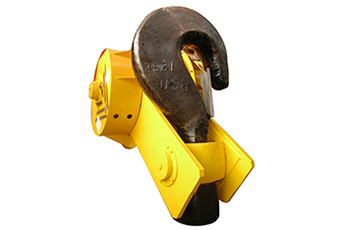

crane hook

crane hook

1.material:DG20,16Mn,20MnSi,30MnSi    2.grade:m,p,t    3.capacity:2-10t

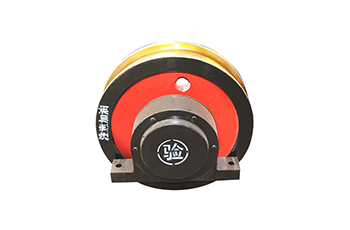

crane wheel

1.Material: ZG55,ZG65,ZG50SiMn or on request    2.wheel diameter: Φ250mm-Φ800mm.

crane wheel
Technical Parameters
Item Unit Result
Lifting capacity ton 2-10
Lifting height m 6   9
Span m 10-20
Working environment  temperature °C -20~40
Travelling speed m/min 20-40
lifting speed m/min 8   0.8/8          7  0.7/7
travelling speed m/min 20
working system   A5
power source   three-phase 380V 50HZ
