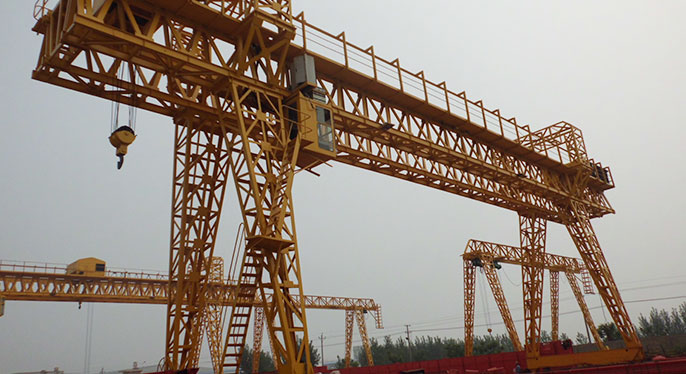

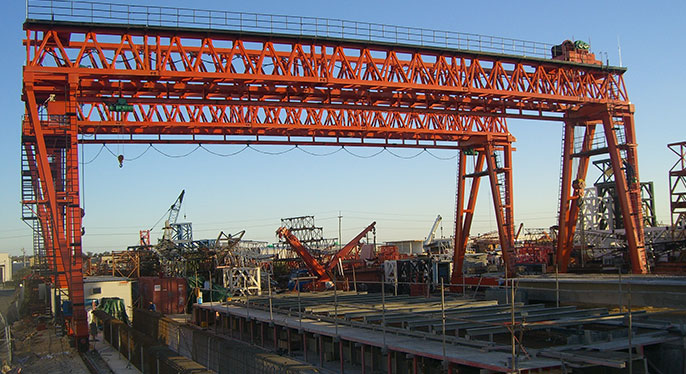

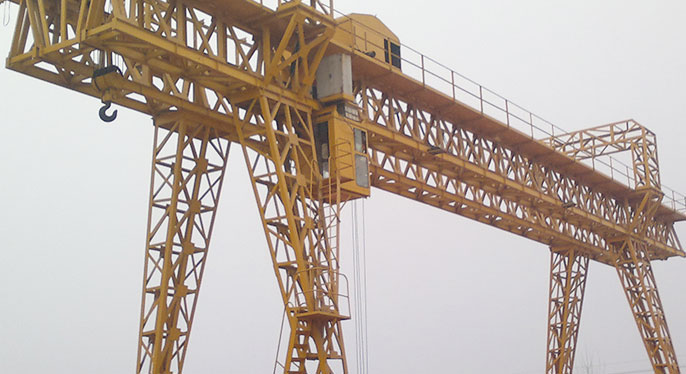

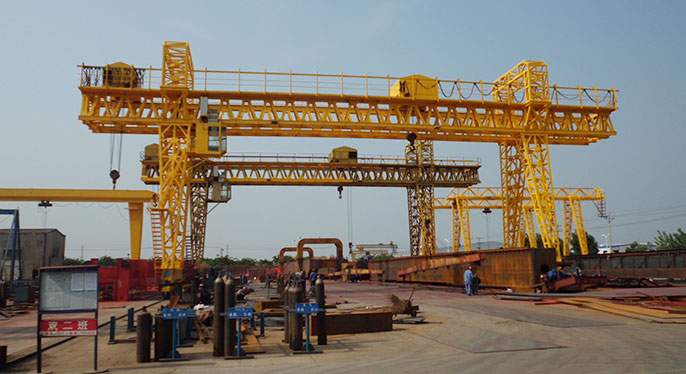

Truss double girder gantry crane
Truss double girder gantry crane
Truss double girder gantry crane
Truss double girder gantry crane
Truss double girder gantry crane
Truss double girder gantry crane
Truss double girder gantry crane
Truss double girder gantry crane
Truss double girder gantry crane
Truss double girder gantry crane

Truss double girder gantry crane

Lifting capacity:
5-320ton
The span:
18-35m
The working grade:
A5
Truss double girder gantry crane is made up of bridge, trolley, crane traveling mechanism and electric system.All the procedures are finished in the operating room Truss double girder gantry crane is widely used in plants, warehouses, material stocks to lift goods.
Product description
Technical Parameters
Certifications
Product description

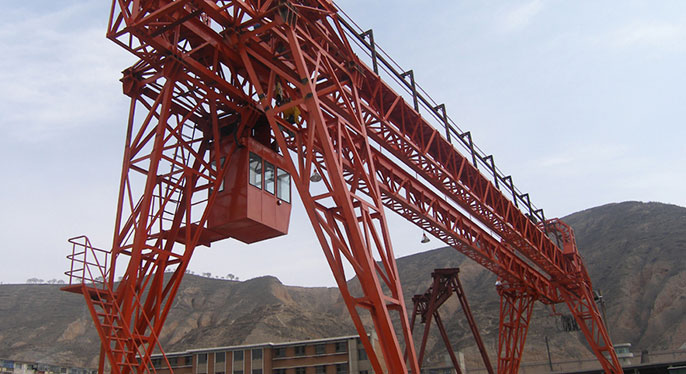

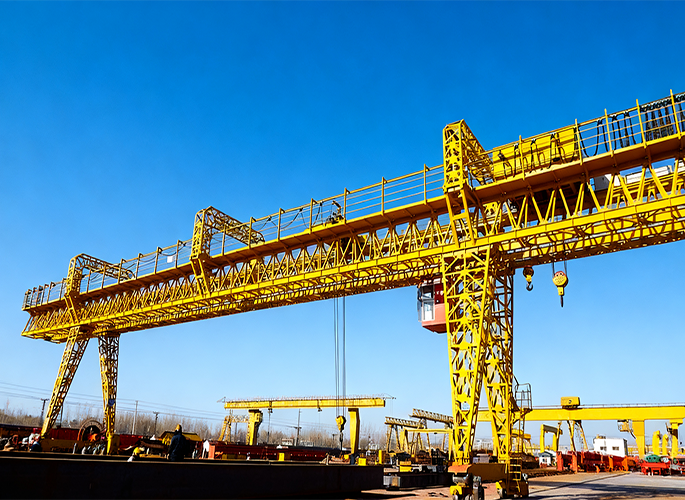

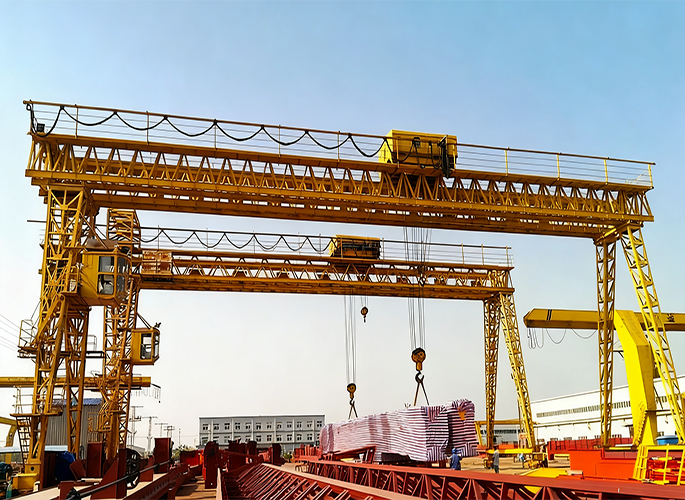

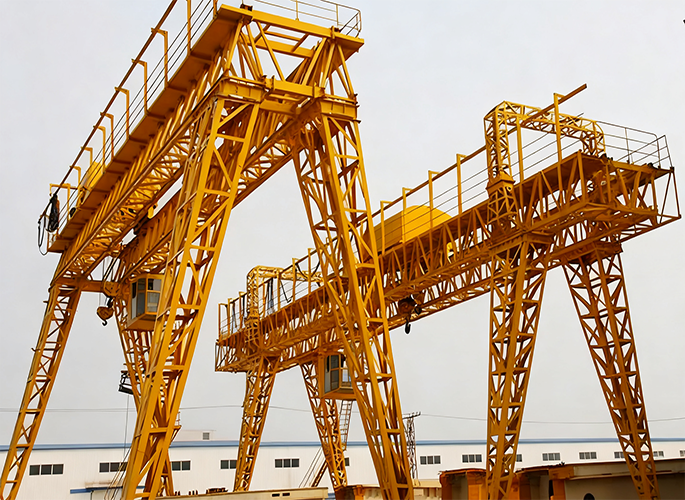

Truss type double girder Gantry Crane are made up of bridge, trolley, crane traveling mechanism and electric system. All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work. According to the structure of the leg can be divided into A type, U type, L type, ect.

Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations. we could be customized according different working situation or client's request.

The capacity:5-320ton
The span : 18-35m
The working grade : A5
The working temperature:-20℃ to 40℃

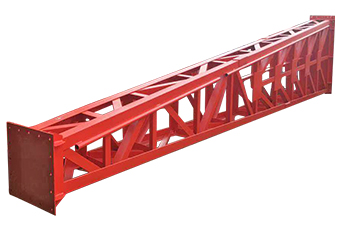

Truss double girder gantry crane leg

crane leg

1.supporting effect    2.ensure safety and stability    3.improve the lifting characteristics

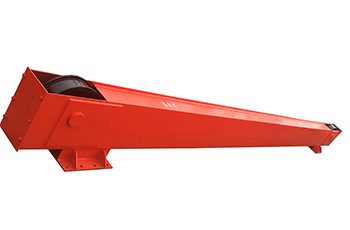

ground beam

1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

Truss double girder gantry crane ground beam

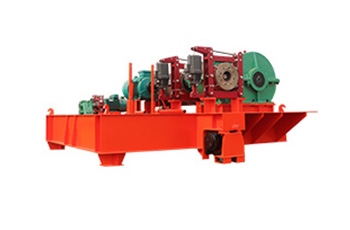

Truss double girder gantry crane trolley

crane trolley

1.high working duty hoist mechanism    2.working duty:A5    3.capacity:5-320t

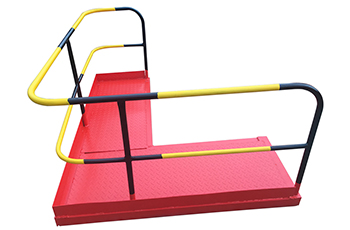

ladder platform

1.Integrated welding ladder    2.mainly used for product repair

Truss double girder gantry crane ladder platform

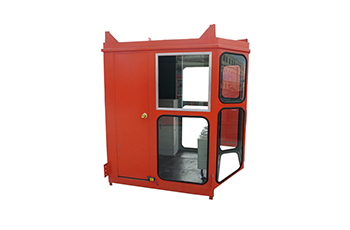

Truss double girder gantry crane cabin

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

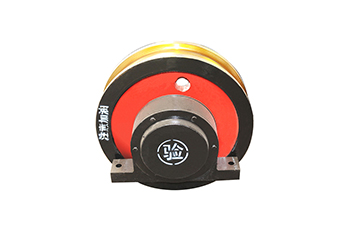

crane wheel

1.Material: ZG55,ZG65,ZG50SiMn or on request    2.wheel diameter: Φ250mm-Φ800mm.

Truss double girder gantry crane wheel


Technical Parameters
Item Unit Result
Lifting capacity ton 5-320
Lifting height m 3-30
Span m 18-35
Working environment temperature °C -20~40
Lifting Speed m/min 5.9-16.7
Trolley Speed m/min 34-44.6
Working system   A5
Power source   three-Phase A C 50HZ 380V
Free Spare Parts

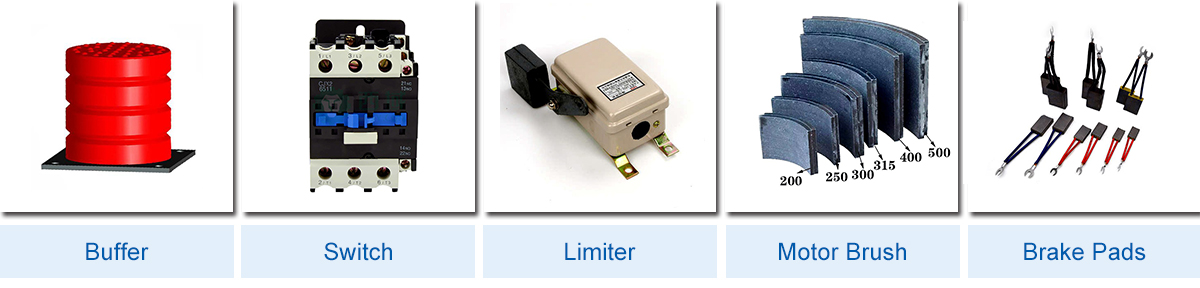

Truss double girder gantry crane parts We can supply all these crane spare parts freely for five years!
Certifications
Truss double girder gantry crane certificate
