Truss single girder gantry crane

The capacity:

3.2-32ton

Span length:

12-30m

Working grade :

Send email Get Quote Now

Product description

Technical Parameters

Certifications

Product description

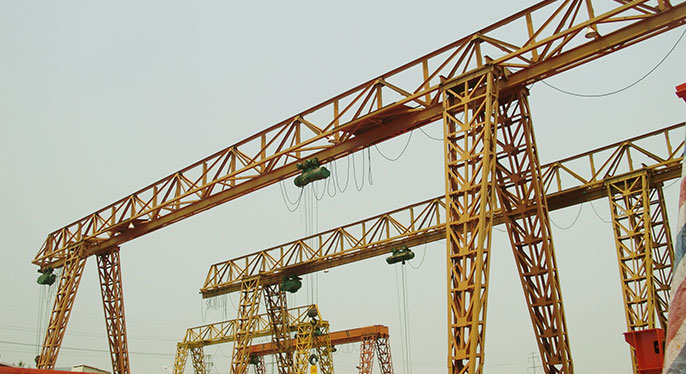

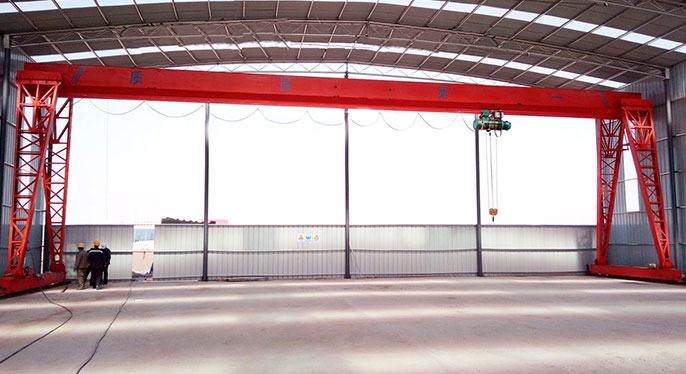

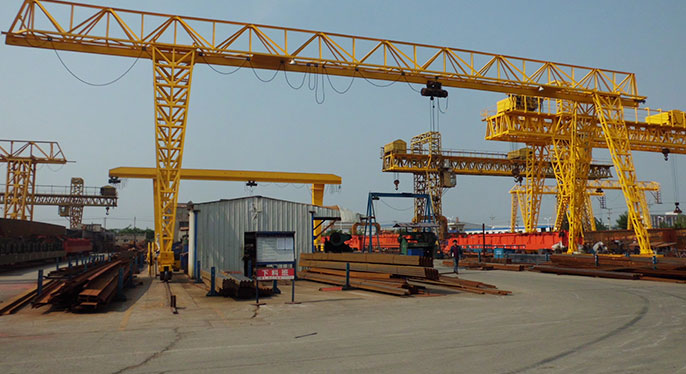

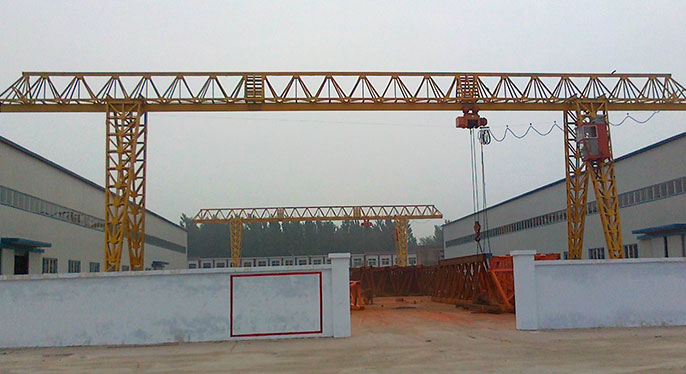

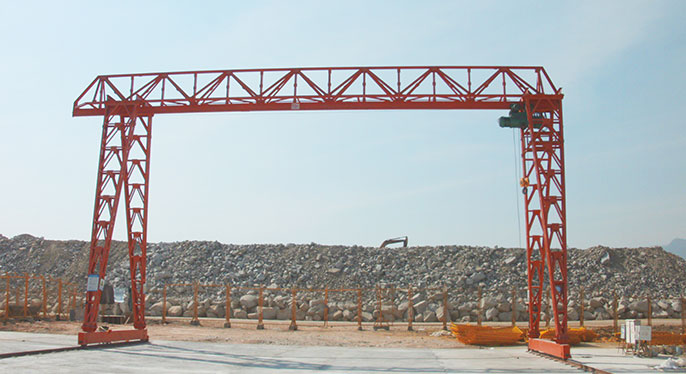

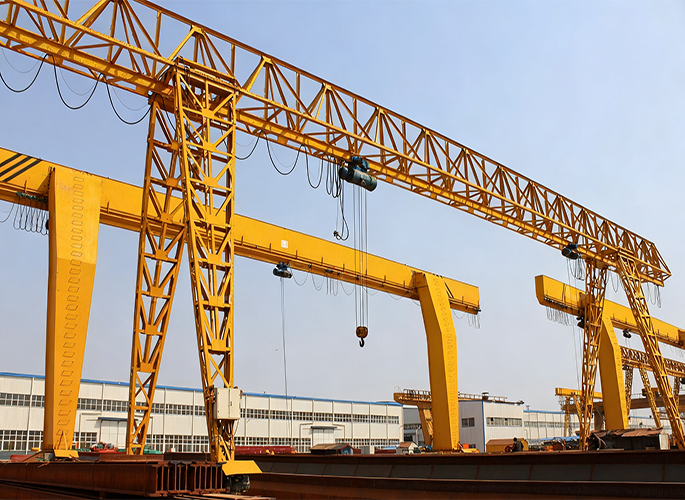

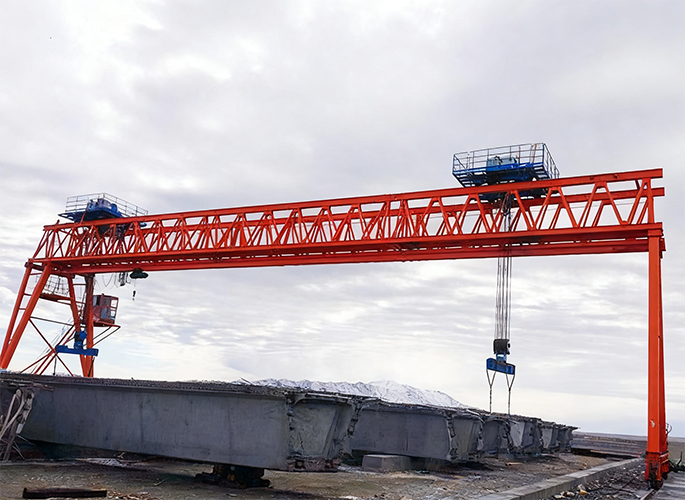

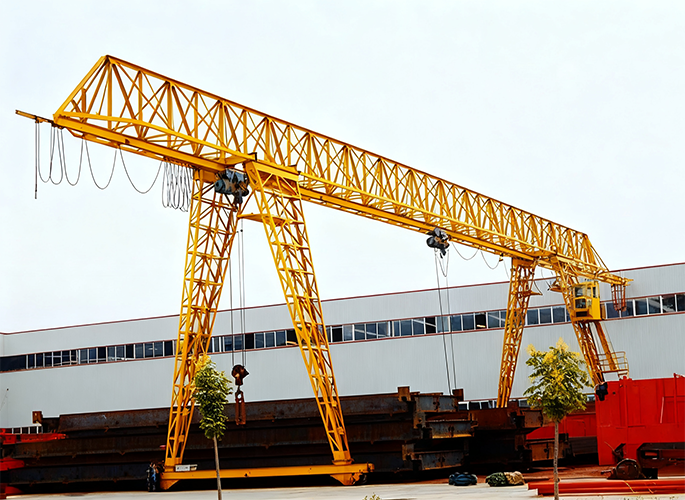

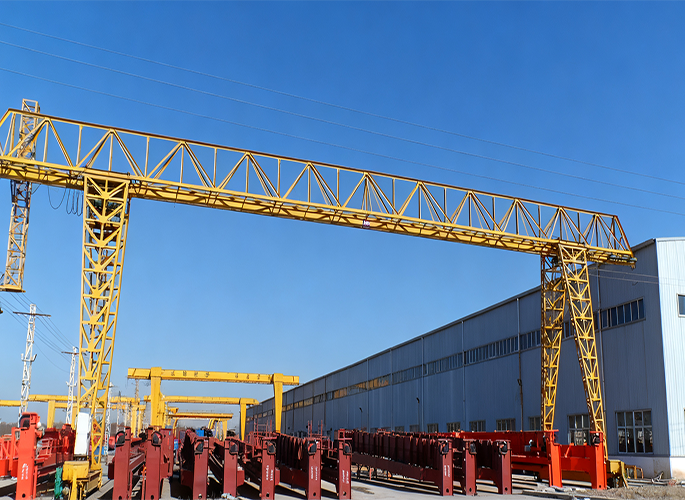

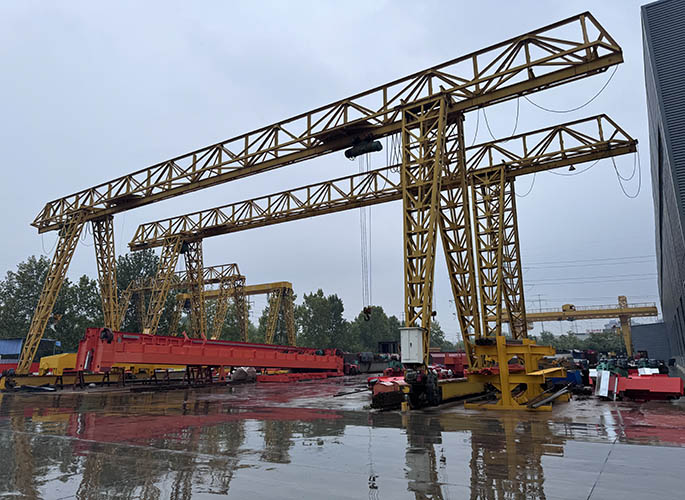

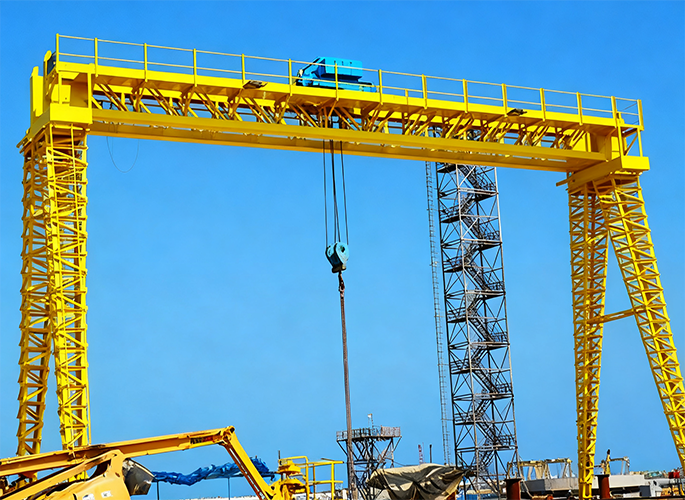

Truss type single girder gantry crane is consisted with gantry frame, main truss girder, legs, slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place.

Truss type single girder gantry crane is used together with CD MD model electric hoist. It is a track travelling small and medium-sized crane. Its proper lifting weight is 3.2 to 32 tons. proper span is 12 to 30 meters its proper working temperature is -20℃to 40℃.

The capacity:3.2-32ton
The span : 12-30m
The working grade : A5
The working temperature:-20℃ to 40℃

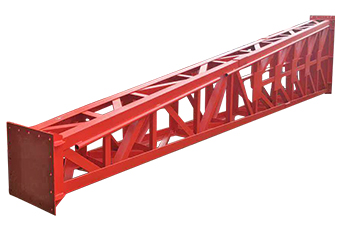

crane leg 1.supporting effect 2.ensure safety and stability 3.improve the lifting characteristics

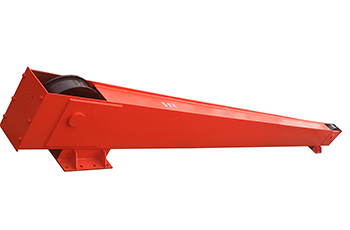

	ground beam 1.Walking ground beam is equipped with running devices at both ends.Achieve its travel on the track

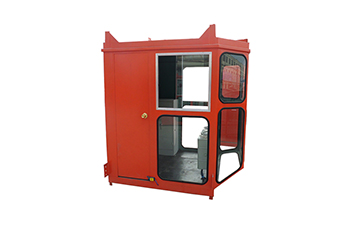

crane cabin 1.close and open type 2.air-conditioning provided 3.interlocked circuit breaker provided

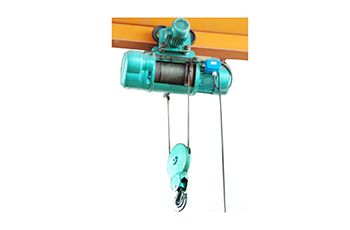

	crane hoist 1.Can be CD (single lifting speed) or MD (dual lifting speed) model 2.realize lifting and cross travel functions.

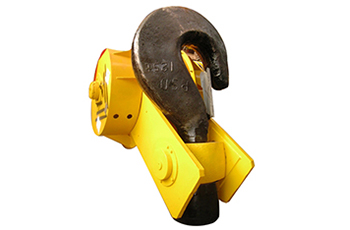

crane hook 1.material:DG20,16Mn,20MnSi,30MnSi 2.grade:m,p,t 3.capacity:3.2-32t

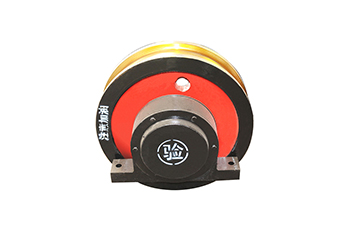

	crane wheel 1.Material: ZG55,ZG65,ZG50SiMn or on request 2.wheel diameter: Φ250mm-Φ800mm.

Technical Parameters

Item	Unit	Result
Lifting capacity	ton	3.2-32
Lifting height	m	6 9
Span	m	12-30m
Working environment temperature	°C	-20~40
Travelling speed	m/min	20
lifting speed	m/min	8 0.8/8 7 0.7/7 3.5 3
travelling speed	m/min	20
working system		A5
power source		three-phase 380V 50HZ

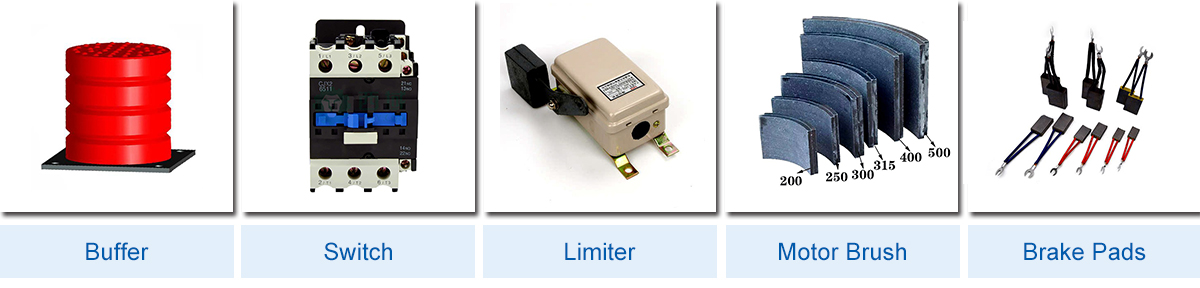

Free Spare Parts

We can supply all these crane spare parts freely for five years!
