Electric jib crane

The capacity:

0.5-16t

Slewing speed:

0.5-20 r/min

Hoisting speed:

8/0.8m/min

pillar crane often consists of an upright column, a rotating device and electric hoist, and the column is firmly fixed in the concrete foundation. The electric hoist undergoes straight line operation on the cantilever, and rotation degree of floor mounted jib crane can be up to 360 degrees, which can greatly enlarge its operation scope.

Send email Get Quote Now Catalogue Download

Product description

Technical Parameters

Company Introduction

Product description

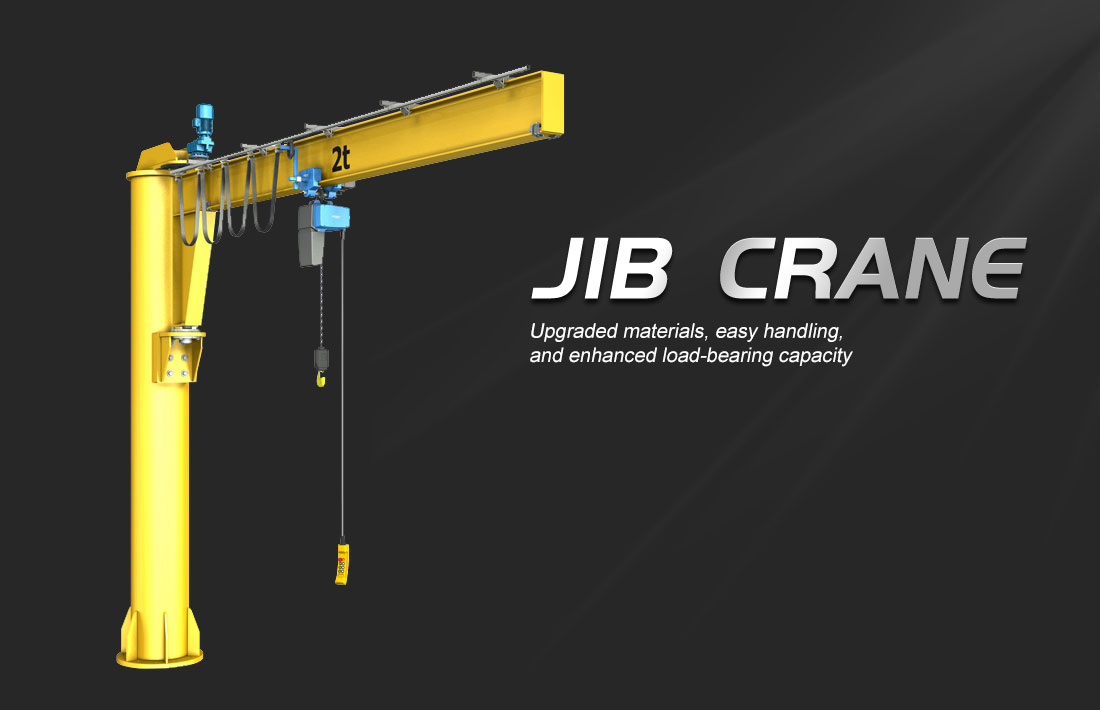

Floor mounted electric jib crane often consists of an upright column, a rotating device and electric hoist, and the column is firmly fixed in the concrete foundation. The electric hoist undergoes straight line operation on the cantilever, and rotation degree of floor mounted jib crane can be up to 360 degrees, which can greatly enlarge its operation scope. The cantilever adopts hollow type steel structure, and it has light weight, long lifting span, large lifting capacity and high durability.

Floor mounted electric jib crane adopts build-in travailing system and special engineering plastic bearing wheel, which has small friction, quick movement, small-sized structure and simple structure. Floor mounted electric jib crane is often find great application in steel plant manufacturing, railway, chemical industry, light industry production or maintenance situations, especially in short distance lifting operation and all kinds of frequent production lines.

1. Duty group: Class C (intermediate)
2. Lifting capacity: 0.5-16t
3. Valid radius: 4-5.5m
4. Slewing speed: 0.5-20 r/min
5. Hoisting speed: 8/0.8m/min
6.Circulate speed: 20 m/min

Technical Parameters

Item	Unit	Specifications
Capacity	ton	0.5-16
Valid radius	m	4-5.5
Lifting height	m	4.5/5
Hoisting speed	m/min	0.8 / 8
Slewing speed	r/min	0.5-20
Circulated speed	m/min	20
Slewing angle	degree	180°/270°/ 360°

Advantages

The trust of more than 1 million enterprises in the world covers dozens of countries such as the United States, Russia, South Korea, Saudi Arabia, The United Arab Emirates, Ukraine, Poland, Vietnam and Indonesia.

Factory inspection

Third party testing

Company Introduction


Integrity and innovation		Quality and service
HY Crane always adhere to the concept of integrity and innovation. Integrity makes the company lay a solid foundation and earn good reputation. Innovation is the inspiration that drives us to develop better and be a world class company.		HY Crane owns its own technology and expertised engineer with abundant experience. We are also equipped with advanced automated machines to improve the quality of our product. Quality and service is always our core competence.

Five years warranty

Free distribution of wearing parts

Provide assemble videos before shipment

Techincal support and field installation
