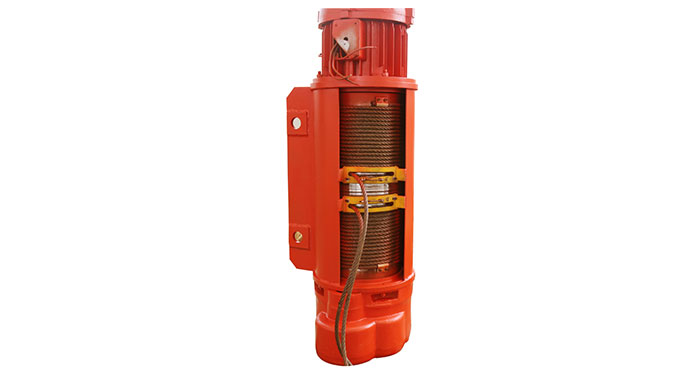

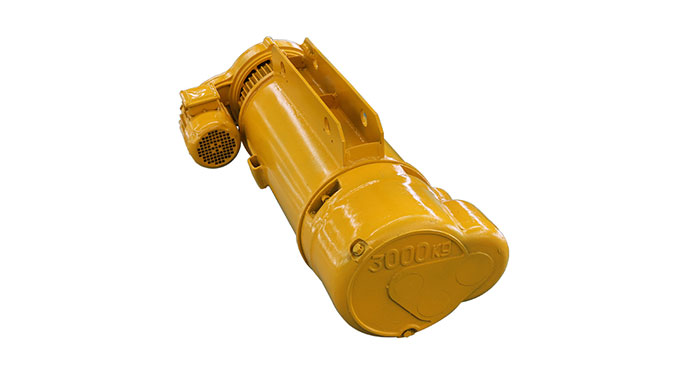

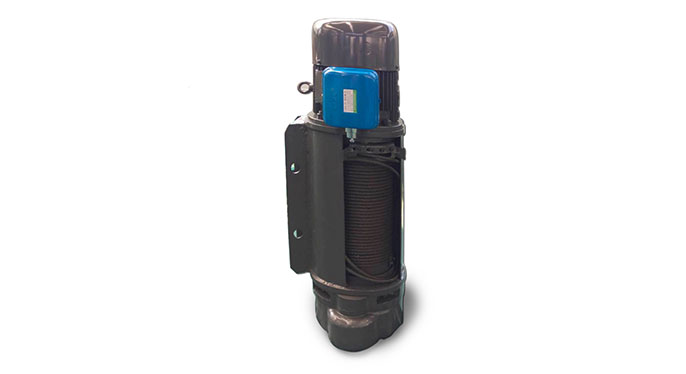

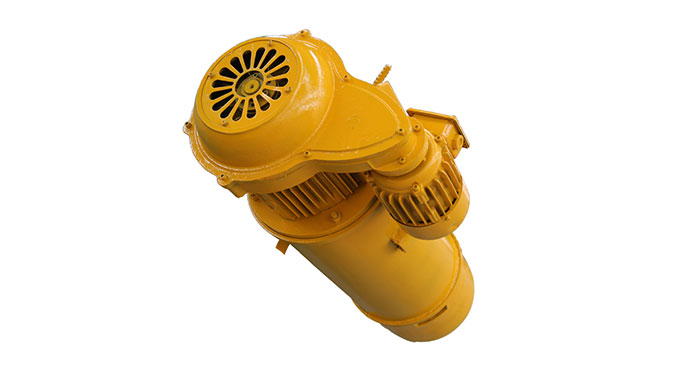

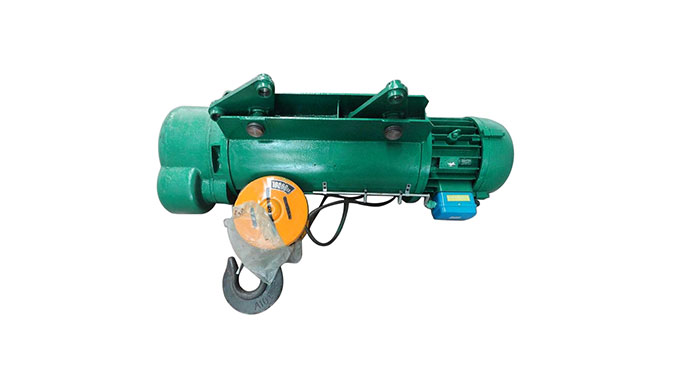

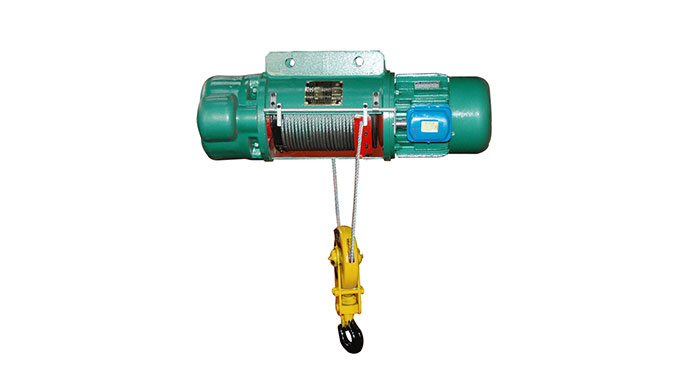

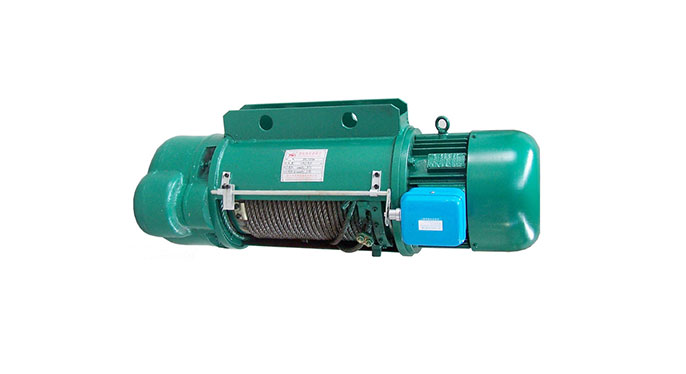

Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist
Electric wire rope hoist

Electric wire rope hoist

The capacity:
0.3-32ton
Lifting height:
3-30m
Lifting speed:
0.35-8m/min

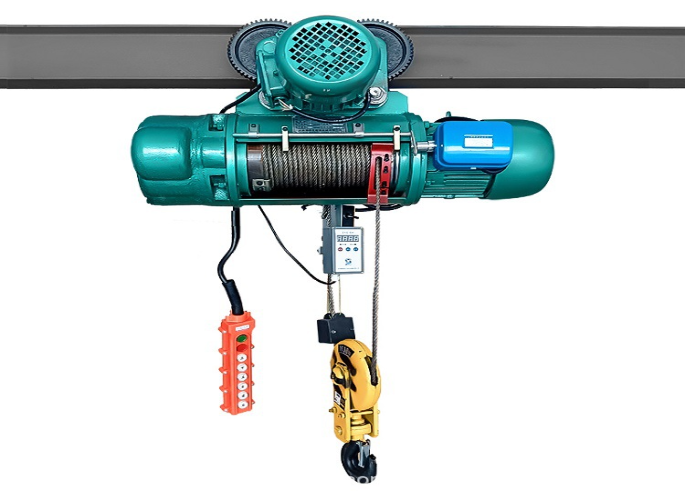

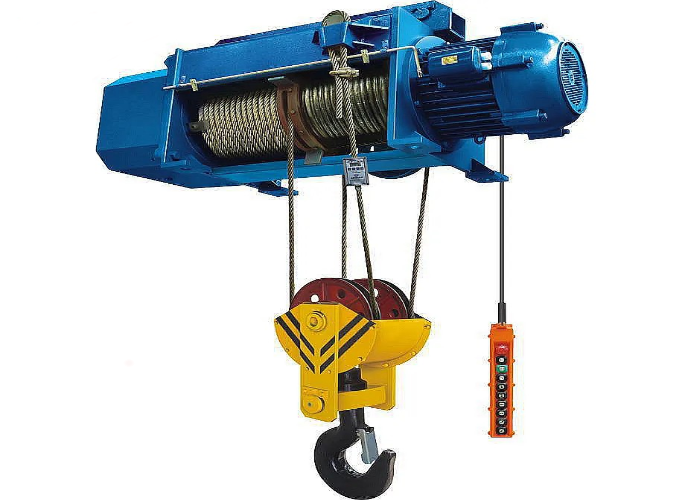

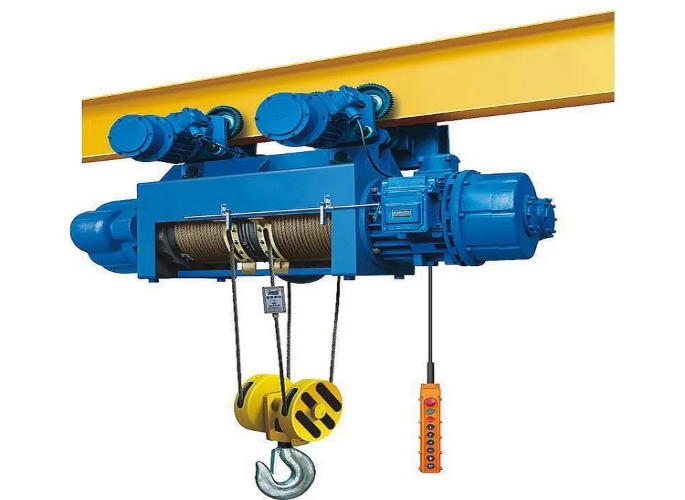

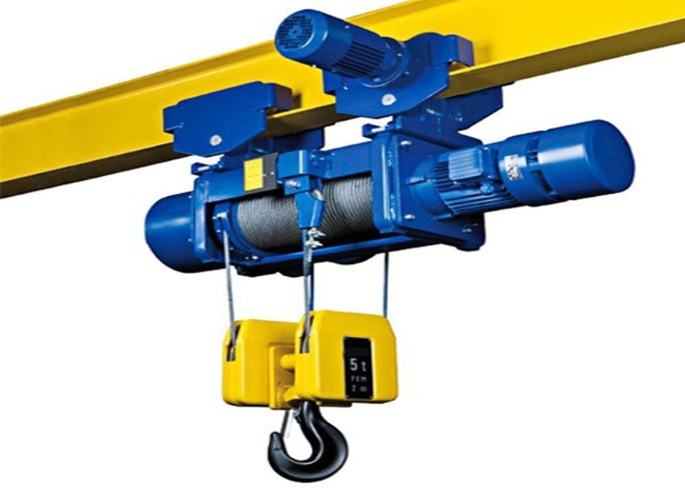

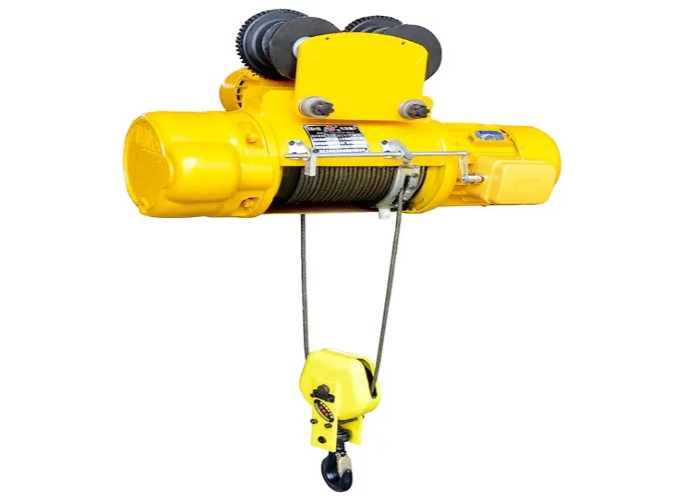

Electric wire rope hoist is a small lifting equipment, which is often composed by lifting engine, reducer, rolling drum, retainer limiter, roller fairlead, running mechanism and so on. Electric wire rope hoists have the advantages of compact structure, light weight, small volume, strong versatility, convenient operation and so on, which can be installed in the I-steel structure, or it can also be installed in the main beam of single beam crane, double beam crane, gantry crane, cantilever crane and so on.
Product description
Technical Parameters
Certifications
Product description
Electric wire rope hoist is a small lifting equipment, which is often composed by lifting engine, reducer, rolling drum, retainer limiter, roller fairlead, running mechanism and so on. Electric wire rope hoists have the advantages of compact structure, light weight, small volume, strong versatility, convenient operation and so on, which can be installed in the I-steel structure, or it can also be installed in the main beam of single beam crane, double beam crane, gantry crane, cantilever crane and so on.
The engine of 2 ton electric wire rope hoist often adopts cone type motor, which can stop automatically after locking the brake. In accordance with that, the wire rope often adopts coasting steel wire rope, galvanized steel wire rope or smooth steel wire rope. Electric wire rope hoist 500kg is mainly used in all kinds of promotion, transfer, loading and unloading works, heavy tank welding works, flip welding, large and medium-sized concrete plant installation works.
Moreover, coffing wire rope hoist can also be used to construction installation company, civil engineering and bridge construction, industrial power, shipbuilding, automobile manufacturing, highway, bridge, metallurgy, mine, slope tunnel, mechanical equipment, well control protection and other infrastructure projects.
In contrast with electric wire rope hoists manufacturers, Haoyu Group has high reliability and good reputation, which often provides the most complete electric wire rope hoist specifications and the most reasonable electric wire rope hoist price. If you are looking for reliable electric wire rope hoist suppliers, contact us now to get a free quote.

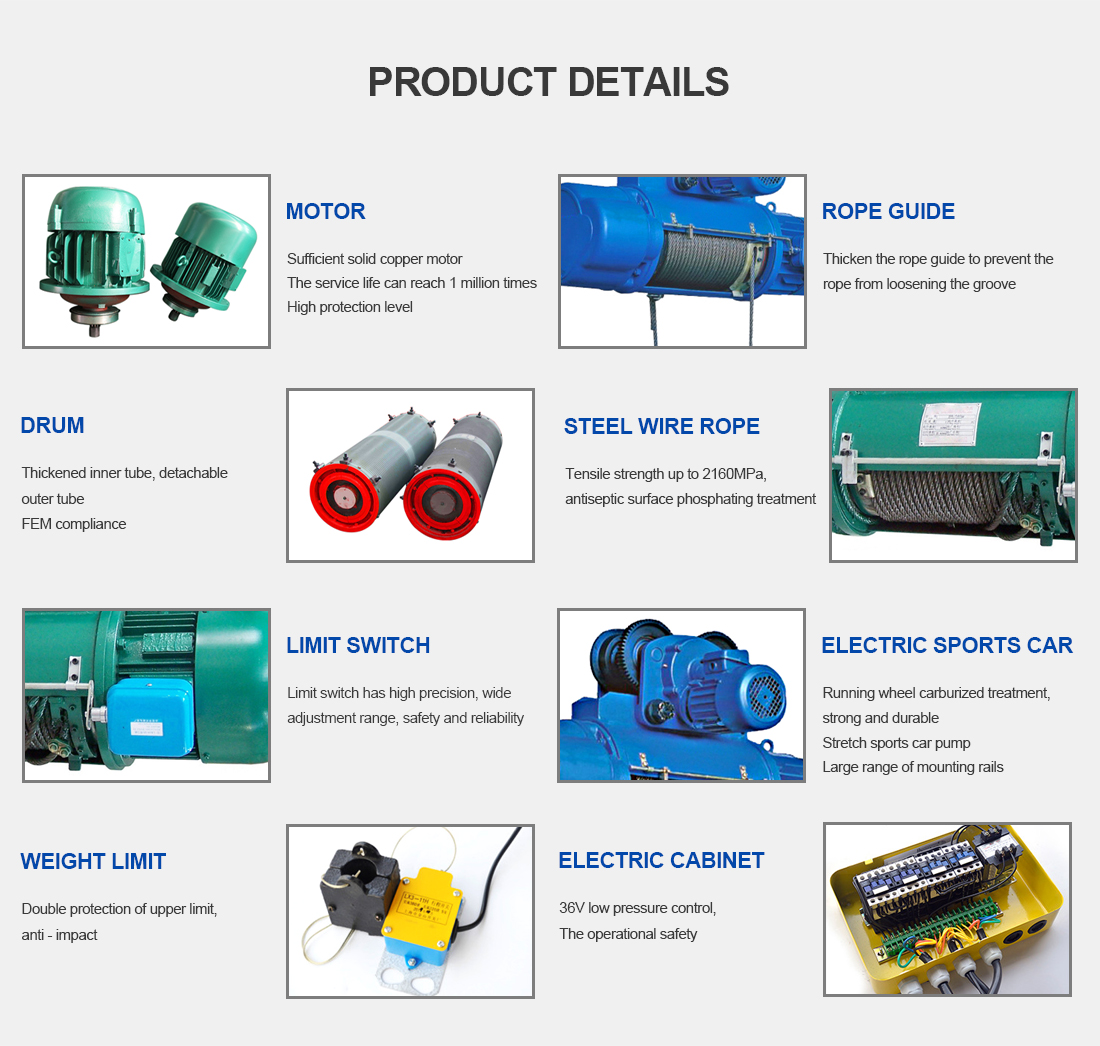

Wire rope
The wire rope complies with the exporting standards. The leading rope taken by the drum will not slip sideways when slack
Hook
The hook can rotate 360 degree and has safety latch, safe and reliable.
The hook block is tested to 150% of full load before assembly. The rope sheaves are fully protected with steel casting
Motor
It is of conical rotor with brake inside, stable starting and effective braking, safe usage and easy maintenance
Rope guide
Rope guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the hoist is in unloaded condition
Reducer
The gear is specially treated for high wear resistance. Each geared shaft assembly is supported on ball or roller bearings to ensure smooth and low-friction operation
Control
Pendant control and remote control
Drum
It is grooved hoist drum, seamless pipe of adequate length to be winded in one layer and to provide proper support for the rope to minimize abrasive wear. Drum shaft revolves on ball bearings for ensuring smooth running
Technical Parameters
Item Unit Specfications
capacity ton 0.3-32
lifting height m 3-30
lifting speed m/min 0.35-8m/min
travelling speed m/min 20-30
wire rope m 3.6-25.5
working system   FC=25%(intermediate)
Power supply   220 ~ 690V,50/60Hz,3Phase
Free Spare Parts
We can supply all these crane spare parts freely for five years!
