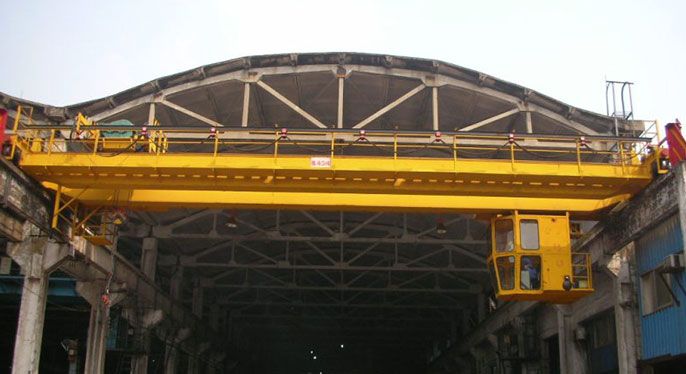

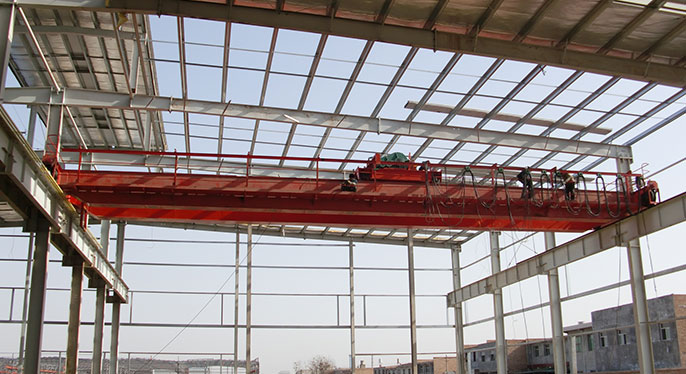

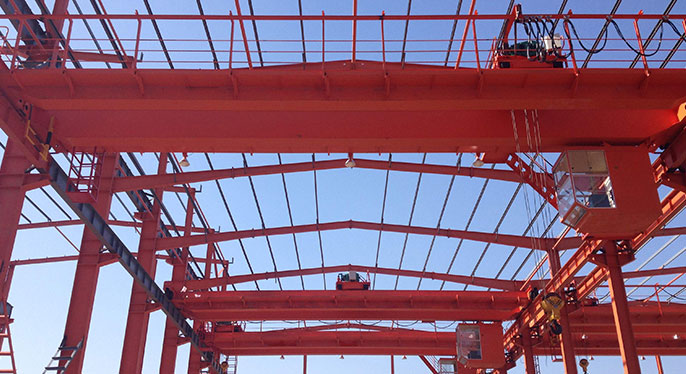

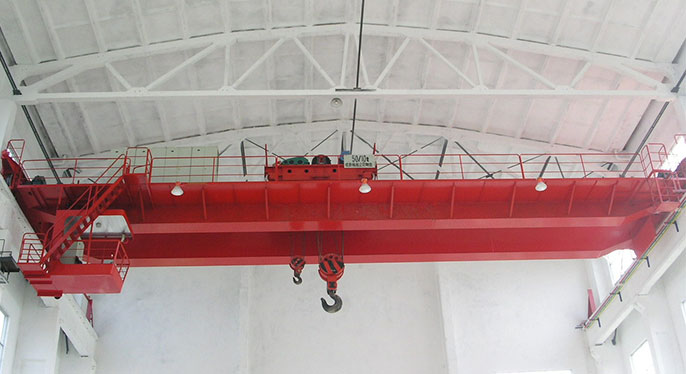

Double girder overhead crane
Double girder overhead crane
Double girder overhead crane
Double girder overhead crane
Double girder overhead crane
Double girder overhead crane
Double girder overhead crane
Double girder overhead crane
Double girder overhead crane
Double girder overhead crane

Double girder overhead crane

The capacity:
5-350ton
The span :
10.5-31.5m
Working grade :
A5-A6
Double girder overhead crane mainly consists of bridge, trolley travelling mechanism, crab and electrical appliances, and is divided into 2 working grades of A5 and A6 according to the use frequency.
Product description
Technical Parameters
Certifications

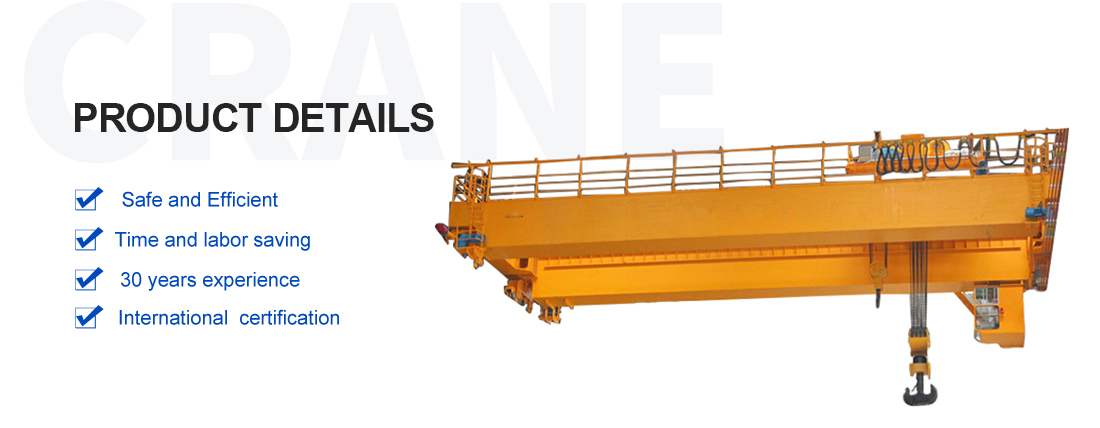

Product description
Double girder overhead crane mainly consists of bridge, trolley travelling mechanism, crab and electrical appliances, and is divided into 2 working grades of A5 and A6 according to the use frequency.

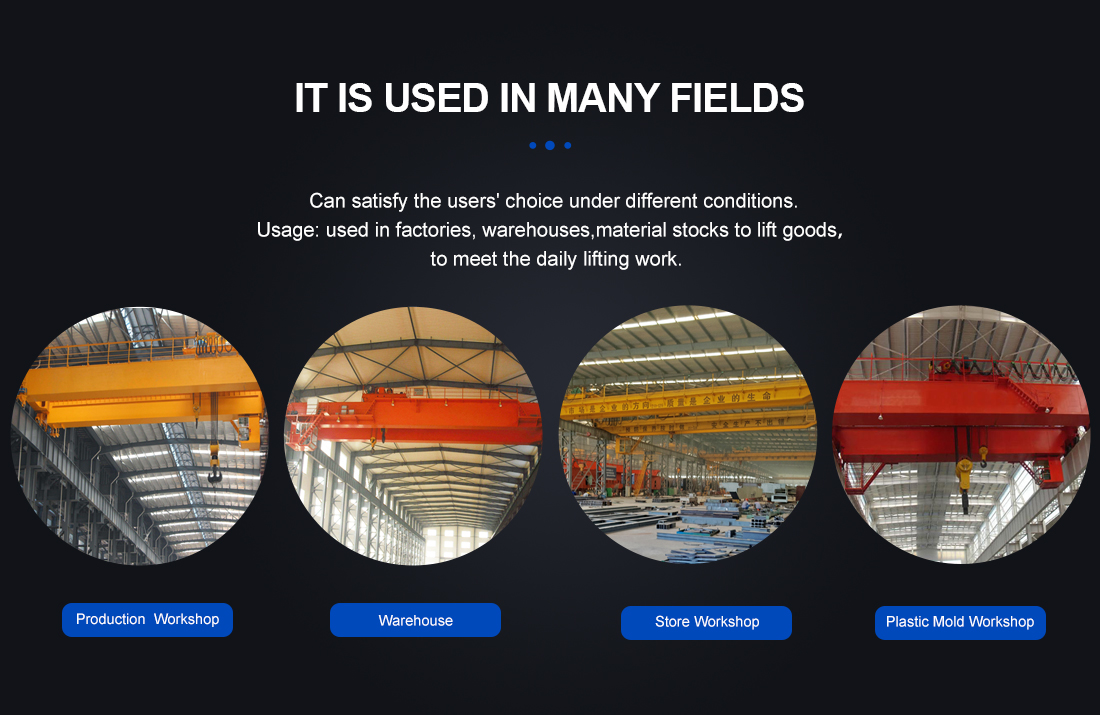

Double girder overhead crane can be used to lift loads from 5 tons to 350 tons, which is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
Double girder overhead crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.

Double girder overhead crane utilized for medium to heavy fabrication. The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.
Control mode: Cabin control/remote control/control panel with pendant line


The capacity:5-350ton
The span : 10.5-31.5m
The working grade : A5-A6
The working temperature:-25℃ to 40℃

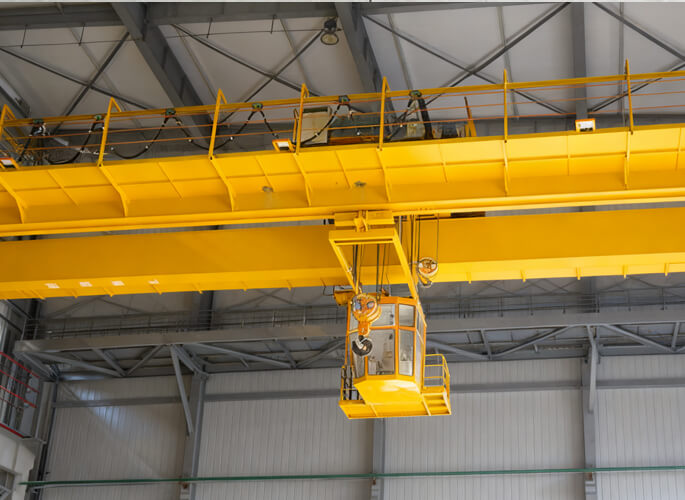

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

crane trolley

1.high working duty hoist mechanism    2.working duty:A3-A8    3.capacity:5-350t

crane hook

1.material:DG20,16Mn,20MnSi,30MnSi    2.grade:m,p,t    3.capacity:5-350t

remote controller

1.apollo,HBC,WICONTEK,telecrane  2.2/4/6/8/10/12keys for choosing  3.voltage:as required

crane motor

1.YZR,YZP are all provided    2.power:1.8-280Kw    3.number of pole-pairs:4,6,8,10

reducer

1.type:250,350,400,500,650,750,850,1000       2.ratio:8.23-317.28

Technical Parameters
Item Unit Result
Lifting capacity ton 5-350
Lifting height m 1-20
Span m 10.5-31.5
Working environment temperature °C -25~40
Hoisting Speed m/min 5.22-12.6
trolley speed m/min 17.7-78
Working system   A5-A6
Power source   three-Phase A C 50HZ 380V
Free Spare Parts
We can supply all these crane spare parts freely for five years!
