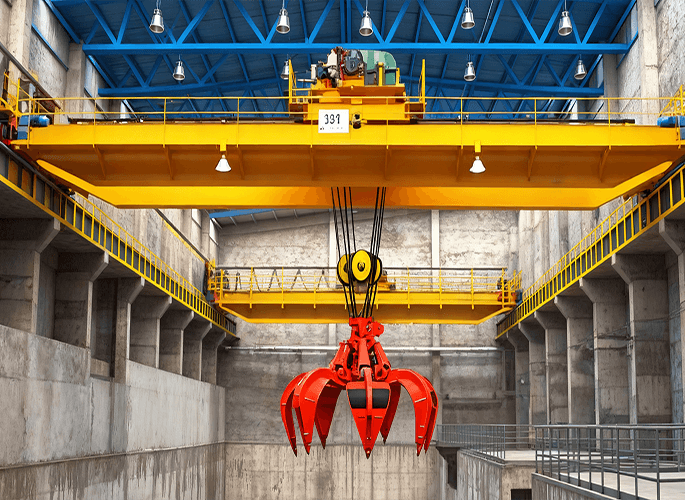

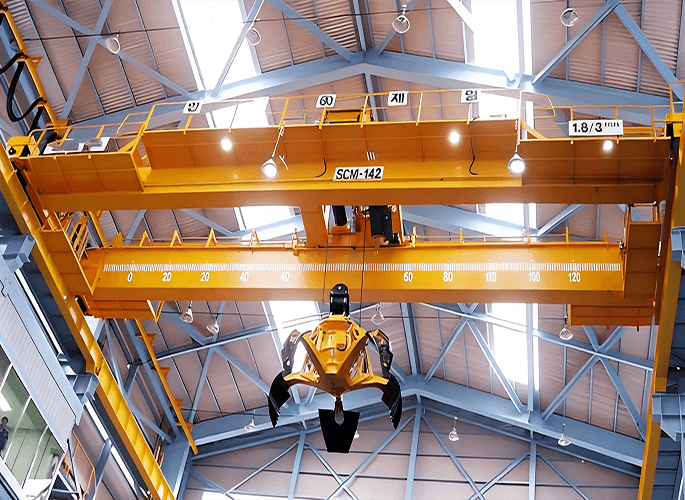

Grab overhead crane

The capacity:
5-25ton
The span :
10.5-31.5m
Working grade :
A6

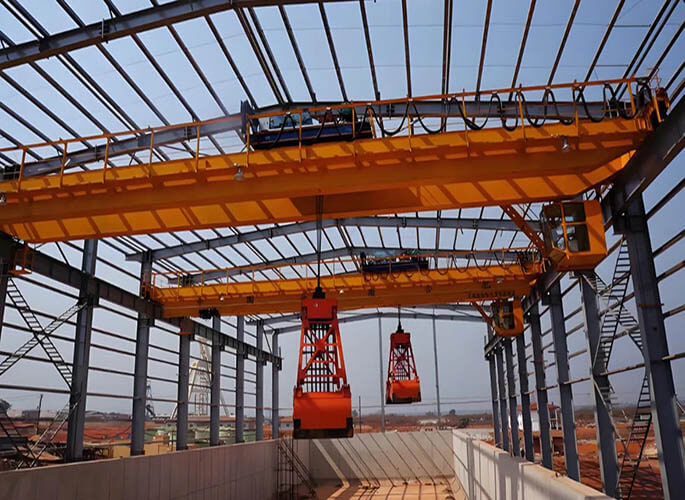

Grab bucket overhead crane is widely used in bulk materials handling and transportation works of power plant, yard, workshop, dock etc. Grab bucket bridge crane is mainly composed by box girder, grab trolley, trolley traveling mechanism, operation cab and electric control system, and its working class is A6 at most.
Product description
Technical Parameters
Company Introduction
Product description
Grab bucket overhead crane is widely used in bulk materials handling and transportation works of power plant, yard, workshop, dock etc. Grab bucket bridge crane is mainly composed by box girder, grab trolley, trolley traveling mechanism, operation cab and electric control system, and its working class is A6 at most. The rated lifting weight of grab bucket overhead crane is generally 5 to 20t, and it also has simple structure, high lifting speed, flexible work and reliable work.
Grab overhead crane is a kind of automatic feeding machinery, and the unloading and loading movement is controlled in the operation cabin, which don’t need auxiliary personnel so as to decrease work intensity, saving working time and improve working efficiency to a great extent. There are many types of grab overhead crane for sale with top quality, such as garbage overhead crane, grain grab overhead crane etc. Our grab bucket overhead crane can be used to grab different materials with the adoption of different types of grab bucket.

Grab overhead crane utilized for medium to heavy fabrication. These bridge crane are ideally suited to low buildings, where crane magnet is required.
The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system. The raising assembly is crane grab.
Control mode: Cabin control/remote control/control panel with pendant line

The capacity:5-25ton
The span : 10.5-31.5m
The working grade : A6
The working temperature:-25℃ to 40℃

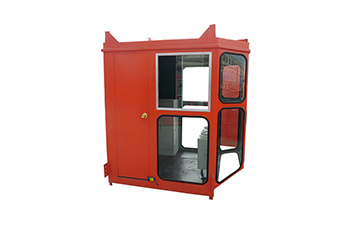

Grab overhead crane cabin

crane cabin

1.close and open type    2.air-conditioning provided    3.interlocked circuit breaker provided

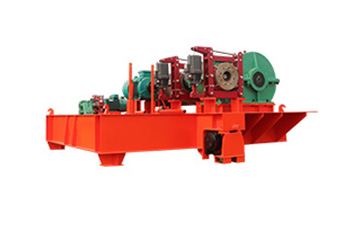

crane trolley

1.high working duty hoist mechanism  2.working duty:A3-A8    3.capacity:5-25t

Grab overhead crane trolley

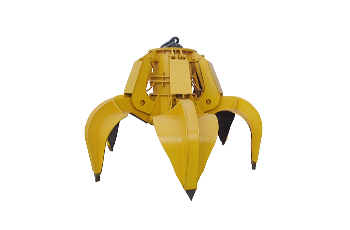

Grab overhead crane grab

crane grab

1.Double rope,four rope    2.volume:45m3    3.capacity:5-25t

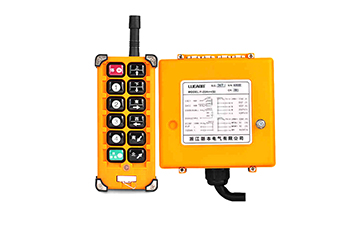

remote controller

1.apollo,HBC,WICONTEK,telecrane    2.2/4/6/8/10/12keys for choosing    3.voltage:as required

Grab overhead crane remote controller

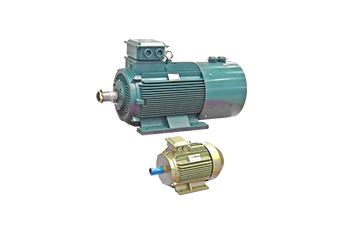

Grab overhead crane motor

crane motor

1.YZR,YZP are all provided    2.power:1.8-280Kw    3.number of pole-pairs:4,6,8,10

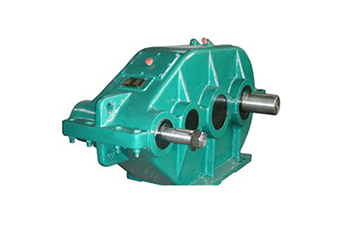

reducer

1.type:250,350,400,500,650,750,850,1000    2.ratio:8.23-317.28

Grab overhead crane reducer
Technical Parameters
Item Unit Result
Lifting capacity ton 5-25
Lifting height m 10-26
Span m 10.5-31.5
Working environment temperature °C -25~40
Hoisting Speed m/min 40.1-48.6
Crab Speed m/min 43.2-45.6
Trolley Speed m/min 87.3-113
Working system   A6
Power source   three-Phase A C 50HZ 380V
