Single girder overhead crane

The capacity:

1-30ton

The span:

7.5-31.5m

Working grade:

A3-A5

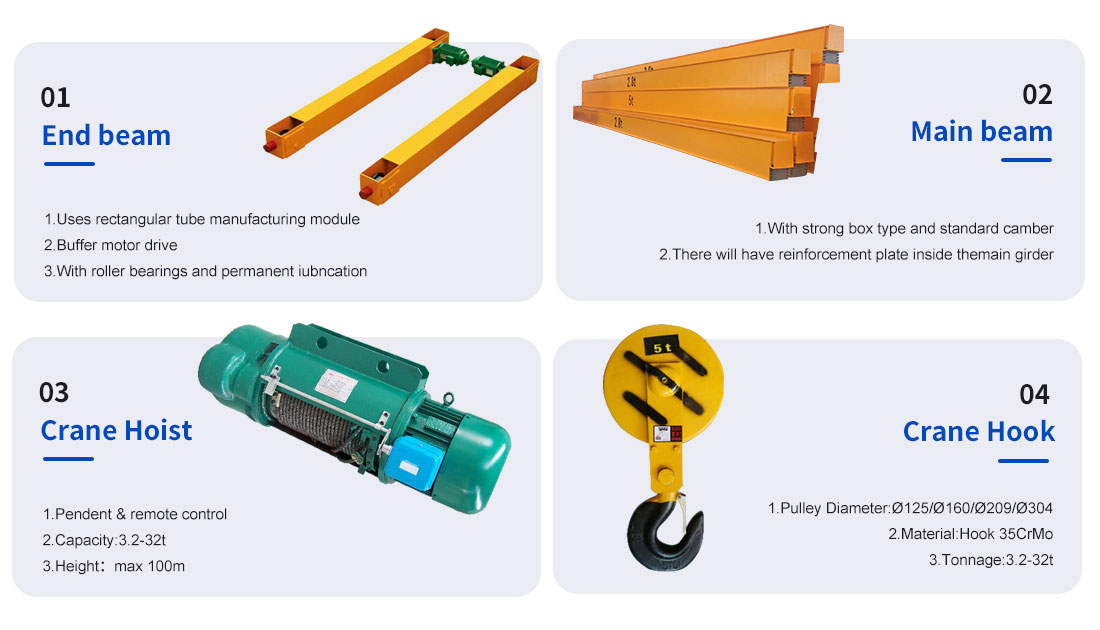

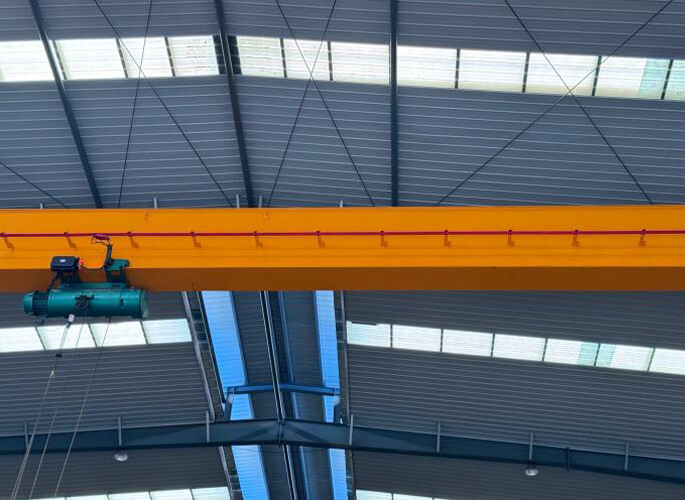

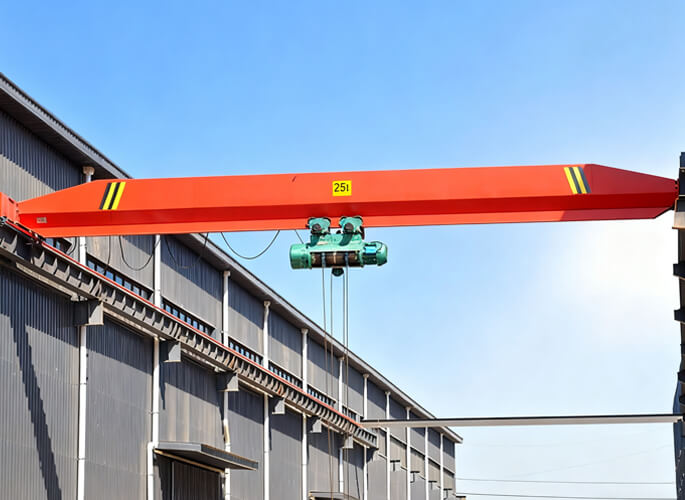

Single girder overhead crane often consists of main beam, end beam, electric hoist, H track, electric part and control system. The hoist of single girder overhead crane often goes with CD, MD electric hoist or low headroom electric hoist, which comprises into different types of single girder cranes.

Send email Get Quote Now Catalogue Download

Product description

Technical Parameters

Company Introduction

Product description

Single girder electric hoist overhead crane often consists of main beam, end beam, electric hoist, H track, electric part and control system. The hoist of single girder overhead crane often goes with CD, MD electric hoist or low headroom electric hoist, which comprises into different types of single girder cranes.
Single girder bridge crane is mainly divided into LD electric single girder overhead crane, LX single girder suspension overhead crane, LB anti-explosion single girder overhead crane, LDY metallurgy overhead crane single girder, SL single beam overhead crane and so on.

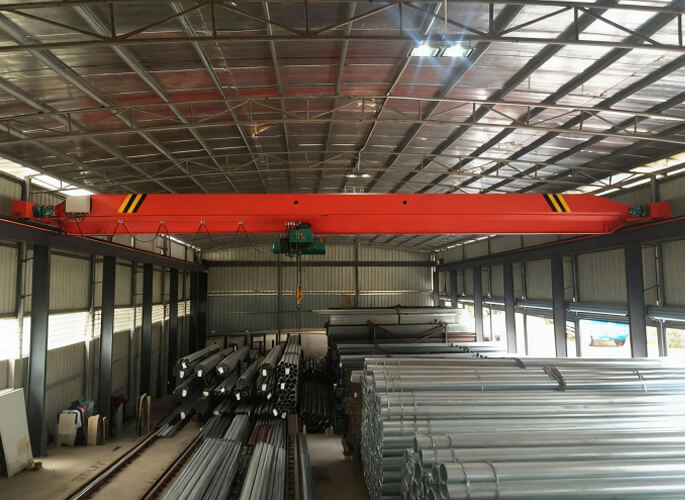

Single girder bridge crane is generally used in machinery manufacturing plant, metallurgical plant, petroleum station, ports, railway, civil aviation, power plant, paper mill, building materials, electronics industries, workshop, warehouse, yard and so on. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

The capacity:1-30ton
The span : 7.5-31.5m
The working grade : A3-A5
The working temperature:-25℃ to 40℃

Technical Parameters

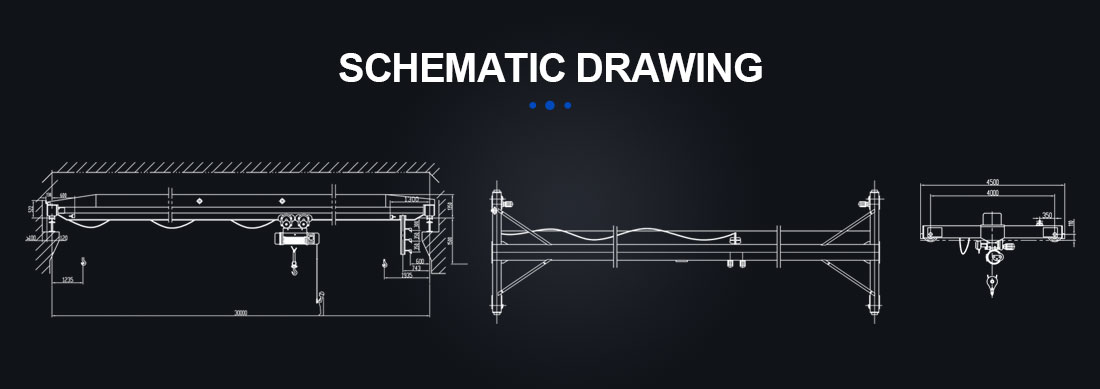

single girder overhead crane schematic drawing

Item	Unit	Result
Lifting capacity	ton	1-30ton
Working grade		A3-A5
Span	m	7.5-31.5m
Working environment temperature	°C	-25~40
working speed	m/min	20-75
lifting speed	m/min	8/0.8(7/0.7) 3.5(3.5/0.35) 8(7)
lifting height	H(m)	6 9 12 18 24 30
travelling speed	m/min	20 30
power source		three-phase 380V 50HZ

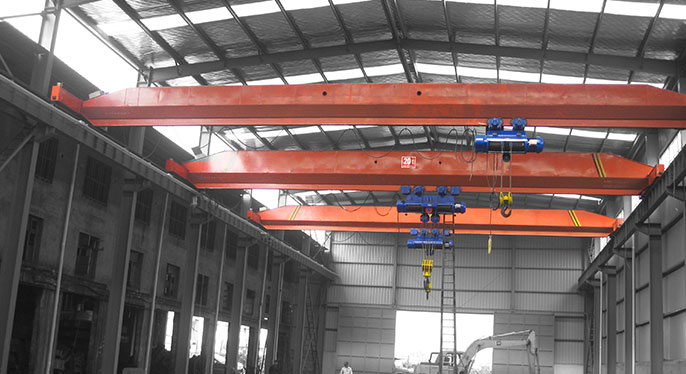

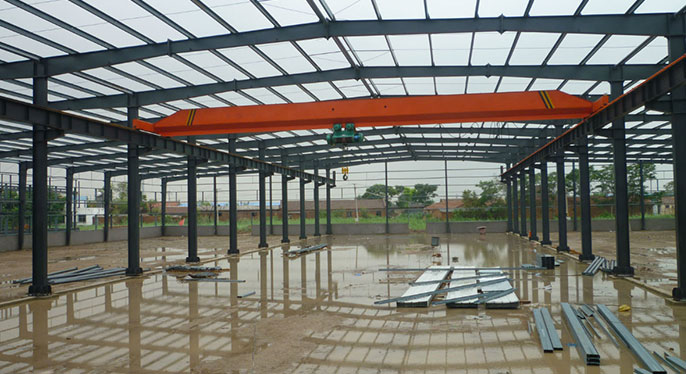

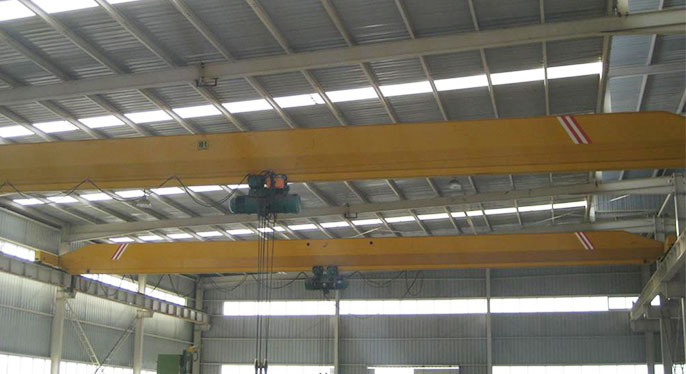

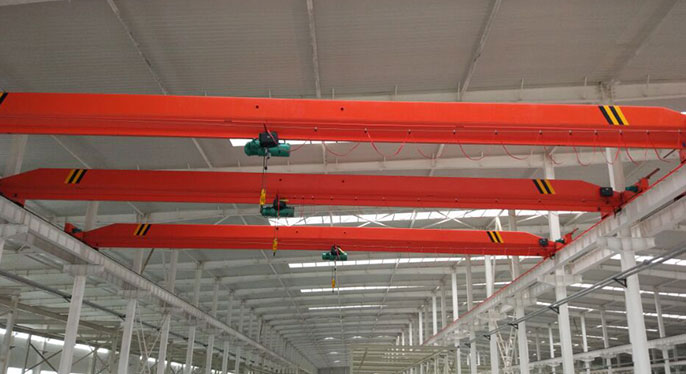

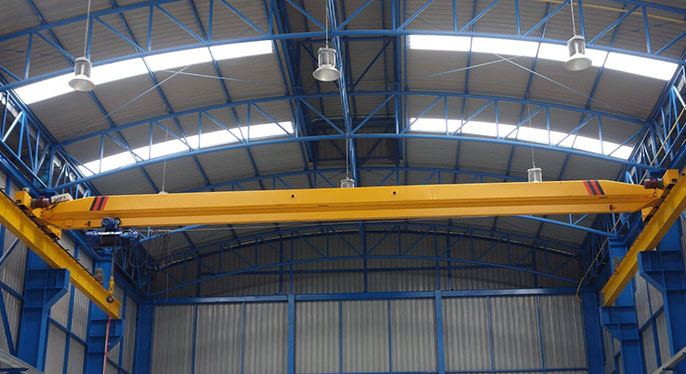

single girder overhead crane application

Advantages

The trust of more than 1 million enterprises in the world covers dozens of countries such as the United States, Russia, South Korea, Saudi Arabia, The United Arab Emirates, Ukraine, Poland, Vietnam and Indonesia.

Factory inspection

Third party testing

Company Introduction


Integrity and innovation		Quality and service
HY Crane always adhere to the concept of integrity and innovation. Integrity makes the company lay a solid foundation and earn good reputation. Innovation is the inspiration that drives us to develop better and be a world class company.		HY Crane owns its own technology and expertised engineer with abundant experience. We are also equipped with advanced automated machines to improve the quality of our product. Quality and service is always our core competence.

Five years warranty

Free distribution of wearing parts

Provide assemble videos before shipment

Techincal support and field installation
