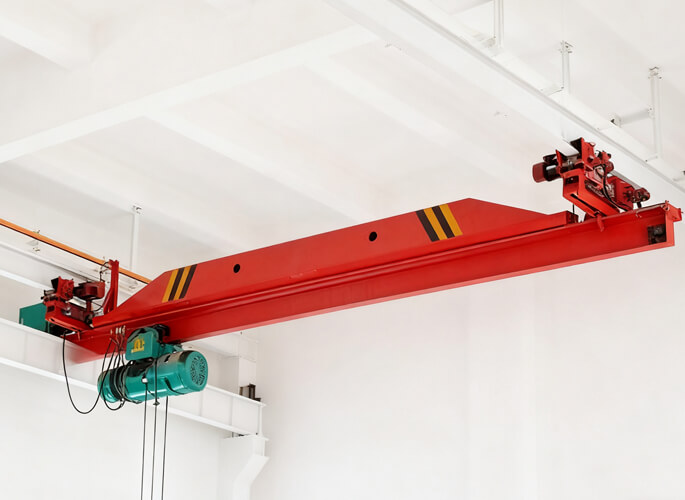

overhead travelling crane

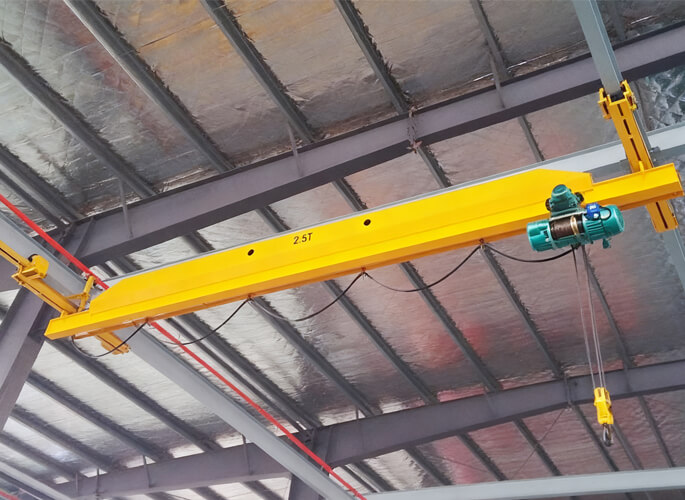

overhead crane for sale

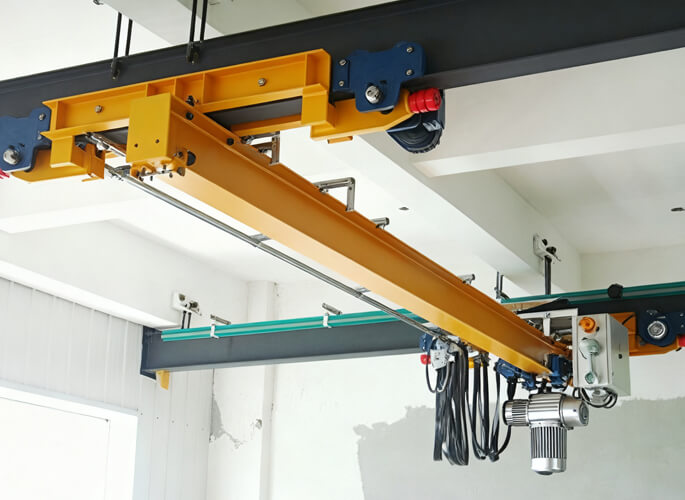

overhead bridge crane
bridge crane
overhead travelling crane
overhead crane for sale
overhead bridge crane

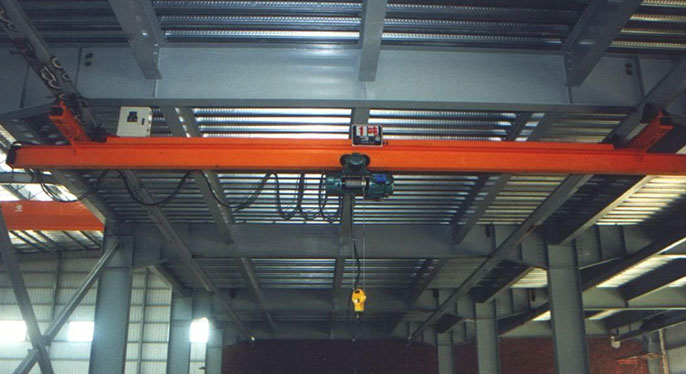

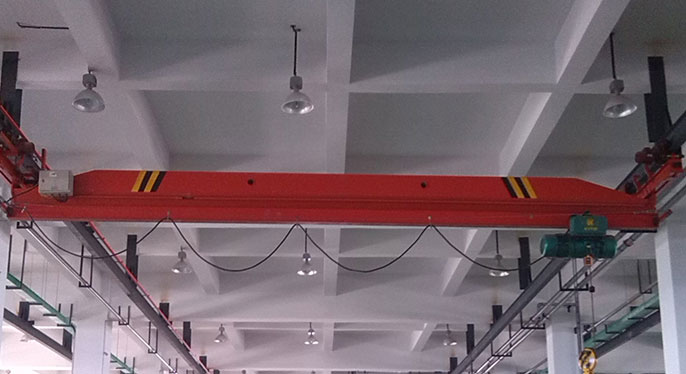

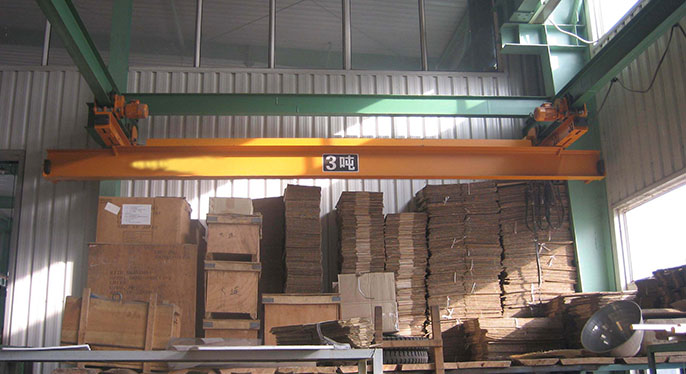

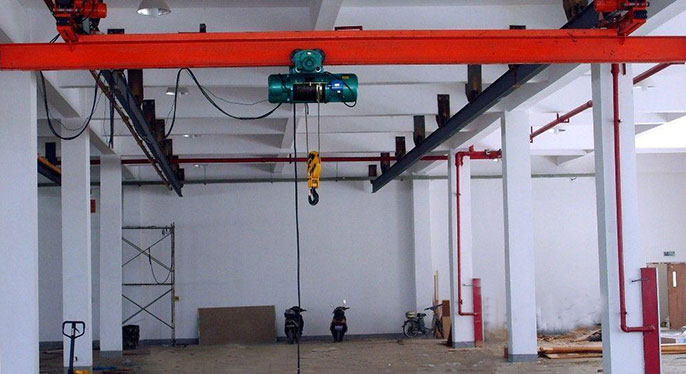

Suspension overhead crane

The capacity:
0.5-5ton
The span:
3-16m
Working grade :
A3-A5
overhead crane often works together with CD1 or MD1 electric hoist, which is a kind of track lifting device, and it is often used in the assembly workshop, warehouse, caves and other places. Single girder suspension crane often has lower lifting capacity and height, which is especially suitable for small construction works. The main girder steel has high hardness, which has strong impact resistance and high quality.
Product description
Technical Parameters
Company Introduction
Product description

Single girder suspension overhead crane often works together with CD1 or MD1 electric hoist, which is a kind of track lifting device, and it is often used in the assembly workshop, warehouse, caves and other places. Single girder suspension crane often has lower lifting capacity and height, which is especially suitable for small construction works. The main girder steel has high hardness, which has strong impact resistance and high quality.

Single girder suspension overhead crane moves along the main beam horizontally and vertically, and the operation is pretty smooth, reliable and safe. The working span is often ranges from 3 to 16 meters, and it belongs intermediate working class, which can be operated by wire and wireless control. Certain cantilevers can be added with the condition of workshops or personal demand.suspension overhead crane is prohibited to use the equipment at combustible, explosive or corrosive environment.


The capacity: 0.5-5ton

The span : 3-16m

The working grade : A3-A5

The working temperature:-25℃ to 40℃


main girder of single girder overhead crane

main girder

1.with strong box type and standard camber    2.there will have reinforcement plate inside the main girder

crane end beam

1.uses rectangular tube manufacturing module 2.buffer motor drive 3.with roller bearings and permanent iubrication

end beam of single girder overhead crane
hook of single girder overhead crane

crane hook

1.material:DG20,16Mn,20MnSi,30MnSi   2.grade:m,p,t   3.capacity:0.5-5t

remote controller

1.apollo,HBC,WICONTEK,telecrane   2.2/4/6/8/10/12keys for choosing   3.voltage:as required

remote controller of single girder overhead crane
motor of single girder overhead crane

crane motor

1.YZR,YZP are all provided   2.power:1.8-280Kw   3.number of pole-pairs:4,6,8,10

reducer

1.type:250,350,400,500,650,750,850,1000         2.ratio:8.23-317.28

reducer of single girder overhead crane
Technical Parameters
Item Unit Result
Lifting capacity ton 0.5-5ton
Working grade   A3-A5
Span m 3-16m
Working environment temperature °C -25~40
working speed m/min 20      30
lifting speed m/min 8    8/0.8
lifting height H(m) 6  9  12  18  24  30
travelling speed m/min 20      30
power source   three-phase 380V 50HZ
